OBO Bettermann 1187520 Clamp 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Clamping range 22..28 mm
- For pipes (metric): 28
- Max. Number of cables: 1
- Material of the clamp: Stainless steel
- Material quality of the clamp: Stainless steel 304 (1.4301)
- Surface protection clamp: Untreated
- Material of tub: Stainless steel
- Material quality of the tray: Stainless steel 304 (1.4301)
- Surface protection trough: Untreated
- Screw material: Stainless steel
- Material quality of screw: Stainless steel 304 (1.4301)
- Surface protection screw: Untreated
- With counter-tray: No.
- Mounting type: Flat profile
- Halogen-free: Yes
- Product type
Clamp
- Component
Cable mount
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162354 OBO Bettermann 1187520 Clamp 1 pc(s)
Description

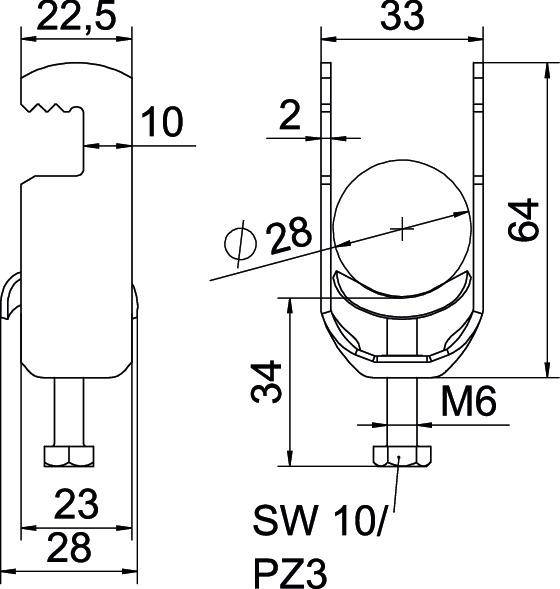

Bracket clamp with F-base, metal pressure tub with rounded edges for cable protection. For vertical and horizontal mounting of 1 individual cables on flat tracks. With 1-common screw at press tray, universal hexagonal screw head SW10, with slit and cross-head. Suitable for interior and exterior installation. The use of a counter tray is recommended.
