OBO Bettermann 2016180 KL-T 01-04 Terminal flexible: - fixed: 1-4 mm² Number of pins: 5 10 pc(s) Grey
EAN:
Part number:
Item no:
Product type
Terminal
Cross section (inflexible) (min.)
1 mm²
Cross section (inflexible) (max.)
4 mm²
Number of pins
5
Nominal current - rounded value
32 A
Technical specifications
- Explosion tested design "Ex e": No
- Design of electrical connection 1: screw terminals.
- Connection position: lateral
- Number of clamping points each pole: 1
- Installation type: Other
- Material of the insulating body: thermoplastic
- Width/spacing: 20 mm
- Height at niedrigstbauender Installation type: 28 mm
- End plate required: No
- Transparent: no
- Product type
Terminal
- Cross section (inflexible) (min.)
1 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
5
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
10 pc(s)

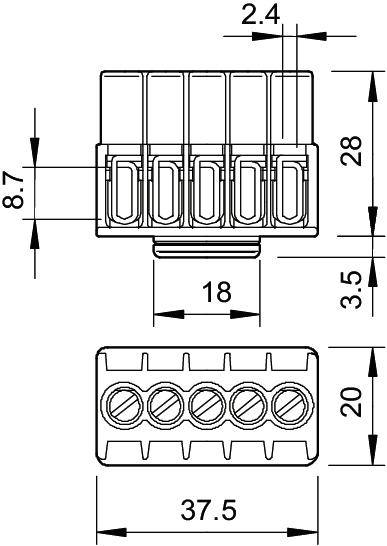

- Dim
(L x W) 37.5 mm x 20 mm
- Manufacturer part #
2016180
- Connection
Screws
- Insulation material
Thermoplastic
- Contact material
Steel zinc-plated
- Nominal voltage
400 V
- Width
20 mm
- Length
37.5 mm
- Pitch
20 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958679 OBO Bettermann 2016180 KL-T 01-04 Terminal flexible: - fixed: 1-4 mm² Number of pins: 5 10 pc(s) Grey
Description
Terminal bodies and screws steel, galvanised and transparent passivated, nominal cross-section 1 ÷ 4 mm², rated voltage 400 V, 5-pin, with socket terminals max. connectable cross-sections each clamping point 4, 5 or 6 x 1 mm² x1,5mm² x2,5mm².
