OBO Bettermann 2016185 KL-T 02-06 Terminal flexible: - fixed: 1.5-6 mm² Number of pins: 5 1 pc(s) Grey
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Cross section (inflexible) (min.)
1.5 mm²
Cross section (inflexible) (max.)
6 mm²
Number of pins
5
Technical specifications
- Explosion-tested version "Ex e": No.
- Design electrical connection 1: Screw connection
- Connection position: Lateral
- Number of terminal points per pole: 1
- Mounting type: Other
- Material of the insulating body: Thermoplastic
- Height at low installation type: 35 mm
- Cover plate required: No.
- Transparent: No.
- Packaging type
Piece
- Product type
Terminal
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
5
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)

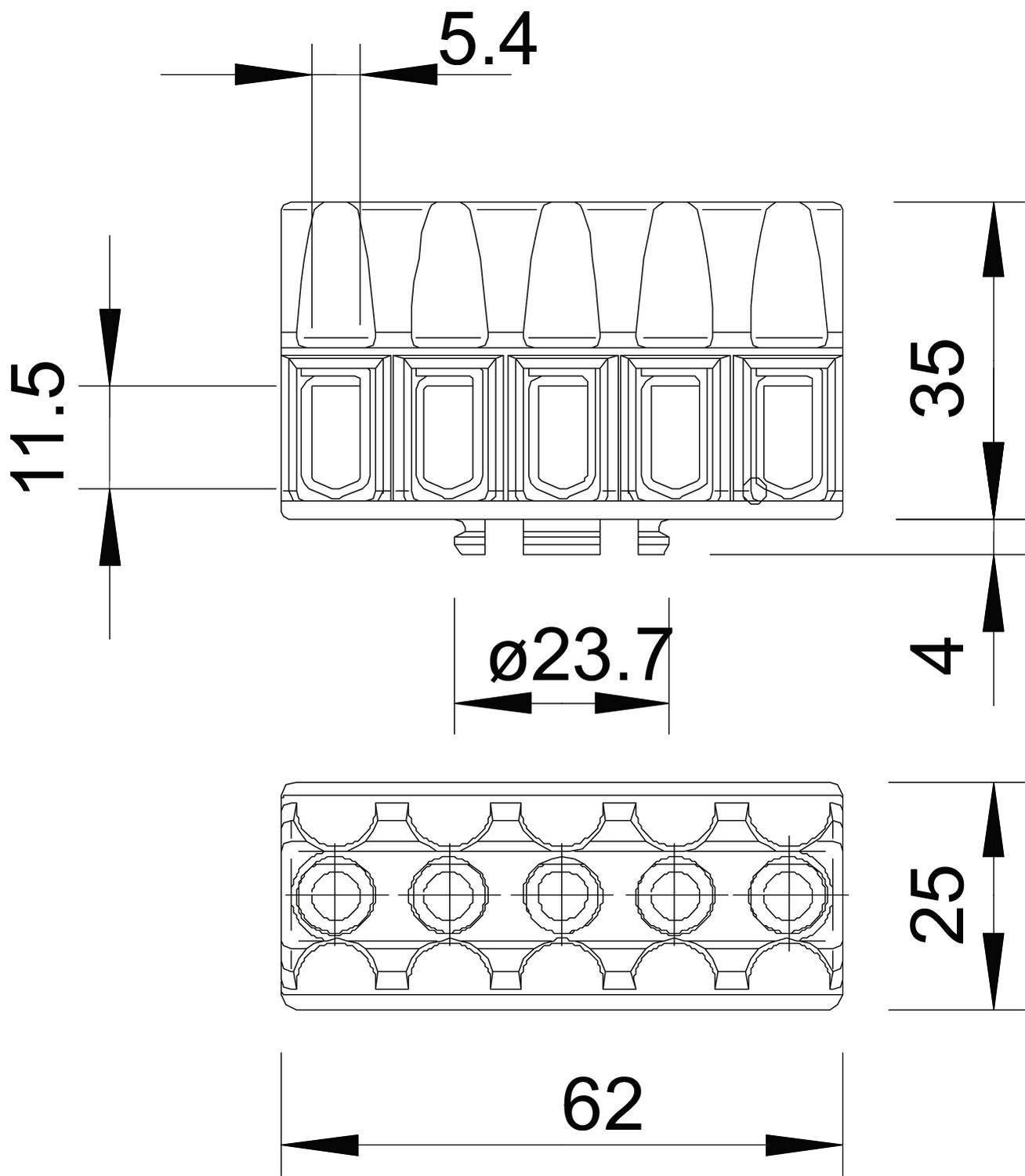

- Dim
(L x W) 62 mm x 25 mm
- Manufacturer part #
2016185
- Connection
Screws
- Insulation material
Thermoplastic
- Contact material
Steel
- Nominal voltage
400 V
- Width
25 mm
- Length
62 mm
- Pitch
25 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332463 OBO Bettermann 2016185 KL-T 02-06 Terminal flexible: - fixed: 1.5-6 mm² Number of pins: 5 1 pc(s) Grey
Description
Clamping body and steel screws, galvanically galvanized and transparent passivated, nominal cross-section 1.5 ÷ 6 mm², nominal voltage 400 V, 5-pole, with socket terminals max. connectable cross-sections per terminal point: 3x6mm², 4x4mm² or 6x2.5mm².
