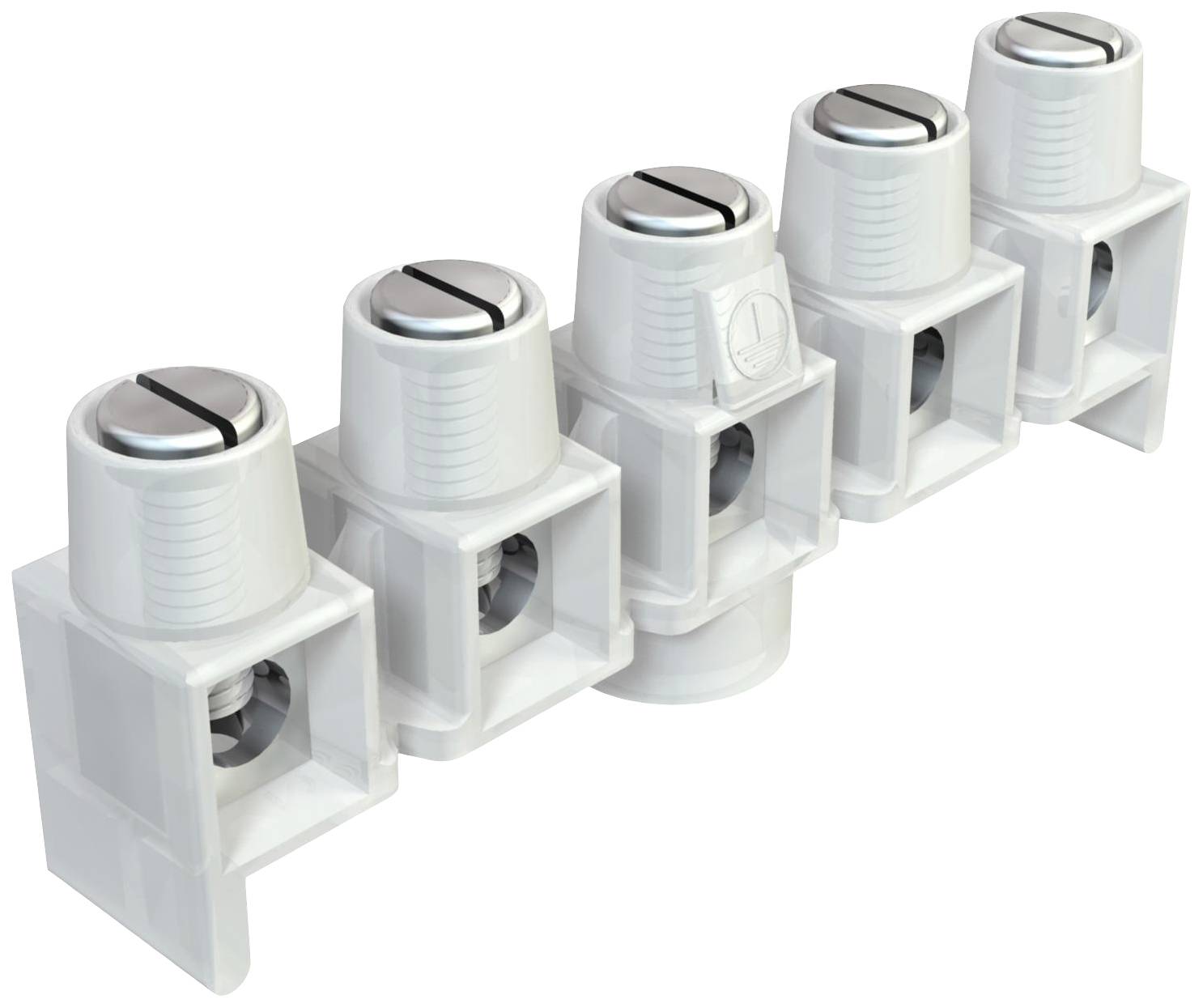

OBO Bettermann 2017342 689 Terminal flexible: - fixed: - Number of pins: 5 50 pc(s) Grey
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Cross section (flexible) (min.)
0.8 mm²
Cross section (flexible) (max.)
2.5 mm²
Number of pins
5
Technical specifications
- Explosion tested design "Ex e": No
- Connectable conductor cross-section fine without end sleeve: 0.8. 2.5 mm²
- Design of electrical connection 1: screw terminals.
- Connection position: lateral
- Number of clamping points each pole: 1
- Installation type: Other
- Material of the insulating body: other
- Width/spacing: 11 mm
- Height at niedrigstbauender fixings: 21.8 mm
- End plate required: No
- Transparent: no
- Packaging type
Piece
- Product type
Terminal
- Cross section (flexible) (min.)
0.8 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Number of pins
5
- Factory colour
Grey
- Content
50 pc(s)

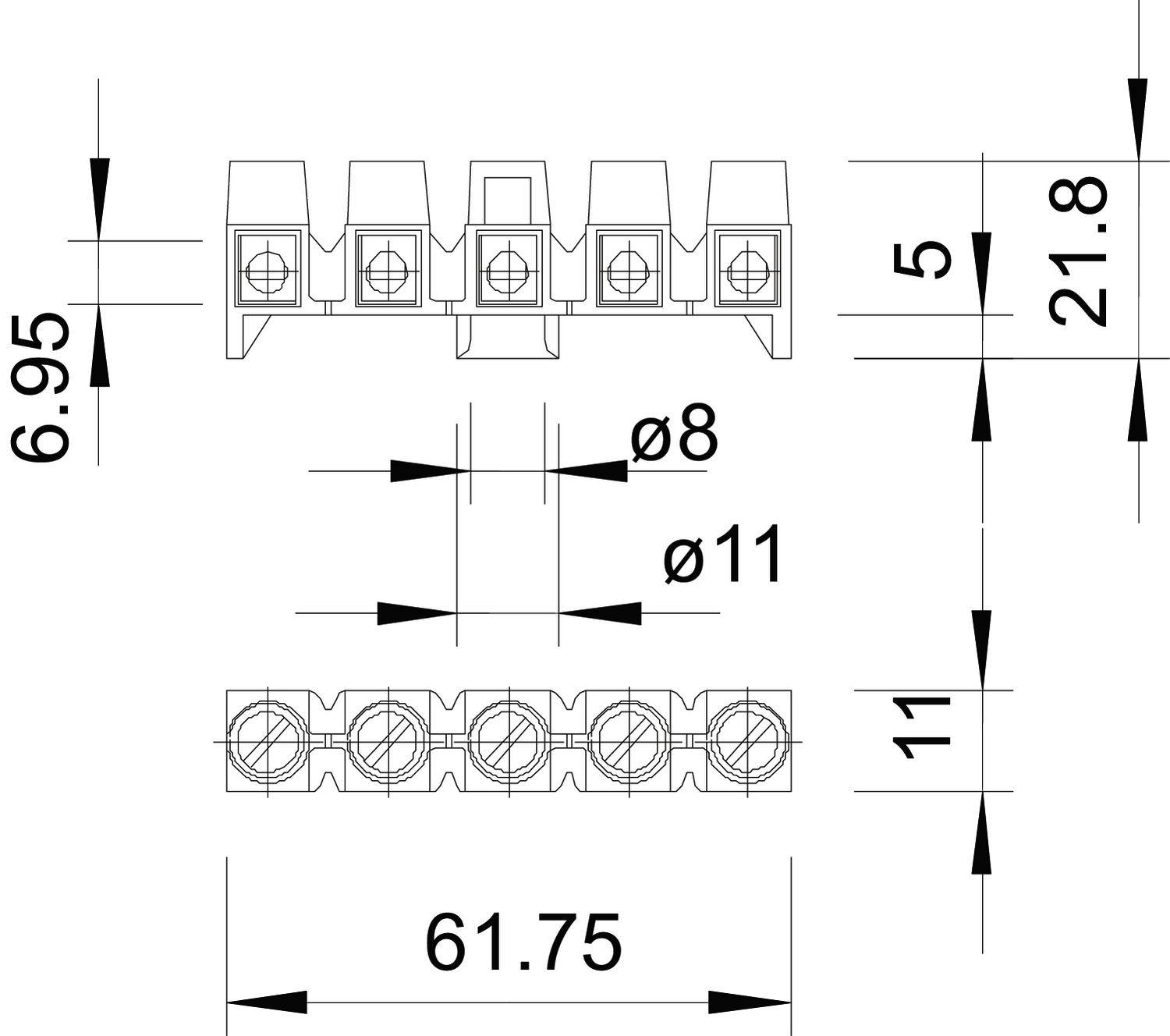

- Dim
(L x W) 61.75 mm x 11 mm
- Manufacturer part #
2017342
- Connection
Screws
- Contact material
Brass nickel plated
- Nominal voltage
660 V
- Width
11 mm
- Length
61.75 mm
- Pitch
11 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960748 OBO Bettermann 2017342 689 Terminal flexible: - fixed: - Number of pins: 5 50 pc(s) Grey
Description
Terminal bodies brass, nickel-plated, Screws steel, galvanised and transparent passivated, nominal cross-section 0.8 - 2.5 mm², rated voltage 660 V, 5-pole, with socket terminals, max. connectable cross-sections each clamping point: 4 x 2.5 mm², 5 x 1.5 mm² or 6x 1 mm², not required poles can be used as a single terminal disconnected and.
