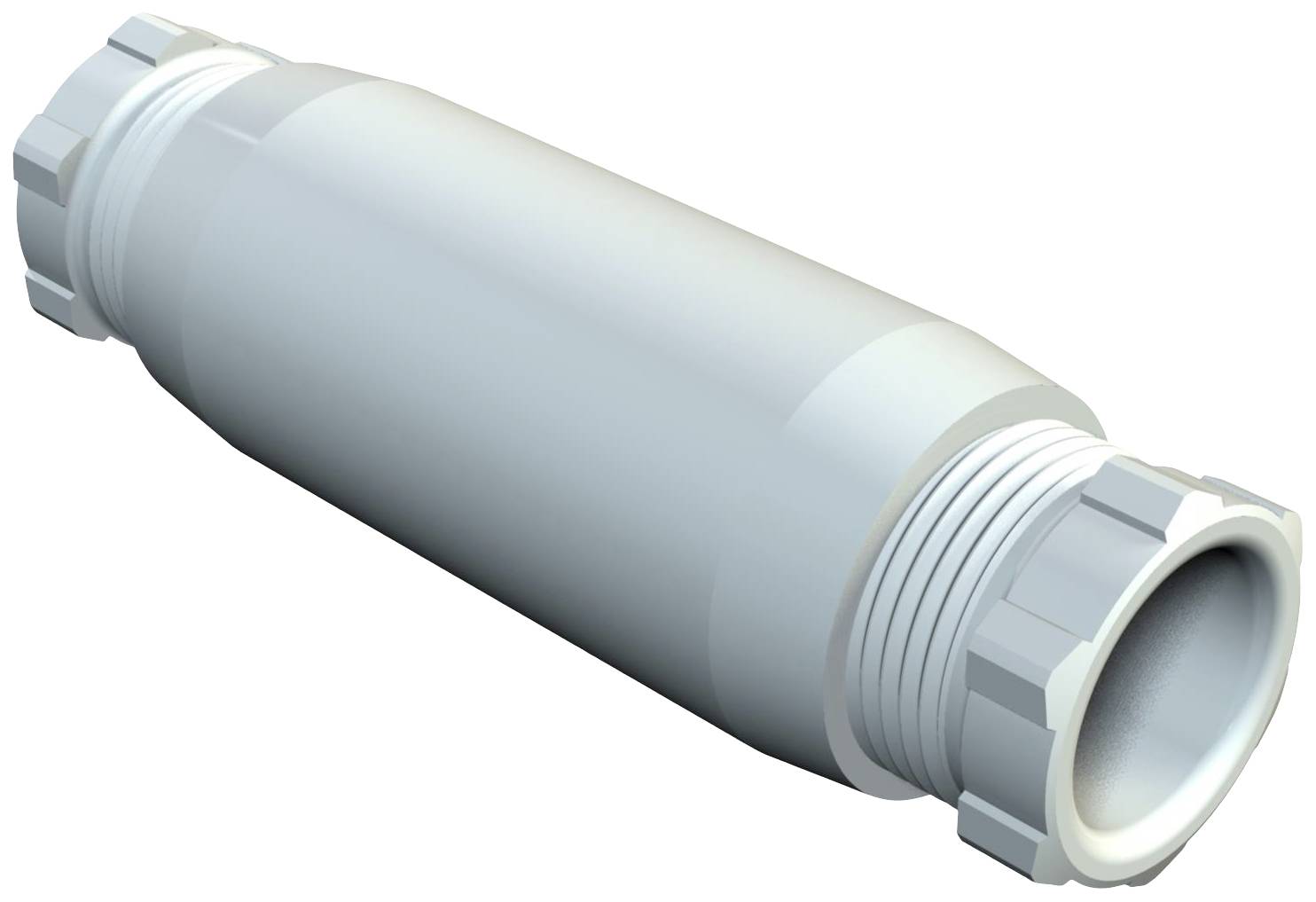

OBO Bettermann 2022028 117 5x2.5 Cable sleeve Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable sleeve
Min. cross section
1 mm²
max. cross section
2.5 mm²
Content
1 pc(s)
Manufacturer part #
2022028
Technical specifications
- For the connection of paper with plastic insulated cables: no
- Number of conductor: 5
- Nominal cable cross-section: 1..2.5 mm²
- Mining approval: no
- With concentric shielding: no
- Suitable for: other
- Connection accessories included: screw connectors
- Halogen-free: yes
- Protection class: IP54
- Nominal voltage: 660 V
- Product type
Cable sleeve
- Min. cross section
1 mm²
- max. cross section
2.5 mm²
- Content
1 pc(s)
- Manufacturer part #
2022028
- Factory colour
Light grey
- Type
117 5x2.5
- Suitable for
Other
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961316 OBO Bettermann 2022028 117 5x2.5 Cable sleeve Content: 1 pc(s)
Description
Protection type, rated voltage 660 V. sleeves are determined in accordance with VDE only for fixed installation! 117/2.5 VDE/PG 16: Nominal cross-section 2.5 mm², with 5-pin terminal 2.5 mm² and cable inserts with strain relief for cable diameters 9-14 mm. 117/6 VDE/PG21: Nominal cross-section 6 mm², with 5-pin terminal insert 6 mm² and cable inserts with strain relief for cable diameter 12-18 mm.
