OBO Bettermann 2055201 70 S Tap terminal flexible: - fixed: - Number of pins: 12 10 pc(s) Multicolour
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Tap terminal
Number of pins
12
Nominal current - rounded value
20 A
Factory colour
Multicolour
Technical specifications
- Explosion tested design "Ex e": No
- Design of electrical connection 1: screw terminals.
- Number of clamping points each pole: 1
- Installation type: direct mounting
- Material of the insulating body: thermoplastic
- Width/spacing: 11 mm
- Height at niedrigstbauender fixings: 17.5 mm
- Length: 129.6 mm
- End plate required: No
- Color: multicolor
- Packaging type
Package
- Product type
Tap terminal
- Number of pins
12
- Factory colour
Multicolour
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Content
10 pc(s)

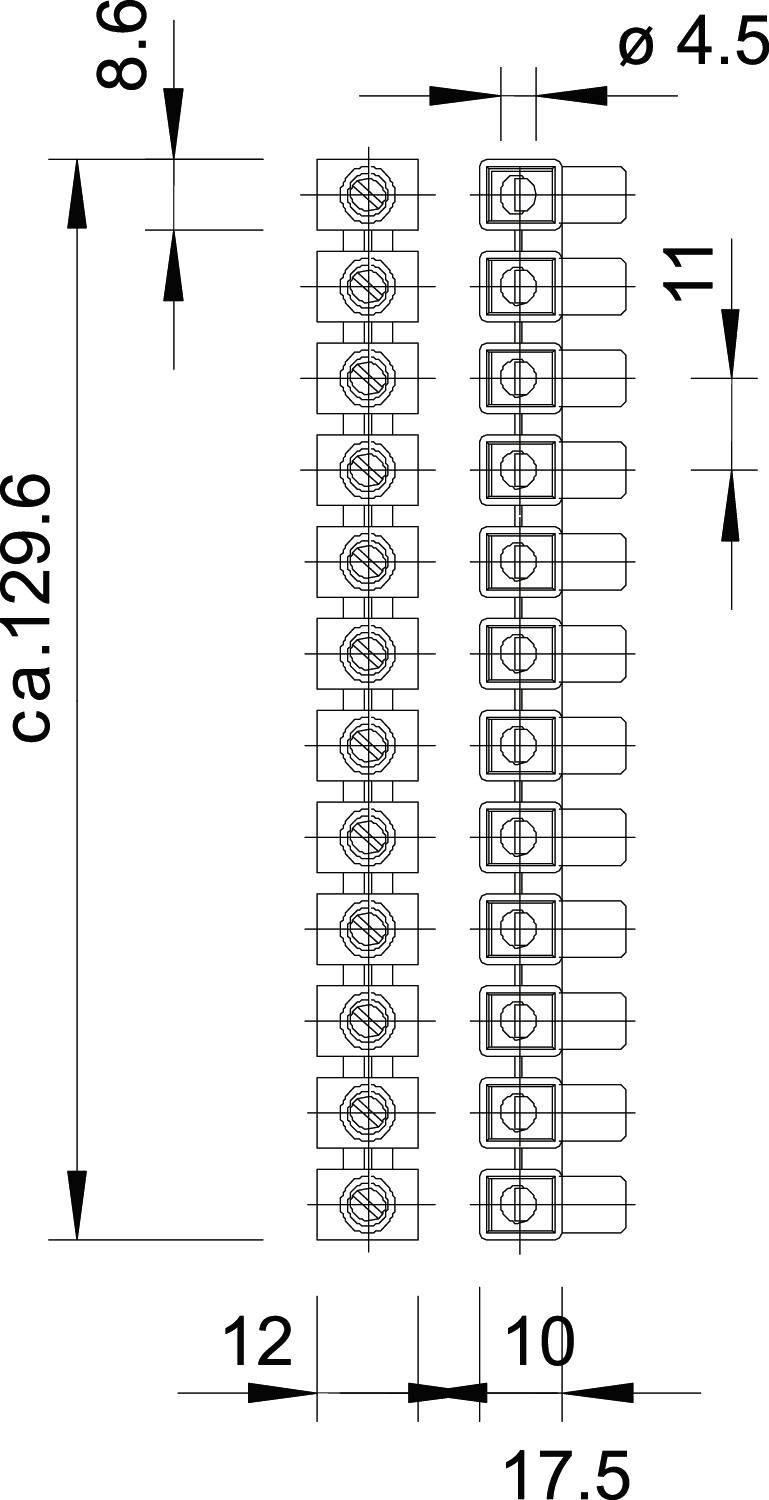

- Dim
(L x W) 129.6 mm x 12 mm
- Manufacturer part #
2055201
- Connection
Screw terminal
- Insulation material
Thermoplastic
- Contact material
Brass
- Nominal voltage
380 V
- Width
12 mm
- Length
129.6 mm
- Pitch
12 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959913 OBO Bettermann 2055201 70 S Tap terminal flexible: - fixed: - Number of pins: 12 10 pc(s) Multicolour
Description

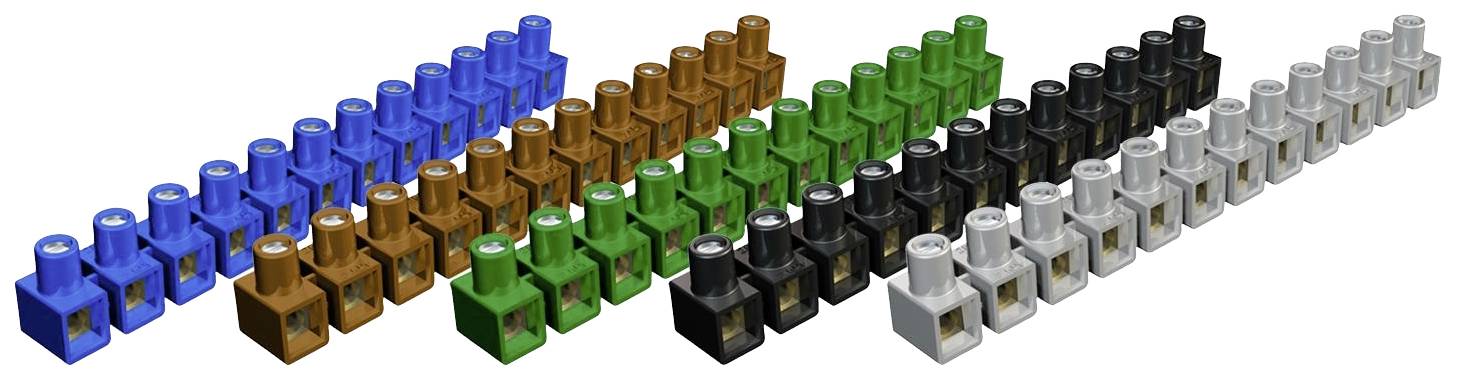

Clamps brass, Screws steel, galvanised and transparent passivated, 12-pin, in single terminals detachable strip, only open on one side. Closed on one side, screws, high-turned, undetachable. Nominal cross-section 2.5 mm² nominal voltage 250 V. Nominal current 24 A max. connectable cross-sections each clamping point: 4 x 2.5 mm², 5 x 1.5 mm² or 6x 1 mm². Supplied in assorted colors: 3 black, 2 blue, 3 yellow-green, 1 brown and gray strips each 1 packaging unit.
