OBO Bettermann 2055503 71 Tap terminal flexible: - fixed: - Number of pins: 10 1 pc(s) Black
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Tap terminal
Number of pins
10
Factory colour
Black
Content
1 pc(s)
Technical specifications
- Explosion tested design "Ex e": No
- Design of electrical connection 1: screw terminals.
- Number of clamping points each pole: 1
- Installation type: direct mounting
- Material of the insulating body: thermoplastic
- Height at niedrigstbauender fixings: 24.8 mm
- End plate required: No
- Packaging type
Piece
- Product type
Tap terminal
- Number of pins
10
- Factory colour
Black
- Content
1 pc(s)

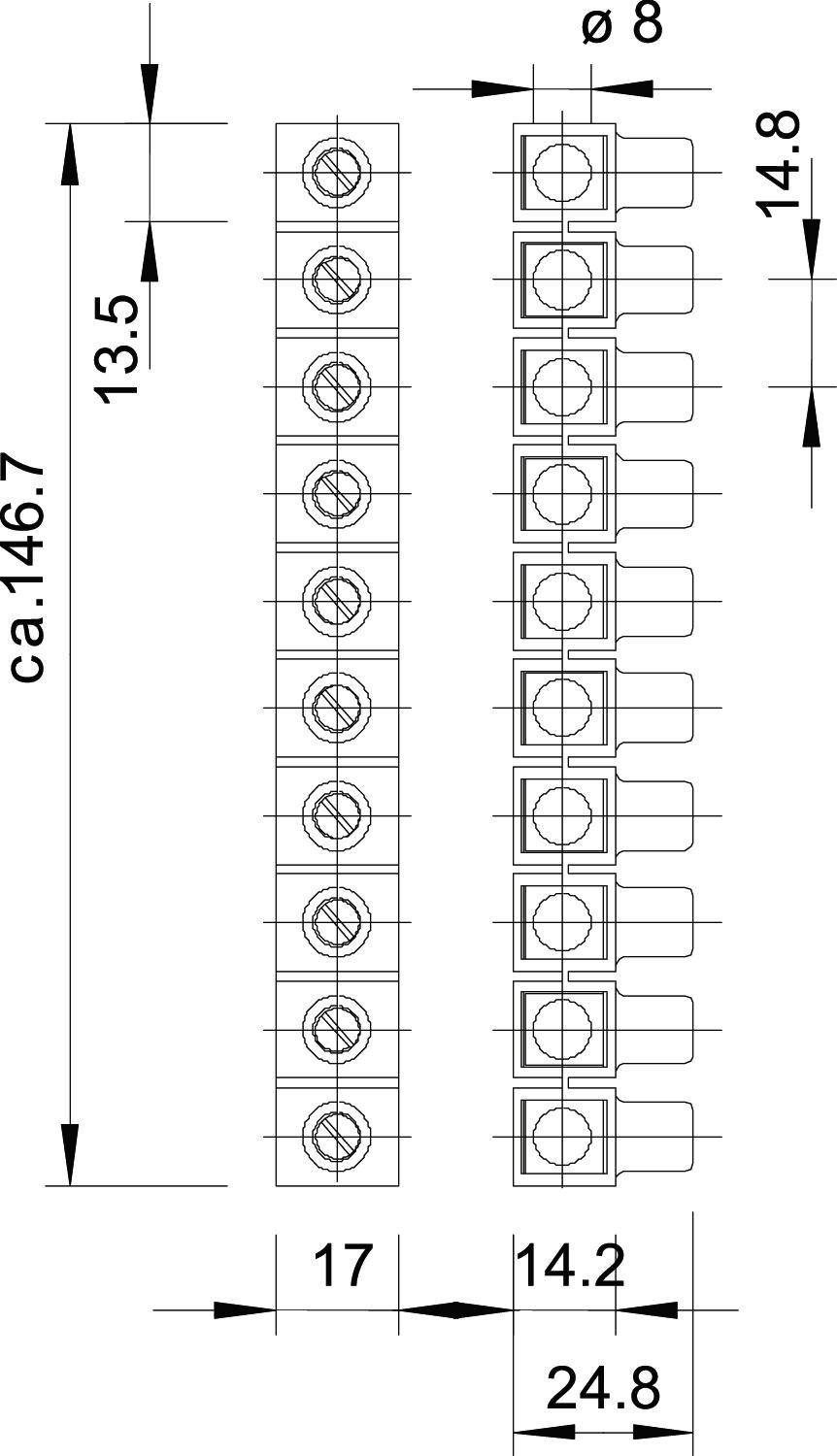

- Dim
(L x W) 146.7 mm x 17 mm
- Manufacturer part #
2055503
- Connection
Screws
- Insulation material
Thermoplastic
- Contact material
Brass
- Nominal voltage
380 V
- Width
17 mm
- Length
146.7 mm
- Pitch
17 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962629 OBO Bettermann 2055503 71 Tap terminal flexible: - fixed: - Number of pins: 10 1 pc(s) Black
Description
Clamps brass, Screws steel, galvanised and transparent passivated, 10-pin, in single terminals detachable strip, on both sides. Screws high-turned, undetachable. Nominal cross-section 10 mm² rated to 380V Max. connectable cross-sections each clamping point: 3 x 10 mm², 4 x 6 mm².
