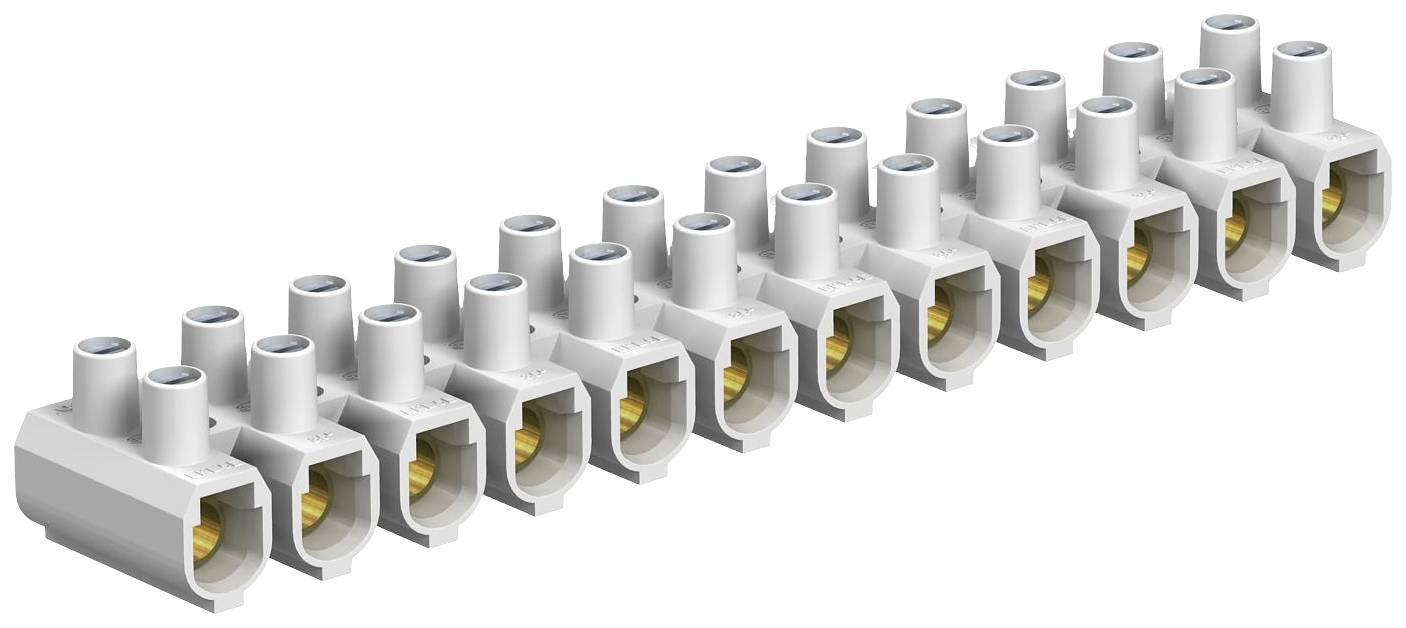

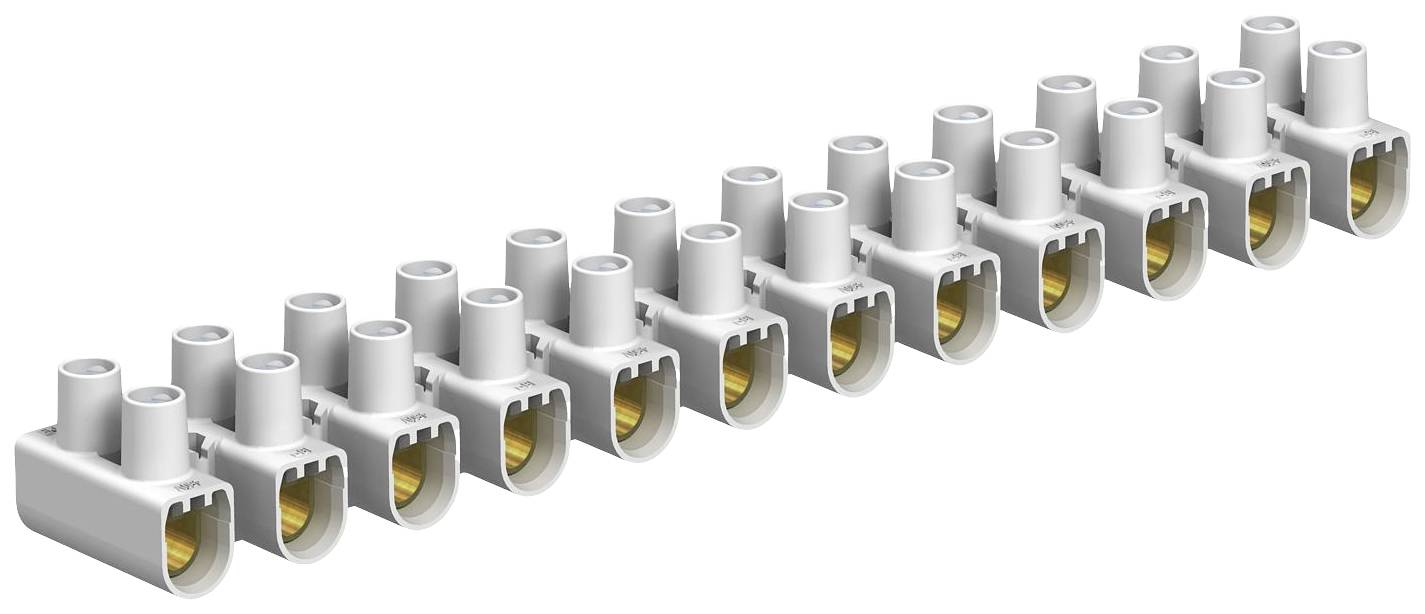

OBO Bettermann 2056550 78 CE WS Serial screw terminal flexible: 16-16 mm² fixed: 16-16 mm² Number of pins: 12 1 pc(s) Wh
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial screw terminal
Cross section (flexible) (min.)
16 mm²
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (min.)
16 mm²
Technical specifications
- Explosion-tested version "Ex e": no.
- Connectable conductor cross-section: Fine strand without wire-end sleeve: 10..10 mm²
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 10..10 mm²
- Design of electrical connection 1: Screw connection
- Design of electrical connection 2: Screw connection
- Number of terminal points per pole: 2
- Mounting type: Direct mounting
- Material of the insulating body: Thermoplastic
- Height with lowest mounting type: 20.5 mm
- Length: 170 mm
- End plate required: no.
- Packaging type
Piece
- Product type
Serial screw terminal
- Cross section (flexible) (min.)
16 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- Number of pins
12
- Factory colour
White
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Content
1 pc(s)

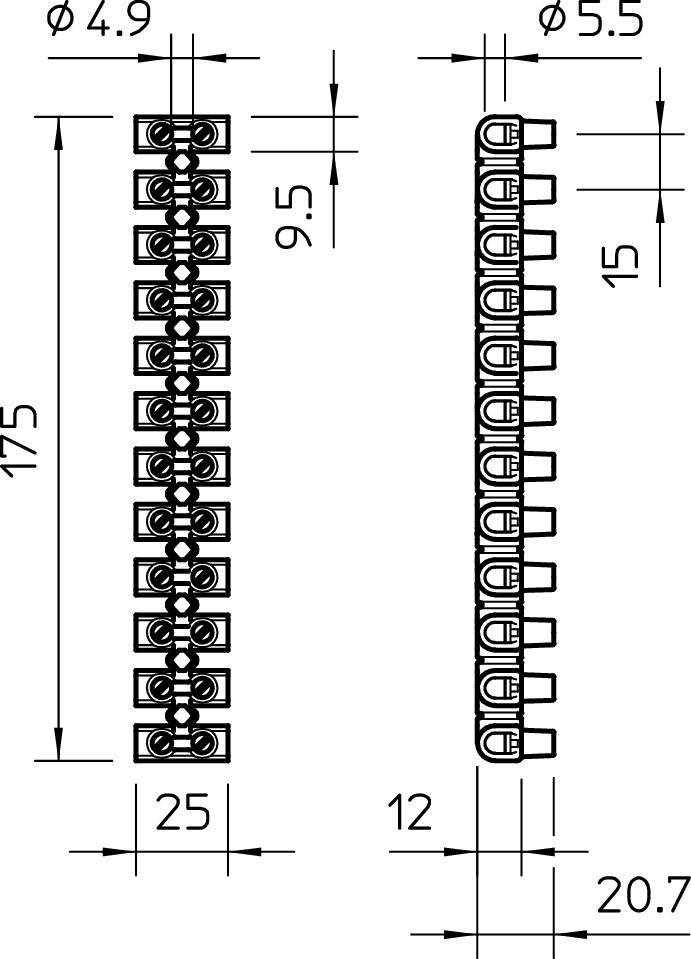

- Dim
(L x W) 170 mm x 25 mm
- Manufacturer part #
2056550
- Connection
Screws
- Insulation material
Thermoplastic
- Contact material
Steel
- Nominal voltage
450 V
- Width
25 mm
- Length
170 mm
- Pitch
25 mm
- Temperature range
-5 to +80 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958574 OBO Bettermann 2056550 78 CE WS Serial screw terminal flexible: 16-16 mm² fixed: 16-16 mm² Number of pins: 12 1 pc(s) Wh
Description
Steel terminals, steel screws, galvanized, 12-pin strips that can be separated in single terminals by "twist'n'pull". Screws turned up, cannot be lost.
