OBO Bettermann 2056585 79 CE SW Serial screw terminal flexible: 25-25 mm² fixed: - Number of pins: 12 10 pc(s) Black
EAN:
Part number:
Item no:
Product type
Serial screw terminal
Cross section (flexible) (min.)
25 mm²
Cross section (flexible) (max.)
25 mm²
Number of pins
12
Nominal current - rounded value
101 A
Technical specifications
- Explosion tested design "Ex e": No
- Connectable conductor cross-section stranded without end sleeve: 16..16 mm²
- Design of electrical connection 1: screw terminals.
- Design of electrical connection 2: screw terminals.
- Number of clamping points each pole: 2
- Installation type: direct mounting
- Material of the insulating body: thermoplastic
- Height at niedrigstbauender Installation type: 28 mm
- Length: 187 mm
- End plate required: No
- Product type
Serial screw terminal
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
25 mm²
- Number of pins
12
- Factory colour
Black
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Content
10 pc(s)

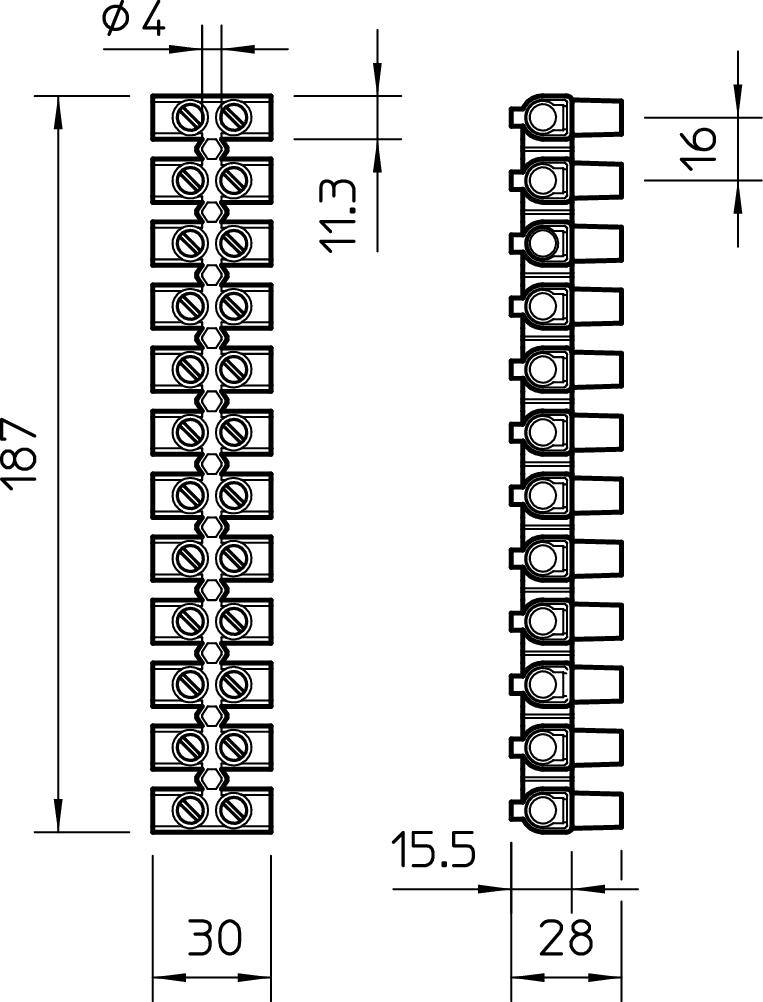

- Dim
(L x W) 187 mm x 30 mm
- Manufacturer part #
2056585
- Connection
Screws
- Insulation material
Thermoplastic
- Contact material
Brass
- Nominal voltage
750 V
- Width
30 mm
- Length
187 mm
- Pitch
30 mm
- Temperature range
-5 to +80 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965452 OBO Bettermann 2056585 79 CE SW Serial screw terminal flexible: 25-25 mm² fixed: - Number of pins: 12 10 pc(s) Black
Description
Clamps brass, Screws steel, galvanised and transparent passivated, 12-pin, in single terminals detachable strips. Screws high-turned, undetachable.
