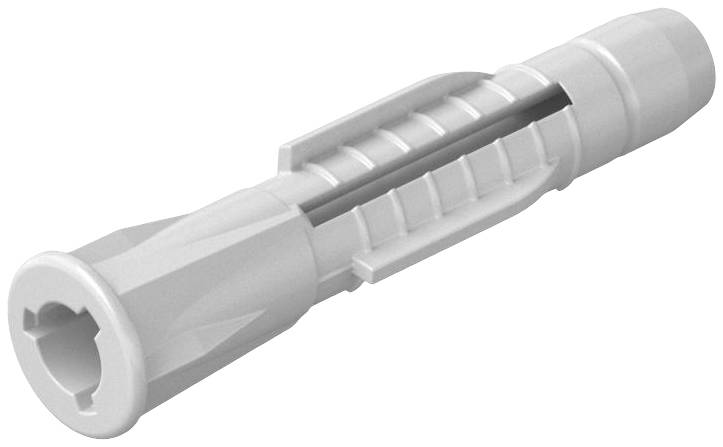

OBO Bettermann 2348120 910 AZK 5x31 Universal dowel 30 mm 5 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
5 mm
- Product type
Universal dowel
- Material
Plastic
- Length
30 mm

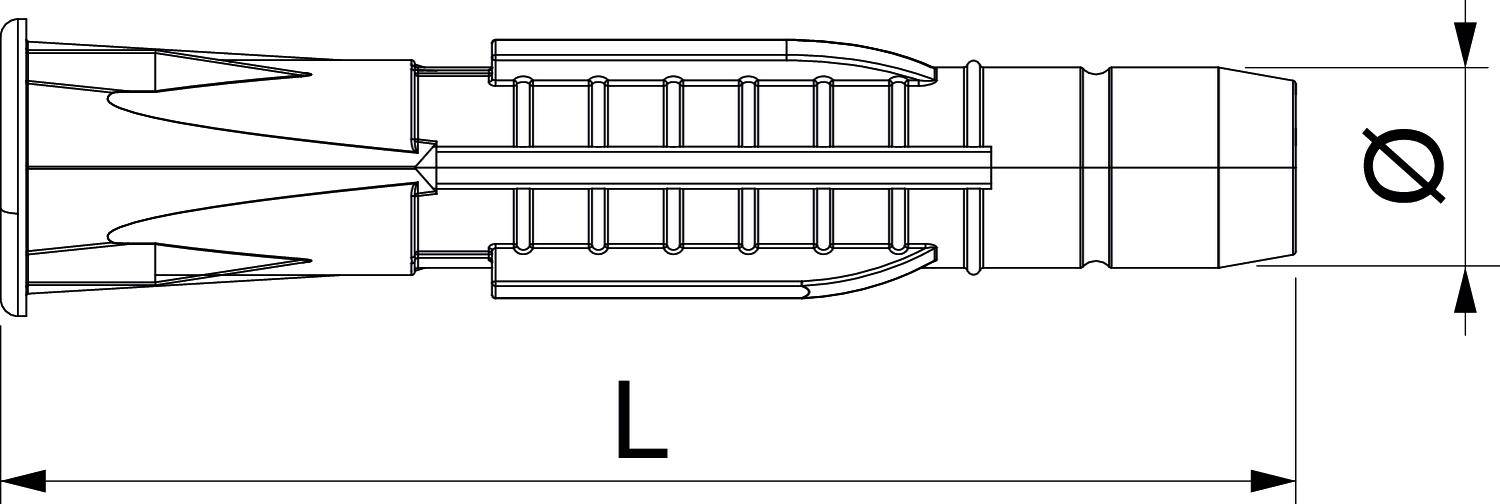

- Dim
(Ø x L) 5 mm x 30 mm
- Suitable for
Concrete
- Content
100 pc(s)
- Outside Ø
5 mm
- Inside diameter
3 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2866698 OBO Bettermann 2348120 910 AZK 5x31 Universal dowel 30 mm 5 mm 100 pc(s)
Description
Also suitable as cavity plugs, with collar against slipping 3 fins to capture the torque. Minimum screw length required = plug length + component thickness + 1 x screw Ø. The extraction value applies to wood screws with the largest screw diameter in the concrete of class B25. Our safety value Recommendation: 5-fold
