OBO Bettermann 3498393 N-K 6-5/44 A4 Nail plug 44 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = Impact
- Mounting device = other
- Surface = untreated
- Drill hole diameter = 6 mm
- Length = 44 mm
- Min. Drill hole depth = 40 mm
- With approval = Yes
- Self-drilling = No
- (Ø)
6 mm
- Product type
Nail plug
- Material
Stainless steel
- Length
44 mm
- Screw diameter
6 mm

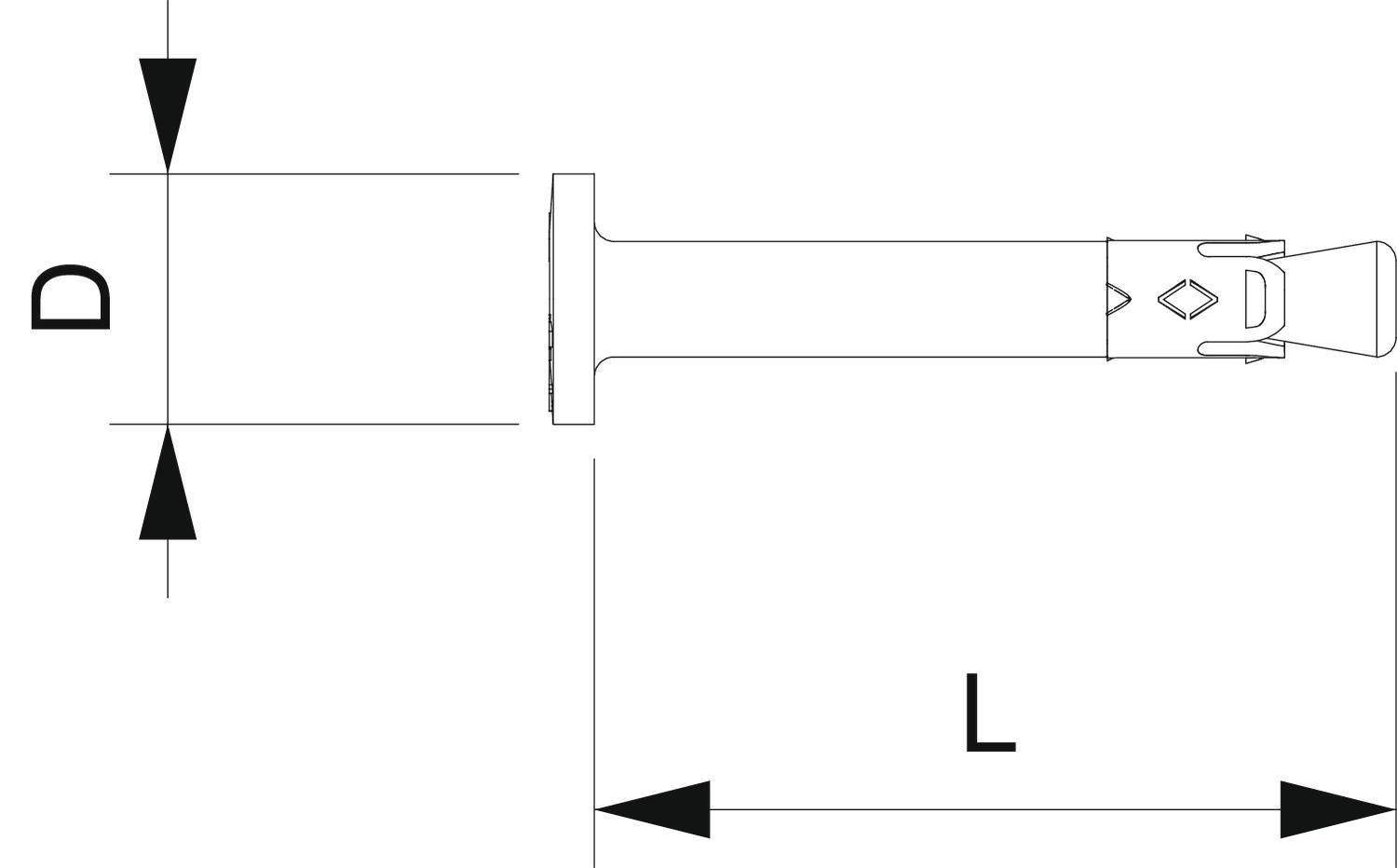

- Dim
(Ø x L) 6 mm x 44 mm
- Suitable for
Concrete
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956377 OBO Bettermann 3498393 N-K 6-5/44 A4 Nail plug 44 mm 1 pc(s)
Description
The Nagelganker N can be used for multiple fixtures not wear systems in indoor and outdoor areas in torn and cracked concrete and combines the advantages of a bolt anchor with an even easier installation. The nail plug needs only into the drill hole is to be stapled. When the load spread to the nail plug independently and anchored in the drill hole. European Technical Approval ETA -11/0240, including characteristic values under fire exposure to fire resistance duration R120.
