Name: OBO Bettermann 5003032 213 2500 Ground spike 1 pc(s)
Brand: OBO Bettermann
SKU: 3159930

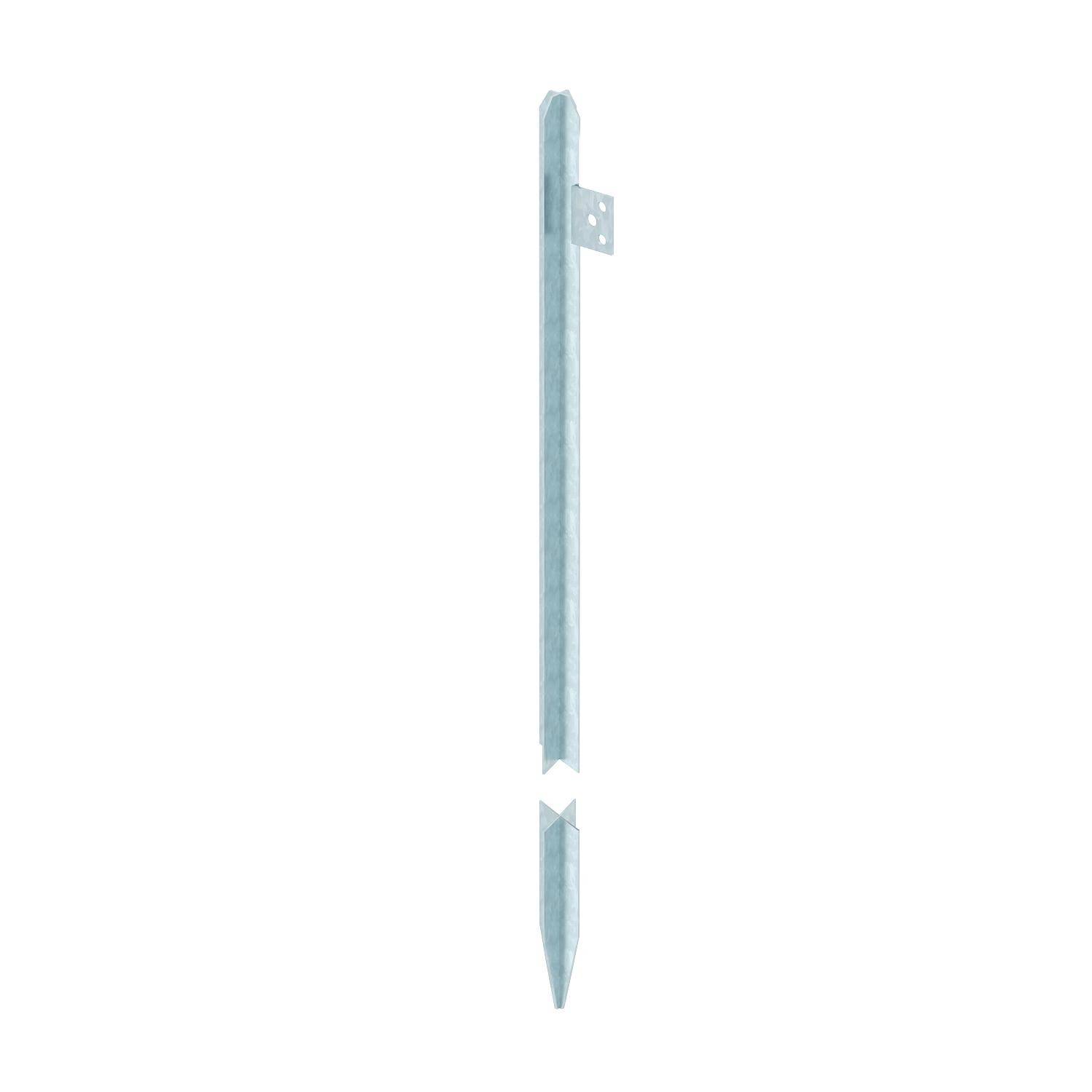

A single, silver metal post with a tapered end and small holes that could be used for fastening.

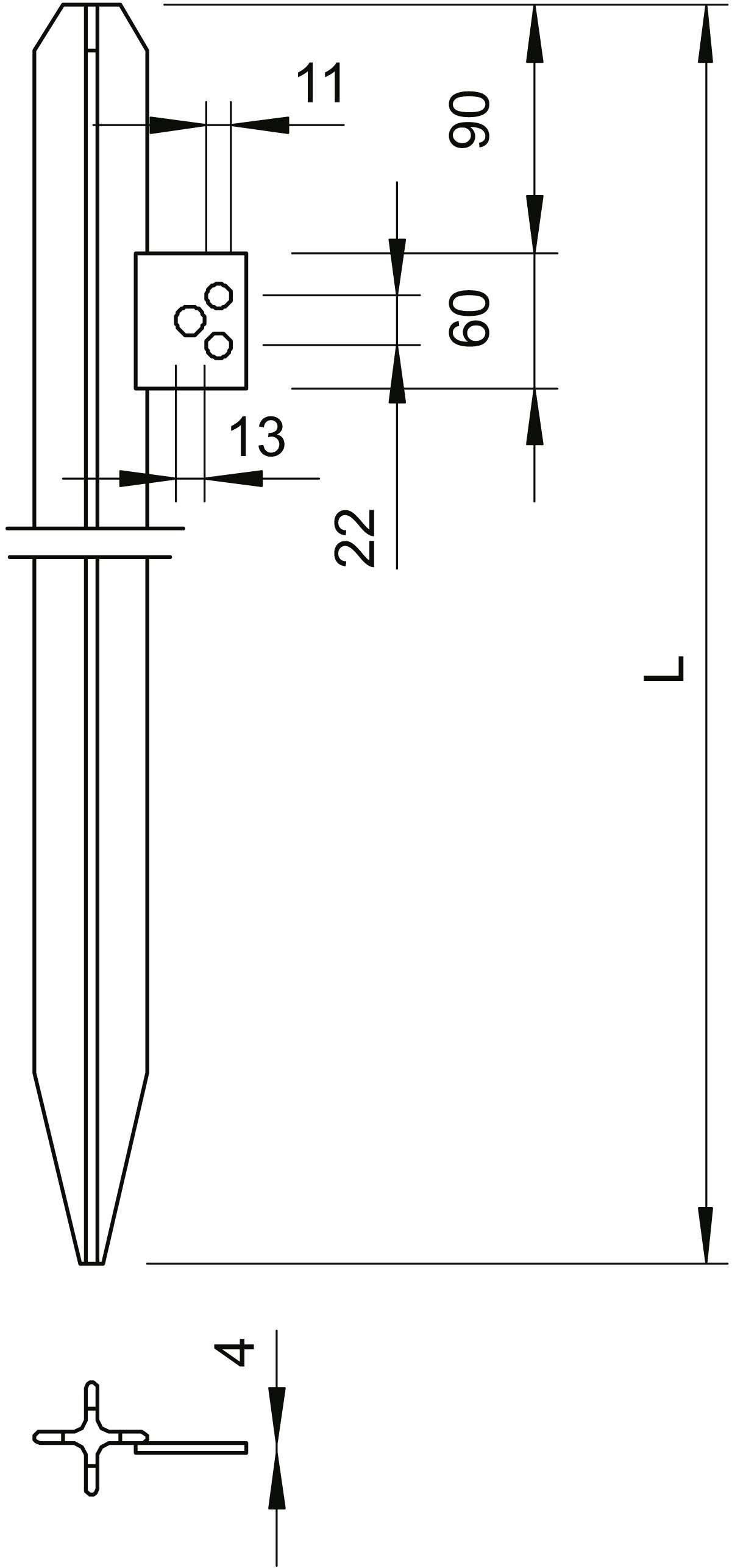

Technical drawing of a metal post with dimensions. Main length 'L' and width 22 mm are specified. Side view and cross-section below.

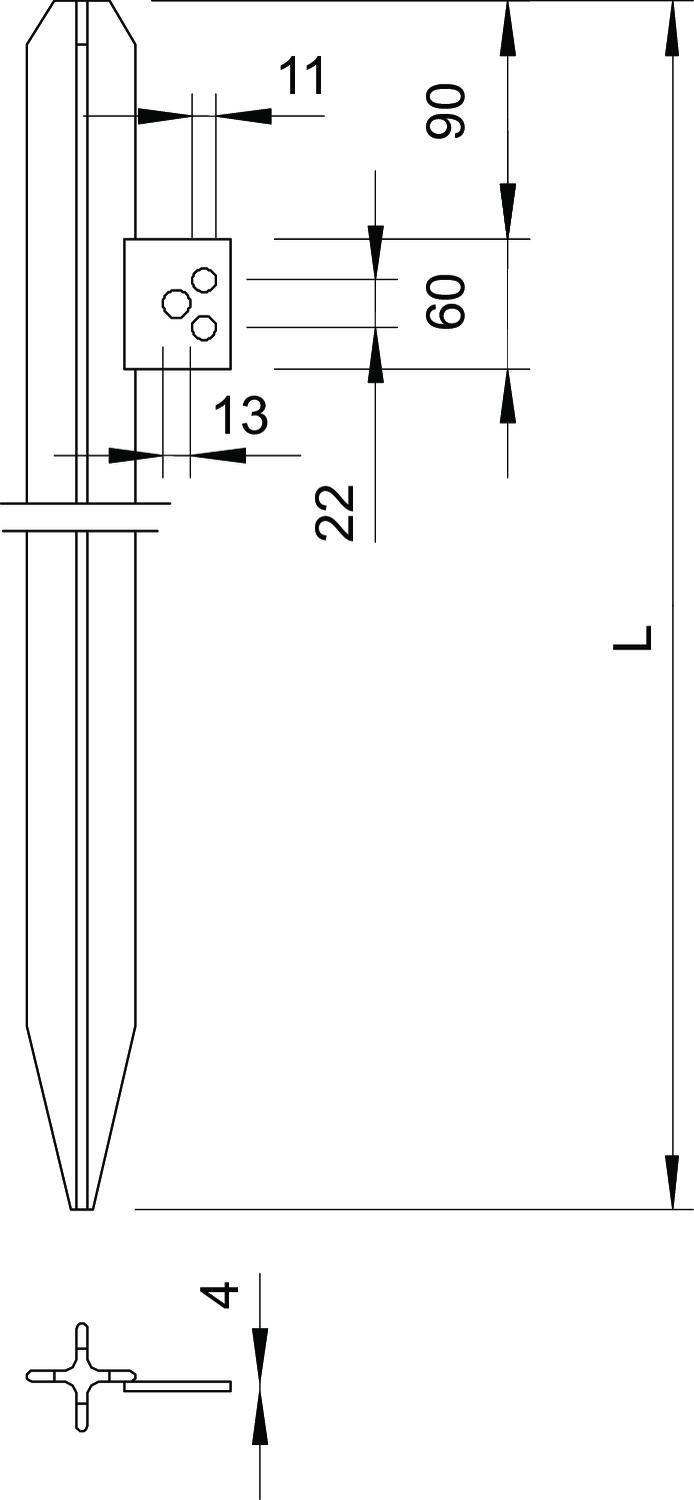

Technical drawing of a post carrier with dimensions. Length L, width 4 mm, hole spacings 11 mm, 13 mm and 22 mm.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design: With connection latch
Cross-profile: Yes
Connection type: Other
Length: 2500 mm
Material: Steel
Surface protection: Hot-dip galvanized

Product type: Ground spike

Type: With connection strap

Manufacturer part #: 5003032

Length: 2500.00 mm

Content: 1 pc(s)

Material (details): Steel

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3159930 OBO Bettermann 5003032 213 2500 Ground spike 1 pc(s)

Description

Cross-profile 50 x 50 x 3 mm
With connection strap
1 passage hole Ø 13 mm
2 through holes Ø 11 mm
Round conductor attachment possible with Type 5001 DIN-FT
For mounting earthing systems, for example for antennas or construction current distributor grounding
