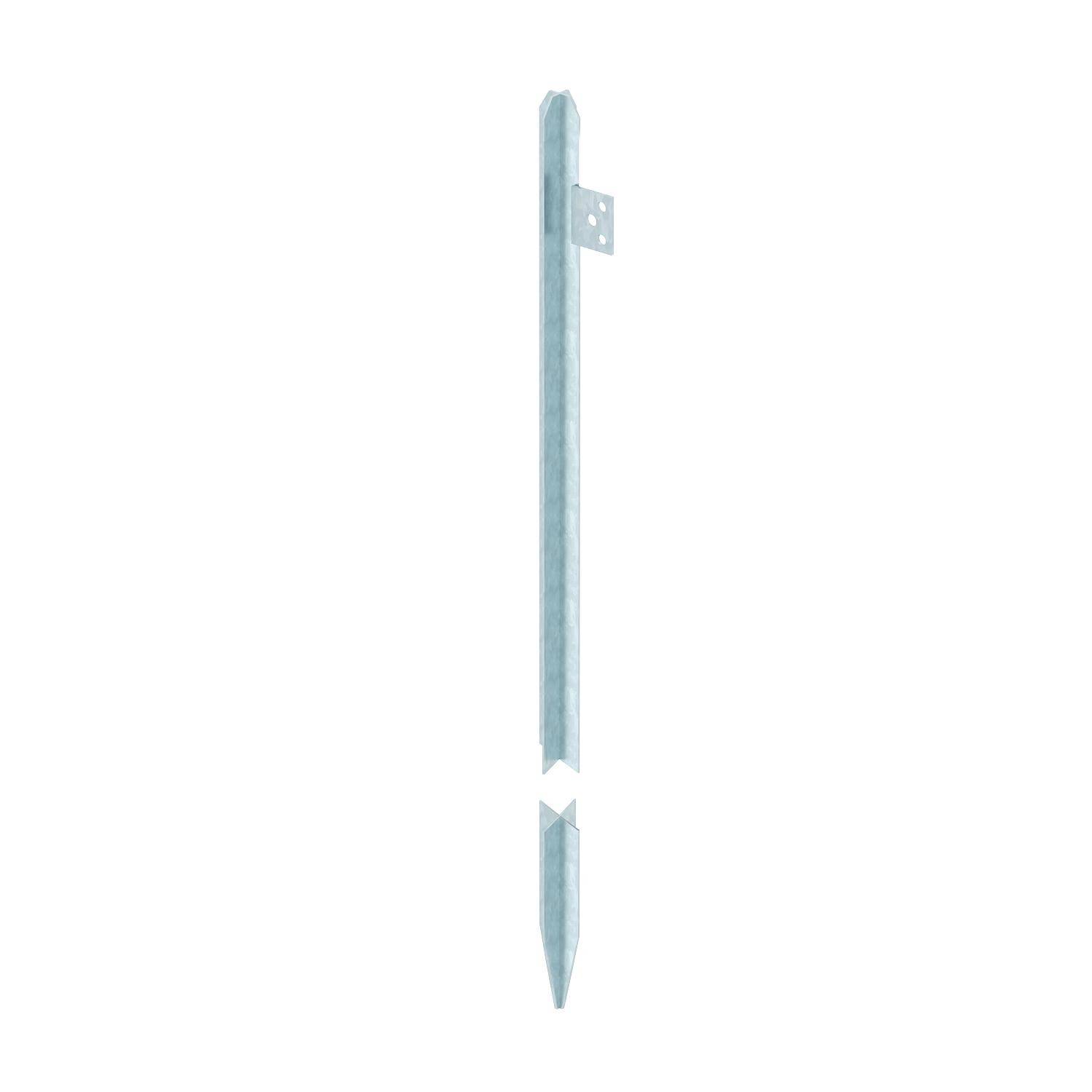

OBO Bettermann 5003040 213 3000 Ground spike 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design: With connection latch
- Cross-profile: Yes
- Connection type: Other
- Length: 3000 mm
- Material: Steel
- Surface protection: Hot-dip galvanized
- Product type
Ground spike
- Type
With connection strap
- Manufacturer part #
5003040
- Dim
(L x W x H) 3000.00 x 50 x 3000 mm
- Length
3000.00 mm
- Width
50 mm
- Height
3000 mm
- Depth
50 mm
- Content
1 pc(s)
- Material (details)
Steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159932 OBO Bettermann 5003040 213 3000 Ground spike 1 pc(s)
Description

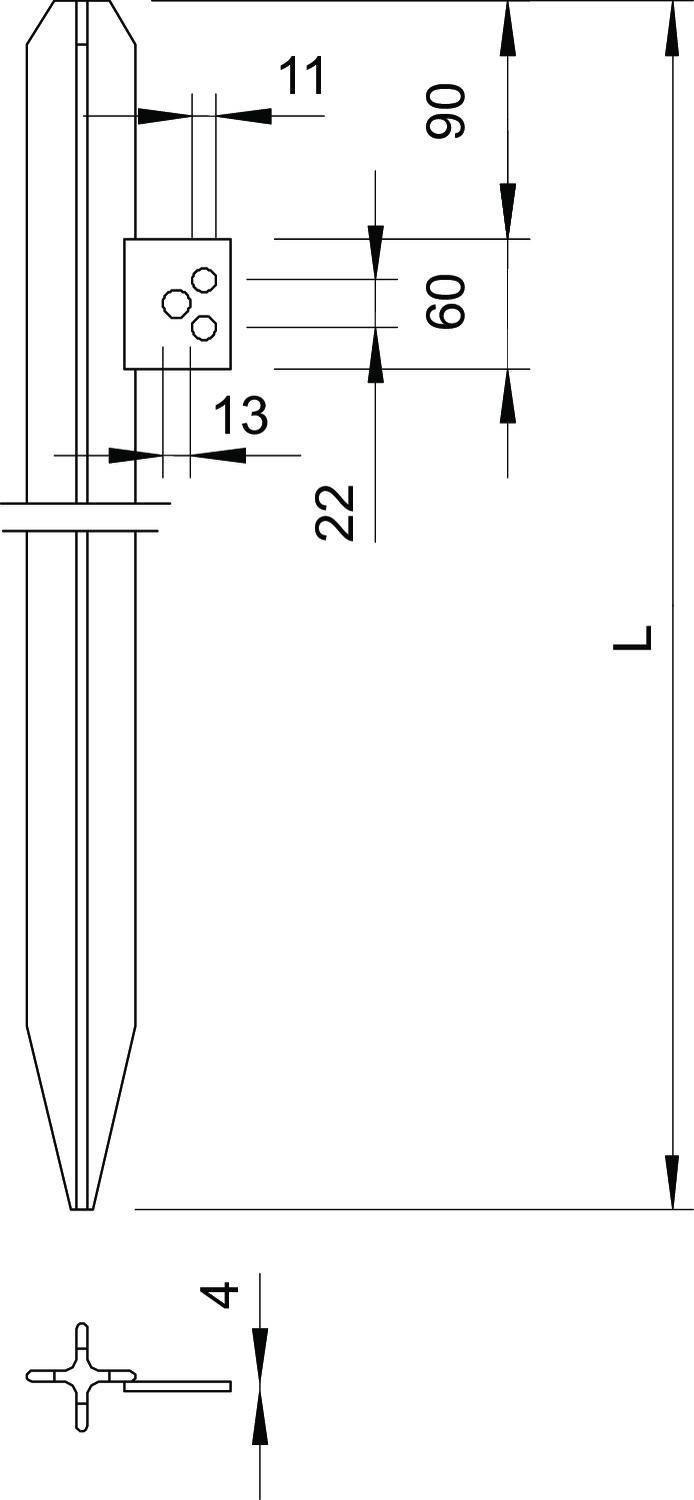

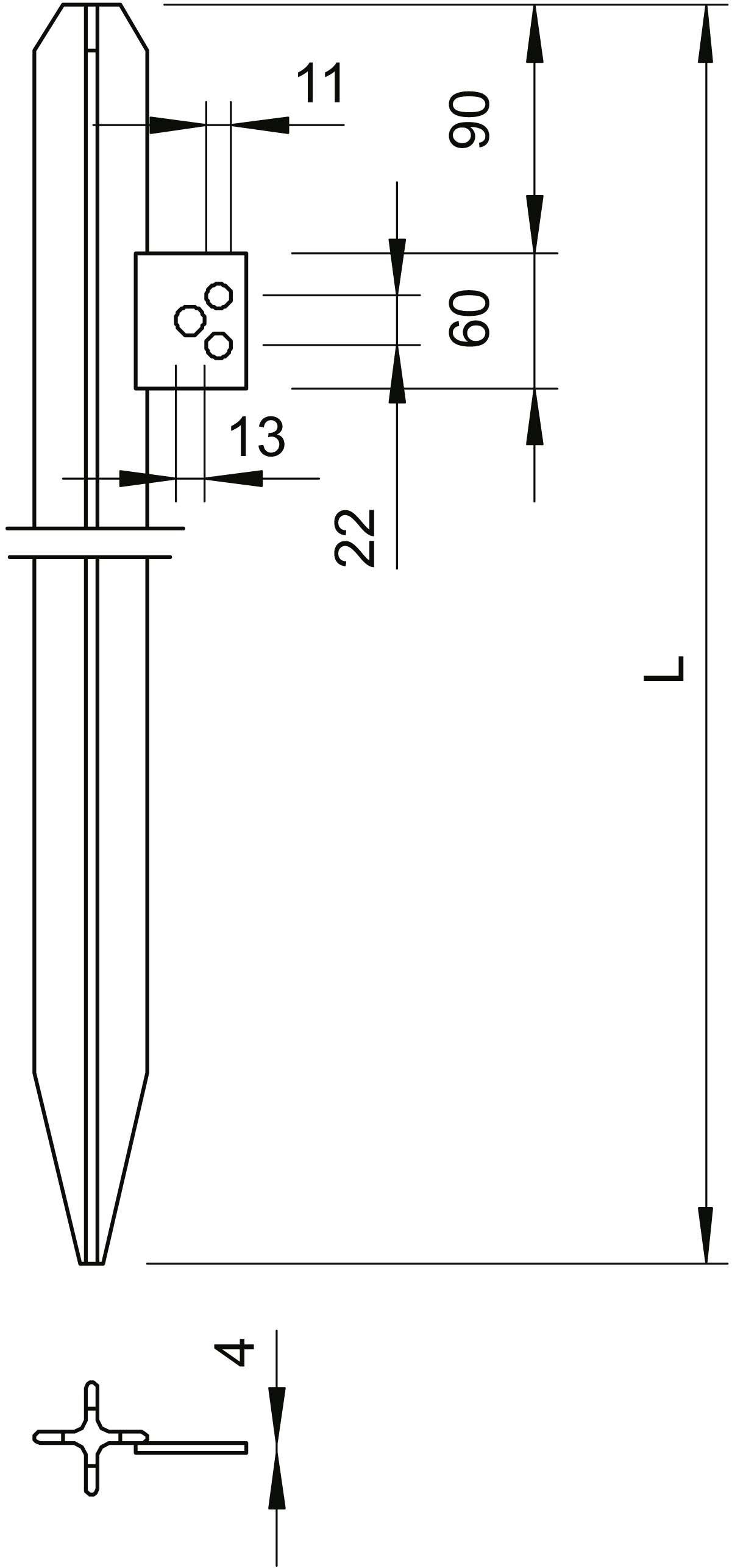

Cross-profile 50 x 50 x 3 mm
With connection strap
1 passage hole Ø 13 mm
2 through holes Ø 11 mm
Round conductor attachment possible with Type 5001 DIN-FT
For mounting earthing systems, for example for antennas or construction current distributor grounding
This text is machine translated.
With connection strap
1 passage hole Ø 13 mm
2 through holes Ø 11 mm
Round conductor attachment possible with Type 5001 DIN-FT
For mounting earthing systems, for example for antennas or construction current distributor grounding
This text is machine translated.
