OBO Bettermann 5050073 950 Z 1/2 Protective ground 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Clamping/clamping range = 20 22.5 mm
- Min. Clamp/clamping range inch = 1/2 inch
- Max. Clamp/clamping range inch = 1/2 inch
- Material = zinc
- Electrically/Electrolytically galvanised surface =
- Cross-section of the cable = 0..35 mm²
- The number of line = 1
- Product type
Protective ground
- Manufacturer part #
5050073
- Factory colour
Multicolour
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956209 OBO Bettermann 5050073 950 Z 1/2 Protective ground 1 pc(s)
Description

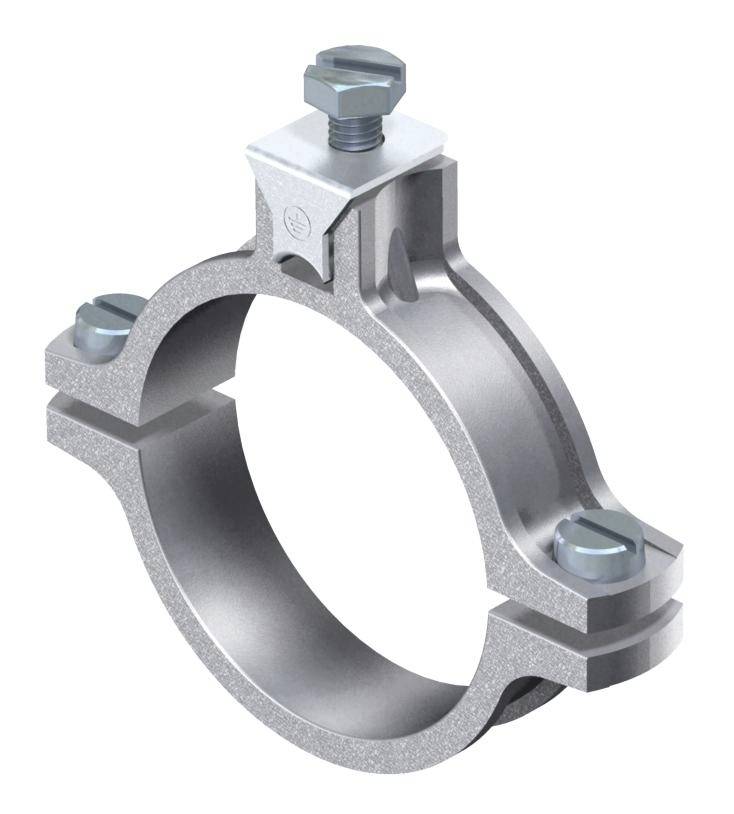

Earthing clamp, connection possibility for round conductors up to 6 mm, with captive pressure strip, 2 cylinder screws M6 x 16 and 1 hexagonal screw M6x16, made of steel, galvanised, clamp upper and lower sections made of die-cast zinc
