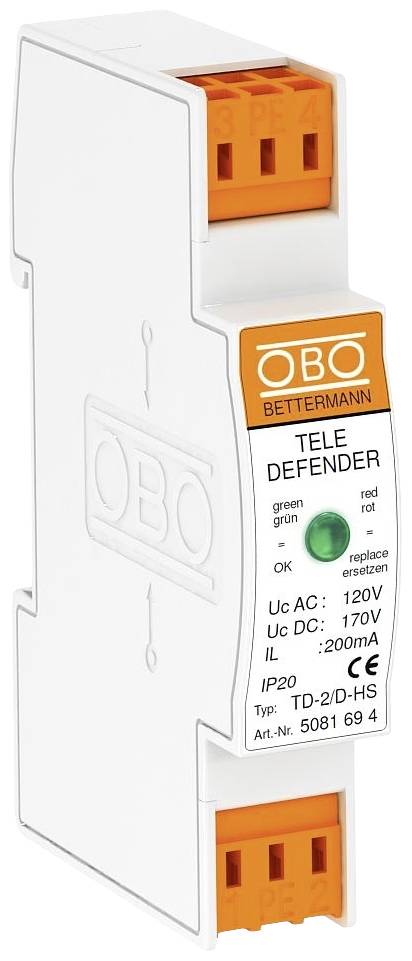

OBO Bettermann 5081694 TD-2/D-HS Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 120 V
- The highest continuous voltage DC: 170 V
- Protection level wire/wire: 300 V
- Protection level wire/Earth: 650 V
- Track 1: Terminal
- Surge arrester monitoring: no
- With remote signalling contact: no
- Signaling on the device: optical
- Explosion tested design: no
- Product type
Surge protection device
- Surge protection for
DSL (RJ45)
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5081694

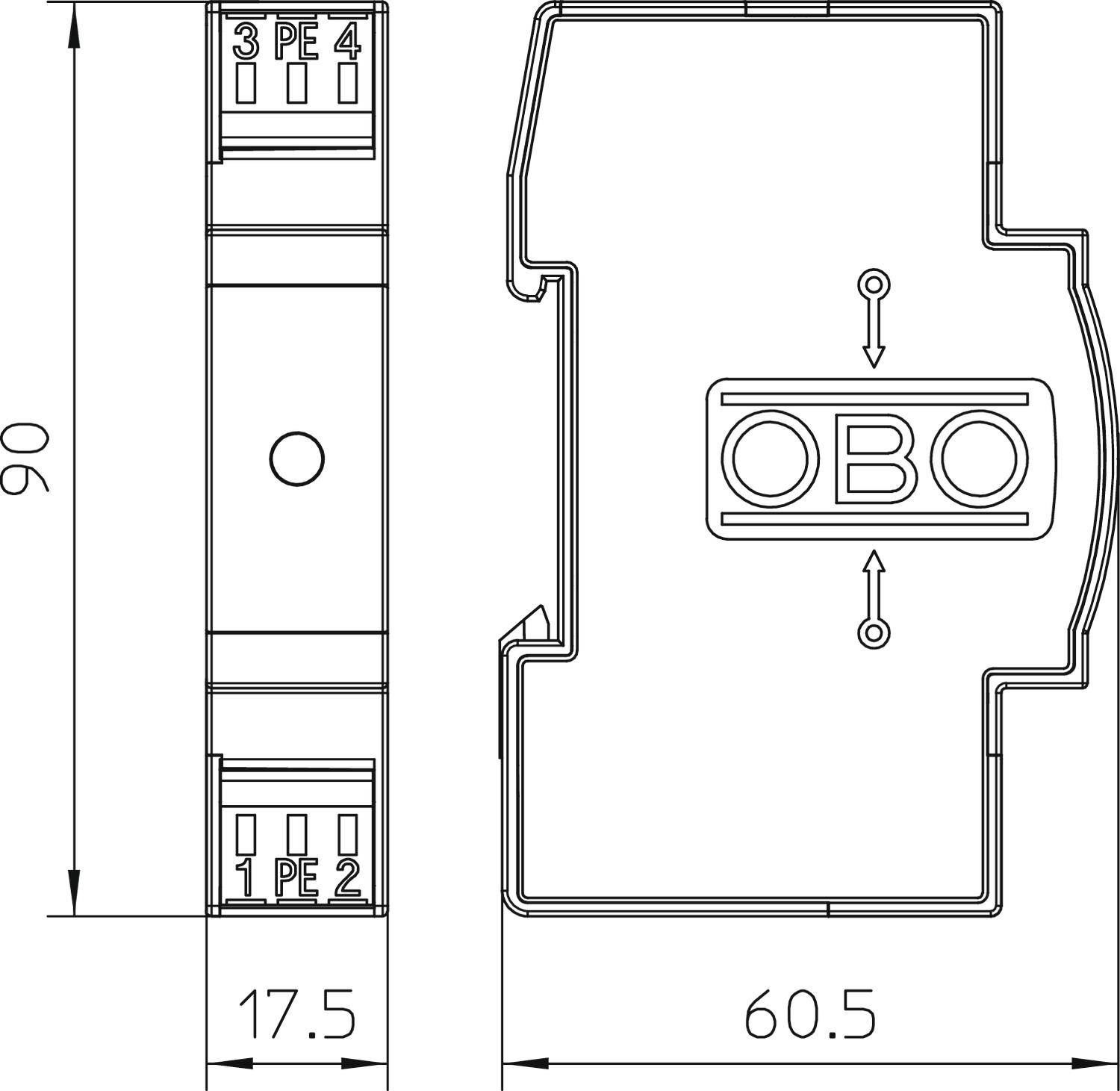

- Dim
(W x H x D) 17.5 x 90 x 60.5 mm
- Width
17.5 mm
- Height
90 mm
- Depth
60.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957808 OBO Bettermann 5081694 TD-2/D-HS Surge protection device 1 pc(s)
Description
Data line protection devices for telecommunications equipment. Low voltage protection level at high current load. Screwless terminals and/or plug-in. Bandwidth optimized for secure transmission. Fast mounting on DIN-rails for a telephone line. Visual function display Application: DSL, ISDN or analogue telecommunications systems.
