OBO Bettermann 5088420 5088420 Generator junction box
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 1
- Max. Voltage range DC 900 V
- Width 286 mm
- Height: 202 mm
- Depth: 125 mm
- String safeguard: Without
- Protection class (IP) IP66
- Impact strength: IK07
- Test class type 1: Yes
- Test class type 2: Yes
- Test class type 3: No.
- Monitoring function: No.
- Operating temperature -25..65°C
- Max. output current 41 A
- Colour: grey
- Number of cable entries: 12
- Type of introduction: Screw connection
- Product type
Generator junction box

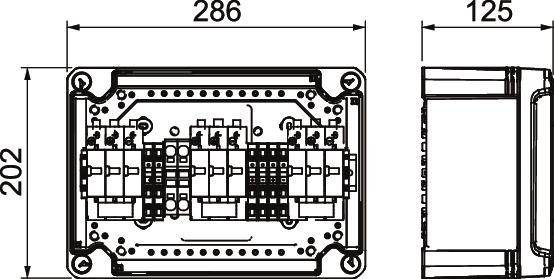

- Dim
(W x H x D) 286.00 x 202.00 x 125.00 mm
- Factory colour
Grey
- Content
1 pc(s)
- Width
286.00 mm
- Height
202.00 mm
- Depth
125.00 mm
IP66
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162042 OBO Bettermann 5088420 5088420 Generator junction box
Description

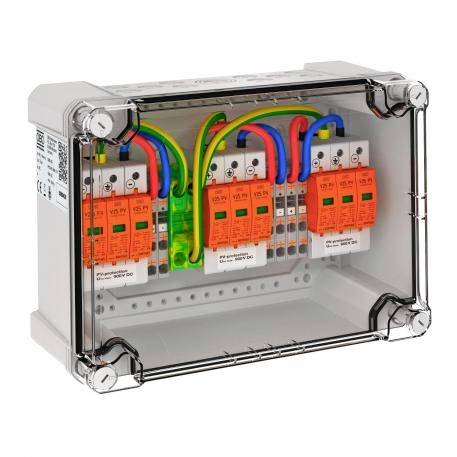

Generator connection box type 1+2 for photovoltaic systems for the connection of 3 x 1 string. For DC-protection of the inverter.
Varistor, pluggable, with separating device in error-resistant Y-circuit according to VDE 0100-712 (50539-12)
Low DC protection level: < 3.0 kV (Uoc max = 900 VDC)
3 protective devices each with 2 clamping points up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal
Polycarbonate housing (IP66), UV resistant for outdoor use, including cable fitting set and pressure compensation element
Additional measures may be required if there is a danger of condensation due to wind, ice, temperature or sun!
This text is machine translated.
Varistor, pluggable, with separating device in error-resistant Y-circuit according to VDE 0100-712 (50539-12)
Low DC protection level: < 3.0 kV (Uoc max = 900 VDC)
3 protective devices each with 2 clamping points up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal
Polycarbonate housing (IP66), UV resistant for outdoor use, including cable fitting set and pressure compensation element
Additional measures may be required if there is a danger of condensation due to wind, ice, temperature or sun!
This text is machine translated.
