OBO Bettermann 5088640 VG-BC PV900KS4 Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of basic elements for surge suppressor = 1
- Number of lightning current arresters for energy technology = 0
- Number of lightning current arresters for information/MSR technology = 0
- Number of decoupling reactors for internal lightning protection = 0
- Number of remote alarm modules for lightning/surge arrester = 0
- Number of device surge protection for energy technology/power supply = 0
- The number of combination surge arrester for energy technology = 1
- The number of combination surge arrester for information/MSR technology = 0
- The number of test and test devices for overvoltage protection = 0
- The number of surge arrestors for energy technology/power supply = 0
- The number of surge arrestors for information/MSR technology = 0
- The number of surge protection devices for energy and information technology = 0
- With Housing = Yes
- With Accessories = Yes
- Product type
Surge protection device
- Surge protection for
PV systems
IP65
- Manufacturer part #
5088640
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965930 OBO Bettermann 5088640 VG-BC PV900KS4 Surge protection device 1 pc(s)
Description

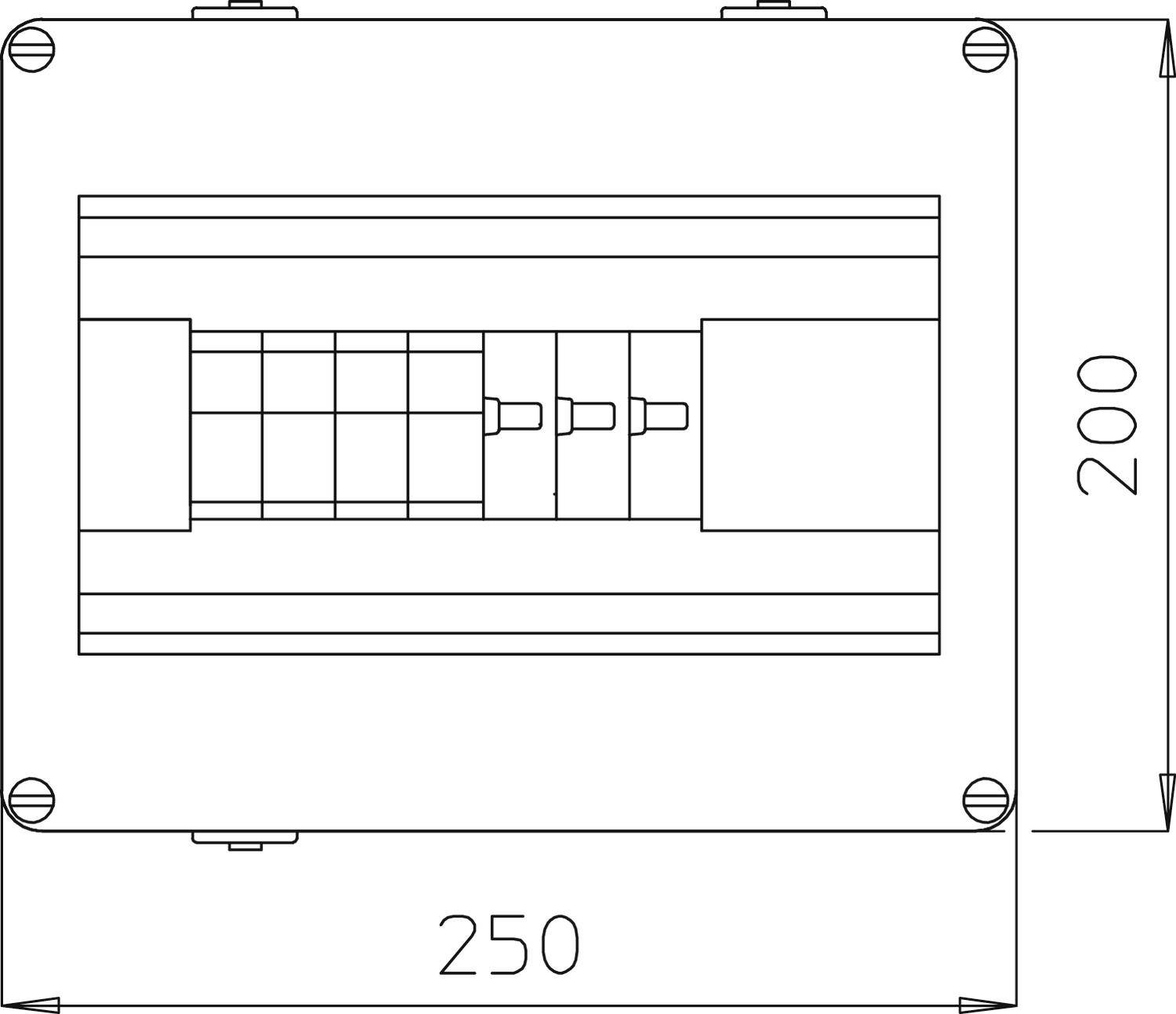

System solution for the lightning and surge protection (type 1+2 900V DC) of PV inverters with 4 separate inputs (MPP tracker) ready in the housing pre-assembled. The arrester with error-resistant Y-circuit with 3 varistors for use according to VDE 0100-712, pluggable with dynamic Disconnection device disconnects and visual function display are characterised by a low DC protection level< 3.0 kV. The housing including Cable screwing set, with IP65 degree of protection, made from polycarbonate is UV-resistant and suitable for outdoor use. Per protective device are already pre-installed 4 clamping points up to 6 mm² 4 (+) pole via fuse holder 10x38 unfitted, 4 (-) poles connected in parallel up to 30 A per terminal. The simple, fast and secure connection of the DC cable via the continuity series terminal enables an optimum protection against the electrical inverter. The protective devices are in accordance with the maximum sum of open-circuit voltage (uoc) of the PV-string. In the event of danger, condensation by wind, ice, temperature or sun are necessary additional measures required!
