OBO Bettermann 5088651 VG-C DCPH1000-4S Surge protection device 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. PV-voltage: 1000 V
- Protection level: 4 kV
- Signaling on the device: optical
- Product type
Surge protection device
- Leakage current
20 kA
- Operating temperature
-40 to +80 °C
IP65
- Manufacturer part #
5088651

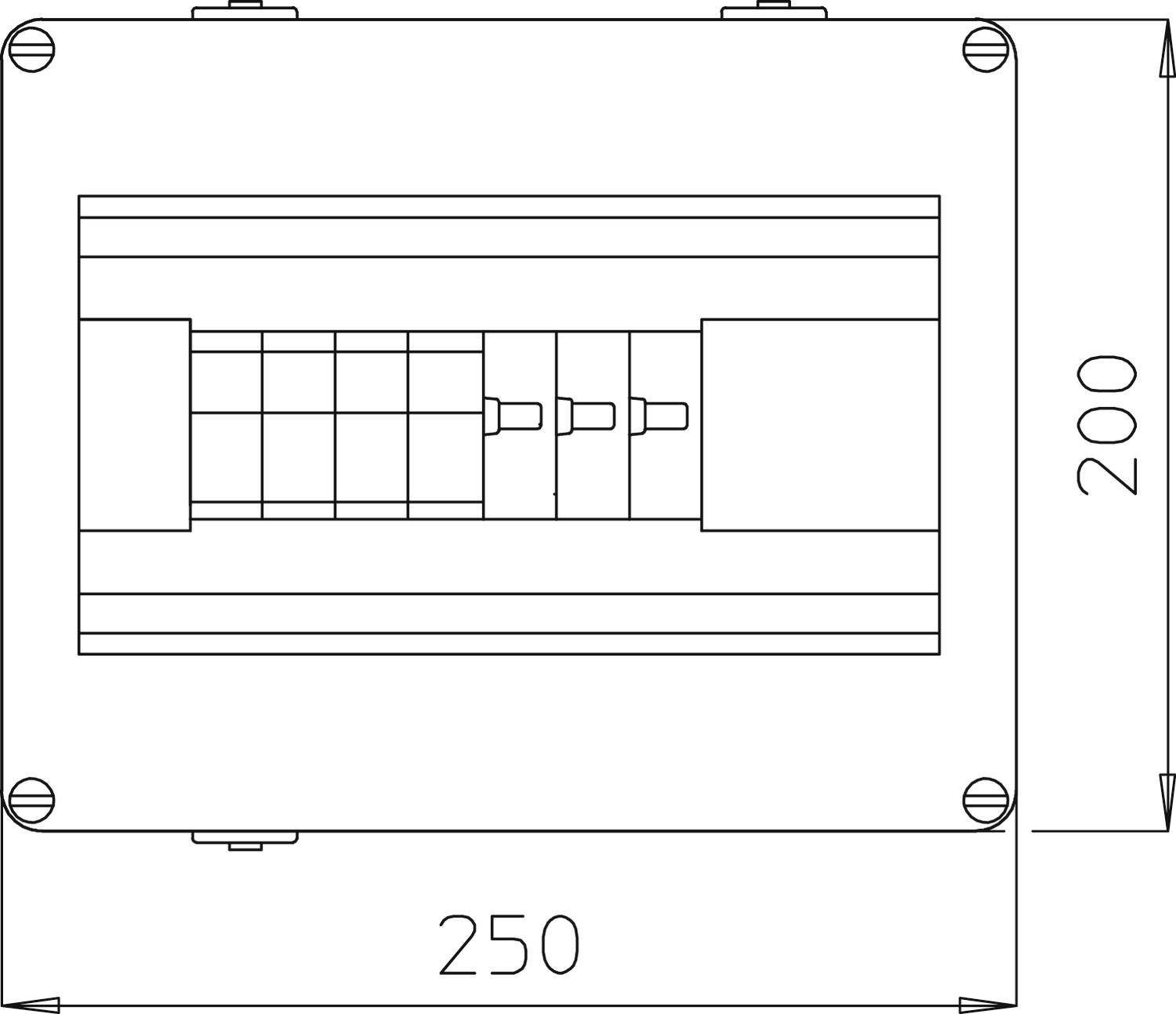

- Dim
(W x H) 250 mm x 200 mm
- Width
250 mm
- Height
200 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964590 OBO Bettermann 5088651 VG-C DCPH1000-4S Surge protection device 20 kA 1 pc(s)
Description

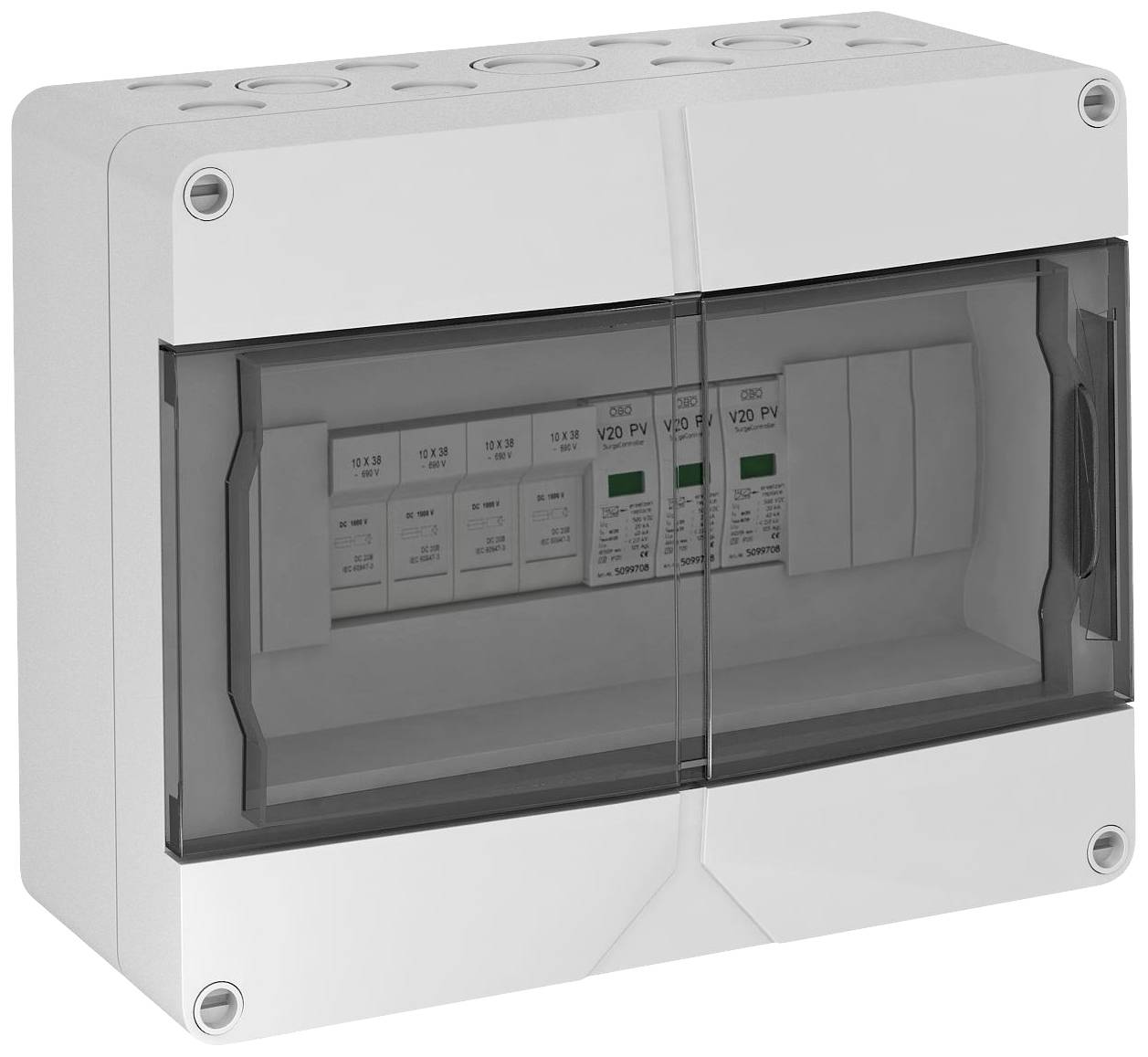

System solution with PV fuses for PV inverter with 1 MPP tracker error resistant Y-circuit according to VDE 0100-712 (50539-12) - low DC protection level:< 4.0 kV (uoc max = 1000 V DC with V20-C/0-500PV) (+) pole via 4 PV fuses 10 x 38 mm 10 A, 1000 V DC protected - 4 (-) terminals via clamping points up to 6 mm² in the housing connected in parallel, up to 30 A DC per terminal - pre-assembled in polycarbonate casing (IP65), UV-resistant for outdoor use, incl. cable screwing set to the DC protection of the inverter of PV systems. In the event of danger, condensation by wind, ice, temperature or sun are necessary additional measures required!
