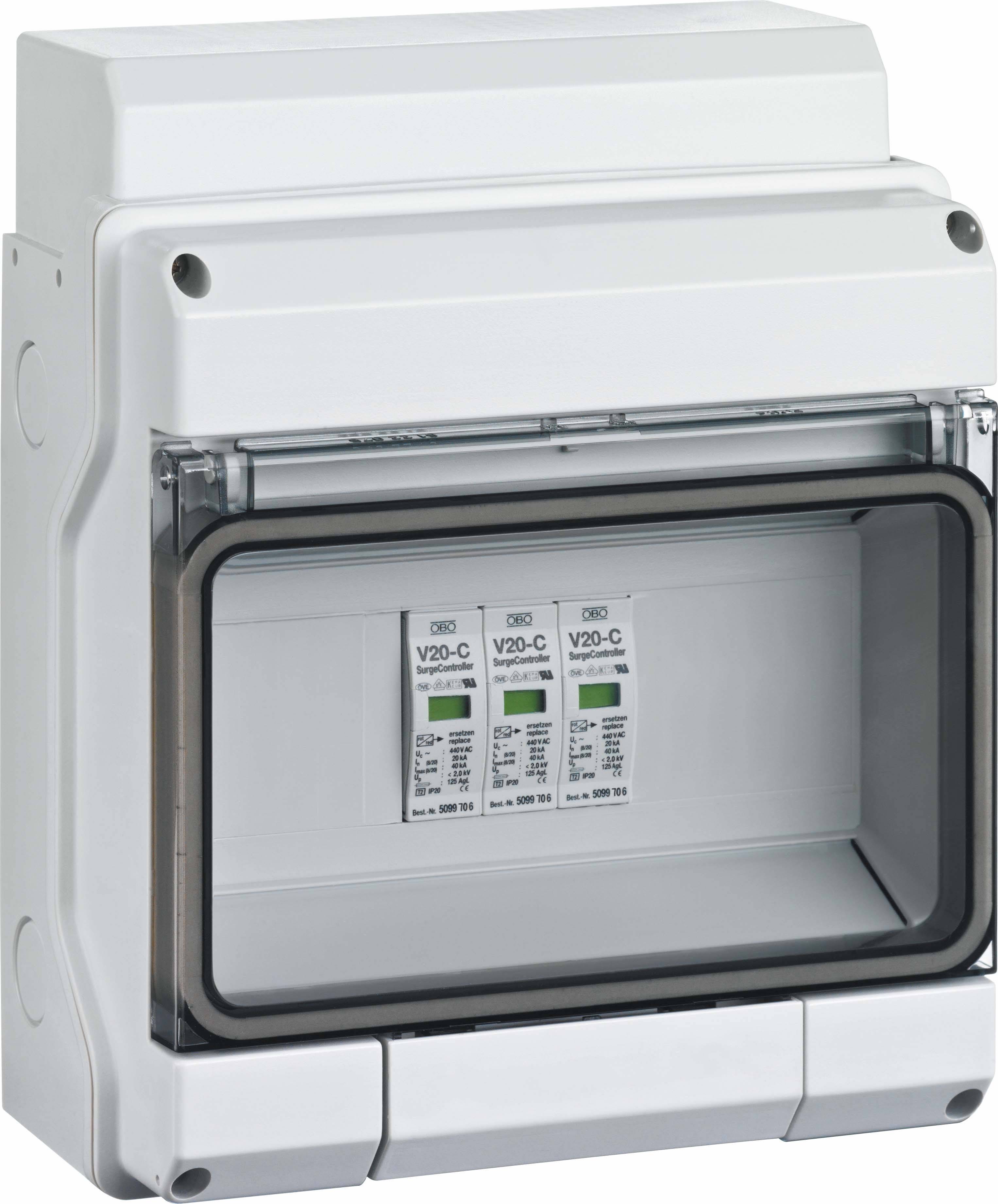

OBO Bettermann 5088691 VG-C DCPH-MS1000 Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage DC: 1000 V
- Protection level: 4 kV
- With remote signalling contact: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge protection device
- Surge protection for
PV systems
- Type
Installation type: direct mounting
- Operating temperature
-40 to +80 °C
IP65
- Manufacturer part #
5088691
- Dim
(W x H x D) 200 x 238 x 111 mm
- Width
200 mm
- Height
238 mm
- Depth
111 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961868 OBO Bettermann 5088691 VG-C DCPH-MS1000 Surge protection device 1 pc(s)
Description
System solution for photovoltaic systems with connecting terminals-error-resistant Y-circuit for use (IEC 60364-7-712) according to VDE 0100-712-Low DC protection level:< 4.0 kV (uoc max = 1000 V DC with V20-C/0-500PV) Low DC protection level:< 3.0 kV (uoc max = 900 V DC with V25-B + C/0-450 PV) Low DC protection level:< 2.6 kV (uoc max = 600 V DC with V50-B + C/0-300 PV) each with 6 parallel connection terminals up to 6 mm² depending on the polarity (+ and -) Pre-assembled in IP65 housing note: 6 PV strings may be connected in parallel to the terminals. The technical data (string voltage,...) as well as the conditions of the inverter (number of MPP tracker) have to be taken into account. In the event of danger, if necessary, additional measures are required water formation selfheal!
