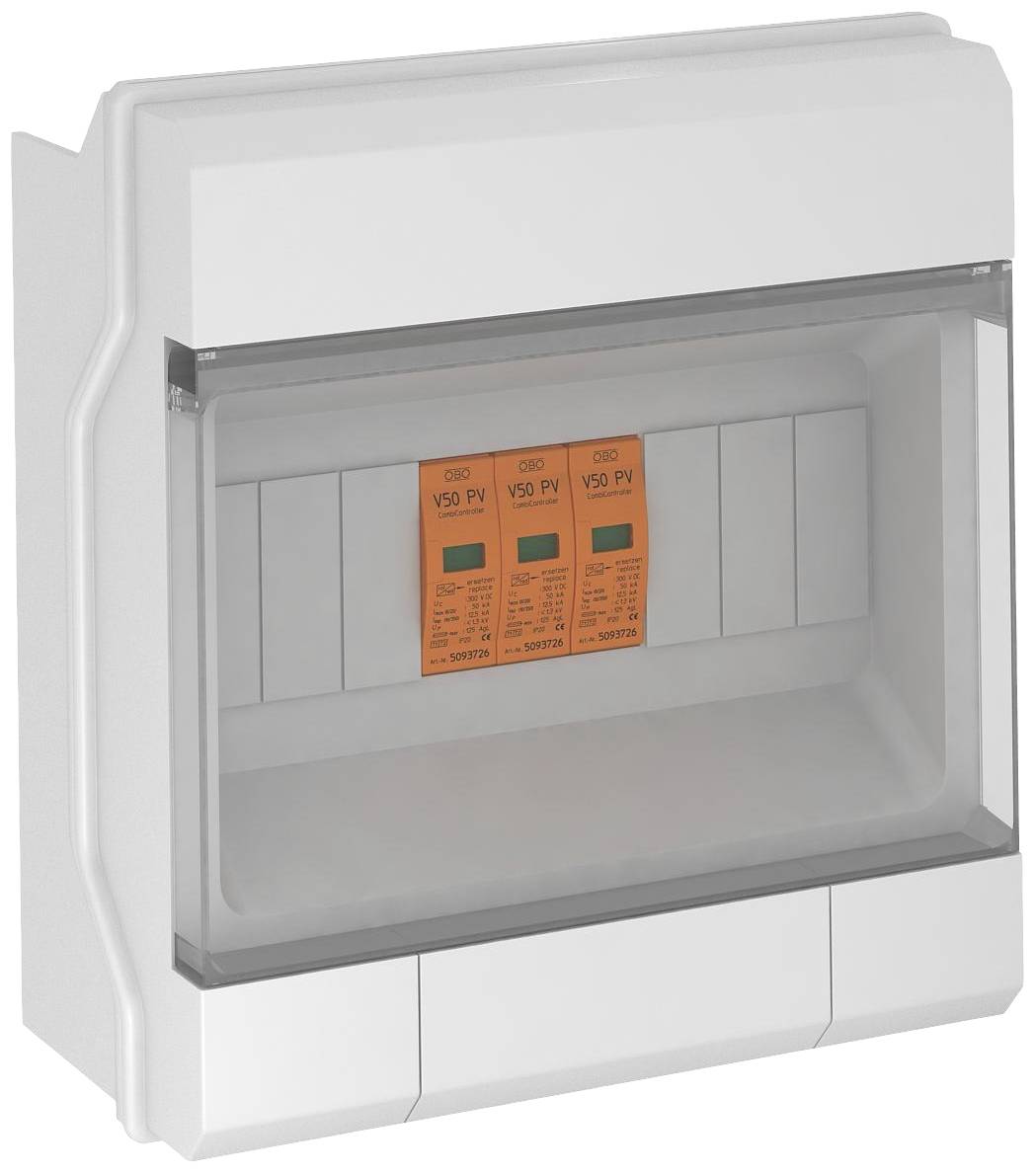

OBO Bettermann 5088693 VG-BC DCPH-MS600 Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Pins = 2
- Nominal voltage DC = 600 V
- Remote signalling = No
- Signaling on the device = optical
- Test class = type 1 and 2
- Ausblasend = No
- Product type
Surge protection device
- Surge protection for
PV systems
- Nominal voltage
600 V
- Manufacturer part #
5088693
- Content
1 pc(s)
- Number of pins
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960496 OBO Bettermann 5088693 VG-BC DCPH-MS600 Surge protection device 1 pc(s)
Description
System solution for PV inverter with 1 MPP tracker. Varistor arrester, pluggable with Disconnection device disconnects in error-resistant Y-circuit according to VDE 0100-712 (50539-12). Low DC protection level:< 2.6 kV (uoc max = 600 V DC with V50-B + C/0-300 PV/V20-C/0-300 PV). Per protective device are 10 clamping points up to 6 mm² are already pre-installed in the housing, up to 30 A DC per terminal. Pre-assembled in polycarbonate casing (IP65), UV-resistant for outdoor use, incl. cable screwing set. The DC-the protection of the inverter of PV systems.
