OBO Bettermann 5089212 VG 3-B TNC Surge arrester 100 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 2 kV
- Follow current extinguishing capability: 25kA
- With remote signalling contact: no
- Ausblasend: no
- Test class type 1: yes
- Product type
Surge arrester
- Leakage current
100 kA
- Nominal voltage
230 V AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +85 °C
IP54
- Manufacturer part #
5089212
- Dim

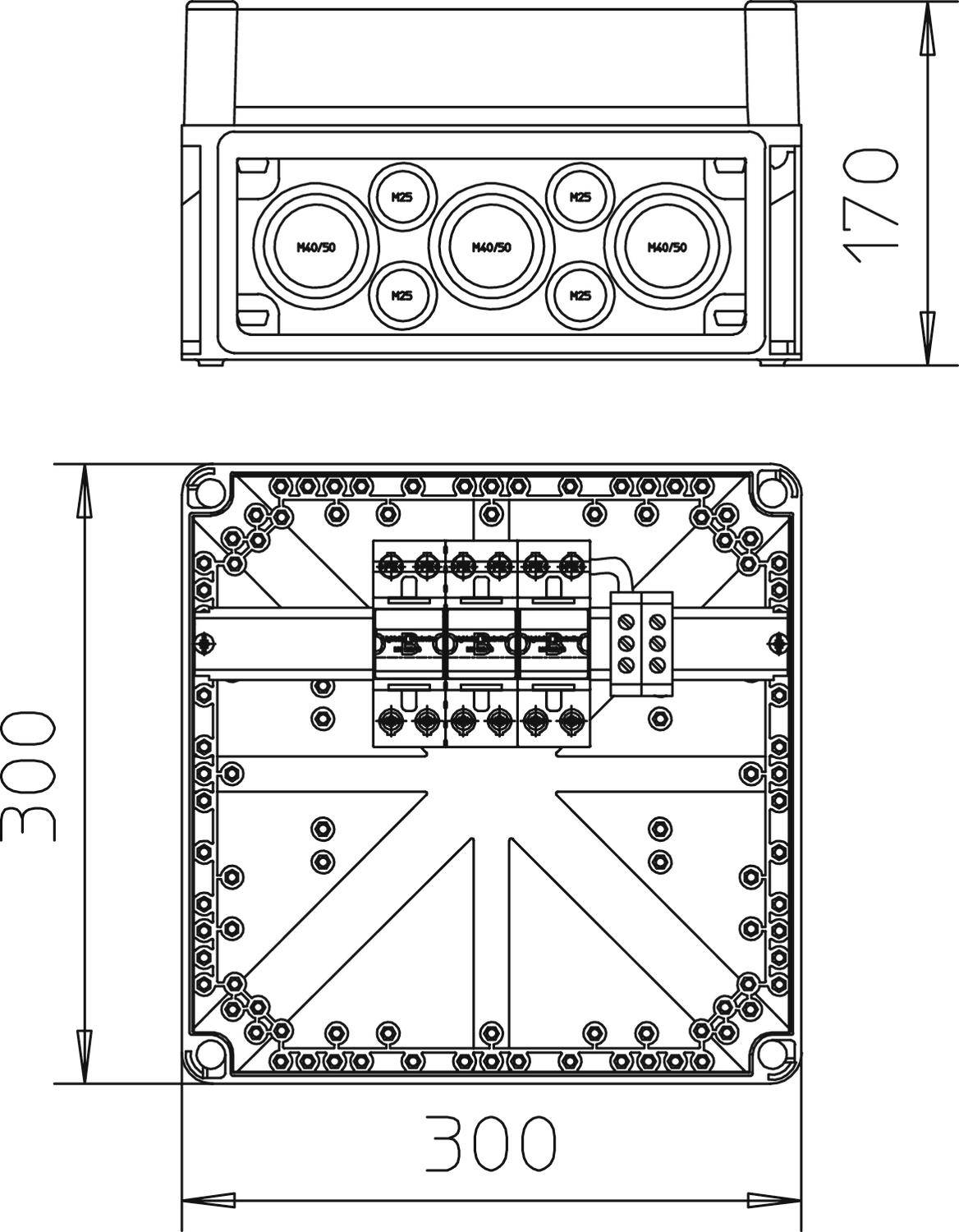

(W x H x D) 300 x 300 x 170 mm
- Width
300 mm
- Height
300 mm
- Depth
170 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958542 OBO Bettermann 5089212 VG 3-B TNC Surge arrester 100 kA 1 pc(s)
Description
Lightning current arresters system solution type 1 (Class B) according to DIN EN 61643. Lightning CONTROLLER MC50-B/VDE mounted in Insulation housing IP65, sealable, Pulsed current 100 kA 10/350 μs BET tested, corresponds to the requirements of the VDN Directive 2. Edition 2004, Protection Level< 2.0 kV, covered not ausblasende radio links, suitable for TNC-Power Systems
