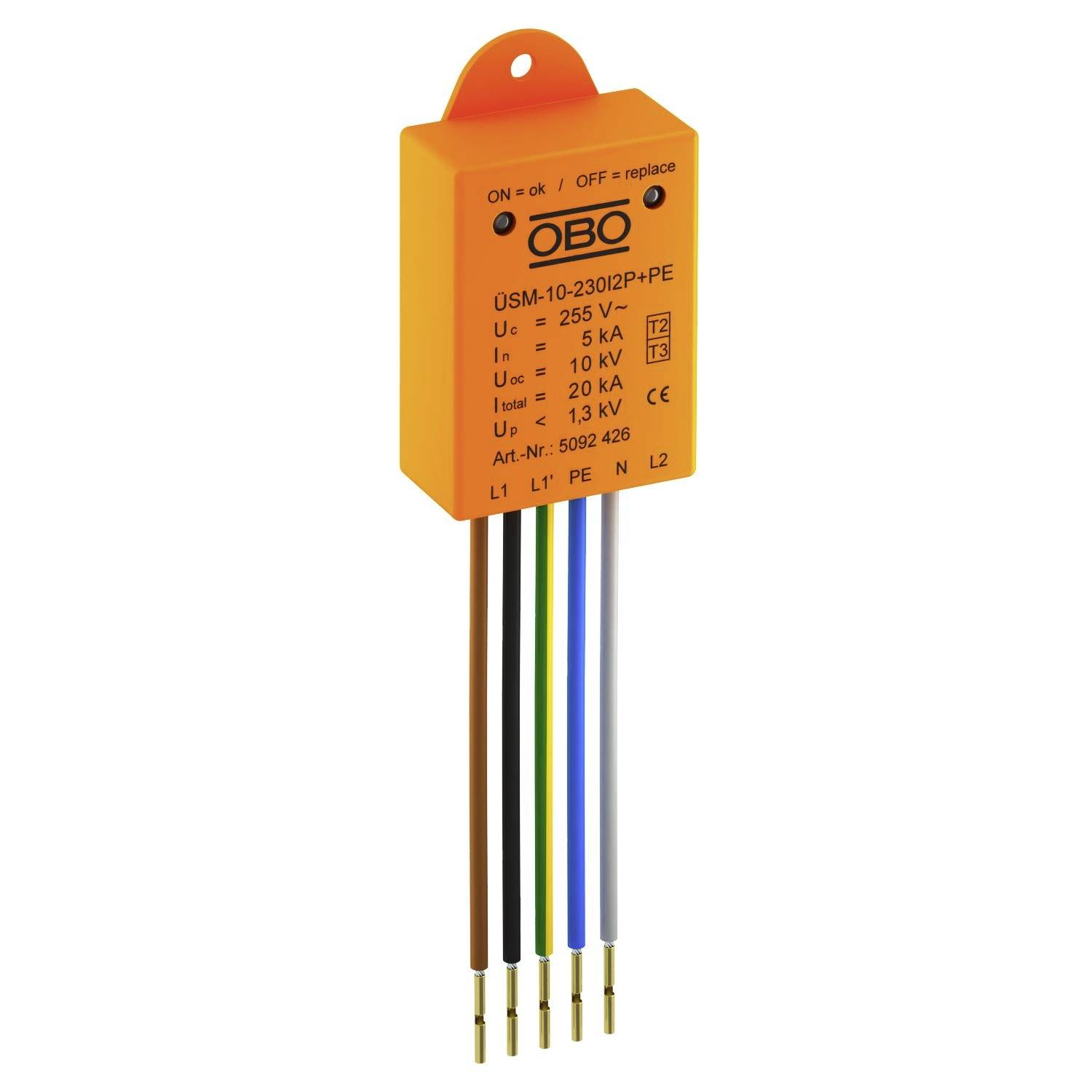

OBO Bettermann 5092426 ÜSM-10-230I2P+PE Surge protection module 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal surge current (8/20) 5 kA
- The highest continuous voltage AC: 255 V
- Protection level: 1.3 kV
- Protection level L-N: 1.3 kV
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge protection module
- Leakage current
5 kA
- Nominal voltage
230 V AC
- Operating temperature
-15 up to +60 °C
IP20
- Manufacturer part #
5092426

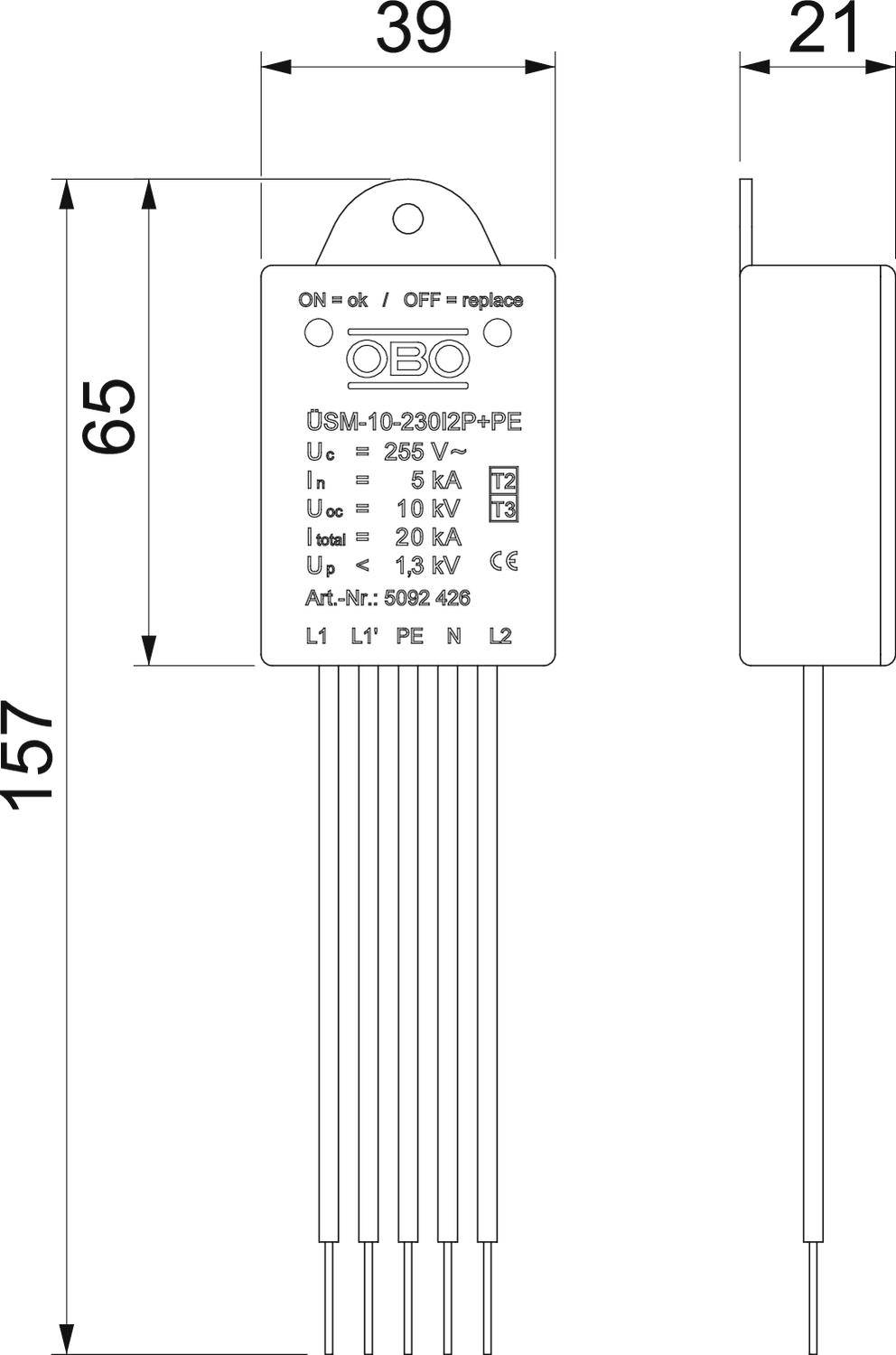

- Dim
(W x H x D) 39 x 65 x 21 mm
- Width
39 mm
- Height
65 mm
- Depth
21 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961857 OBO Bettermann 5092426 ÜSM-10-230I2P+PE Surge protection module 5 kA 1 pc(s)
Description
Surge protection module USM -10-230 I... Type 2+3 according to EN 61643 for 230/400 V networks. Determined to protect electronic devices such as or light LED driver. With a small size for installation in the pole terminal box and in the lamp head or from electronic driver. Protection level 1300 V and with a maximum of 10 kA discharge capacity for all lighting systems can be used.
