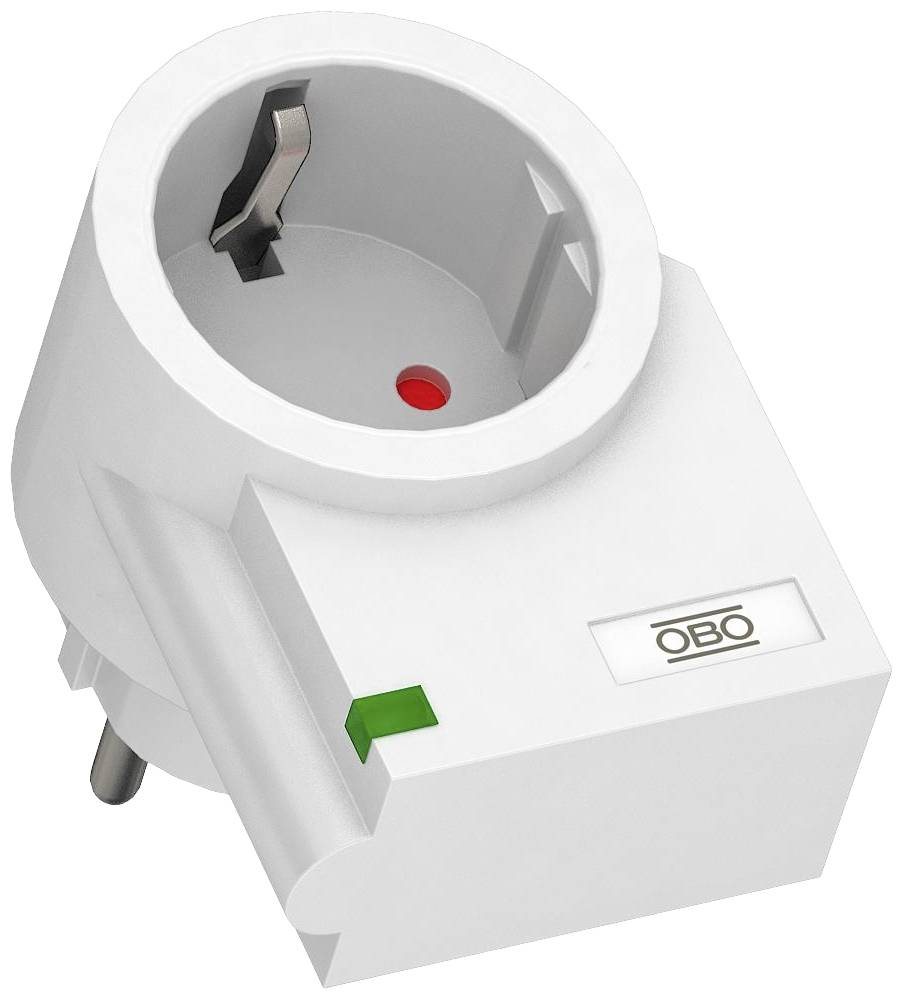

OBO Bettermann 5092800 FC-D Switchboard surge protection 2.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 260 V
- Nominal load current 16 A
- Protection level L-N: 1.5 kV
- Number of pins: 2
- With remote signalling contact: no
- Signaling on the device: optical
- Test class type 3: yes
- With noise filter: no
- Product type
Switchboard surge protection
- Leakage current
2.5 kA
- Nominal voltage
230 V AC
- Type
Installation type: Adapter
- Manufacturer part #
5092800

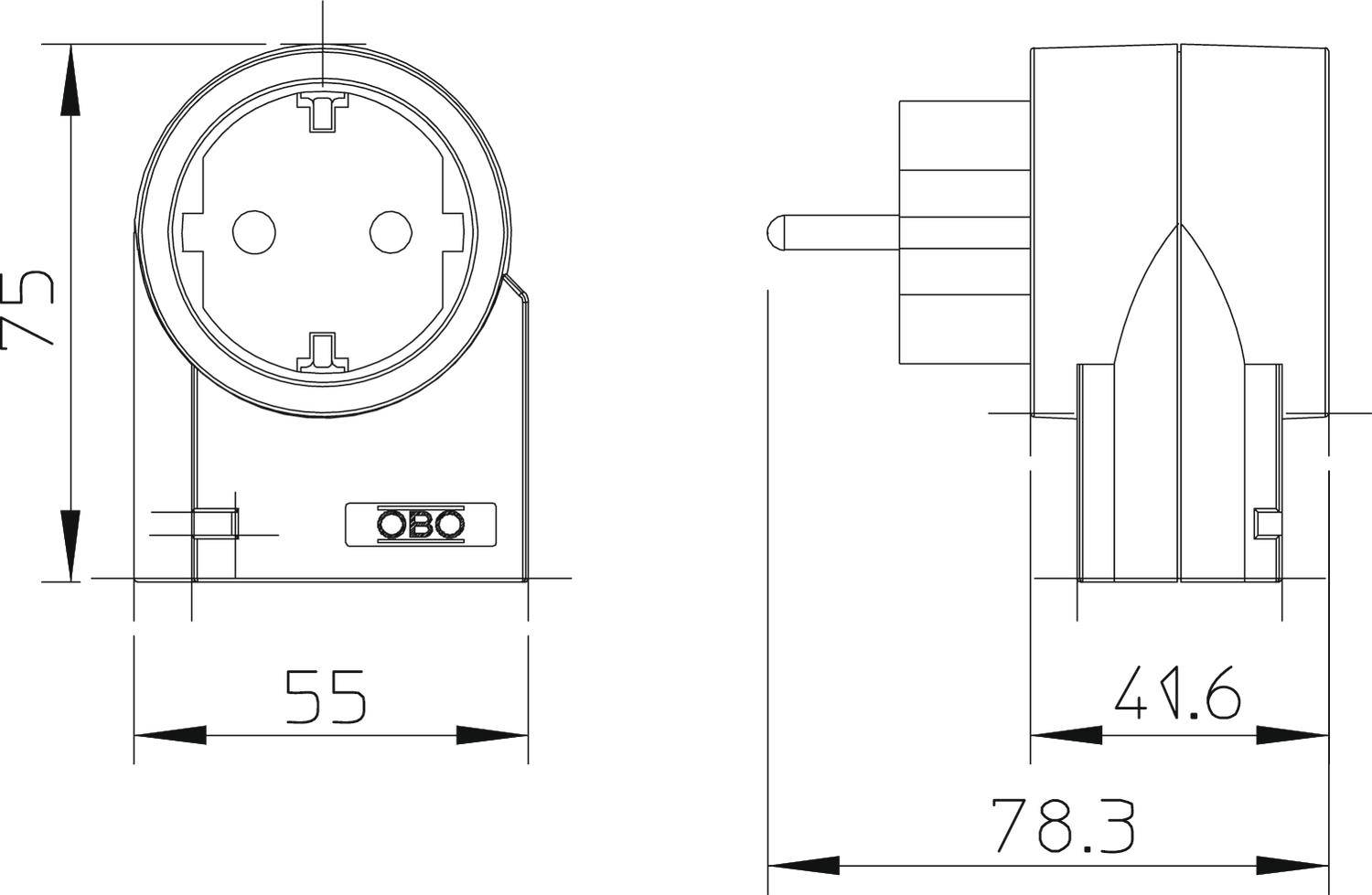

- Dim
(W x H x D) 55 x 75 x 78.3 mm
- Width
55 mm
- Height
75 mm
- Depth
78.3 mm
- Content
1 pc(s)
- Number of pins
2
- Weight
0.12
Wall socket
IP20
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959879 OBO Bettermann 5092800 FC-D Switchboard surge protection 2.5 kA 1 pc(s)
Description
Surge protection device type 3 according to EN 61643-11, VDE-tested, intended for use on shockproof sockets. With disconnecting device, optical function display and increased touch protection. Protection level< 1.5 kV.
