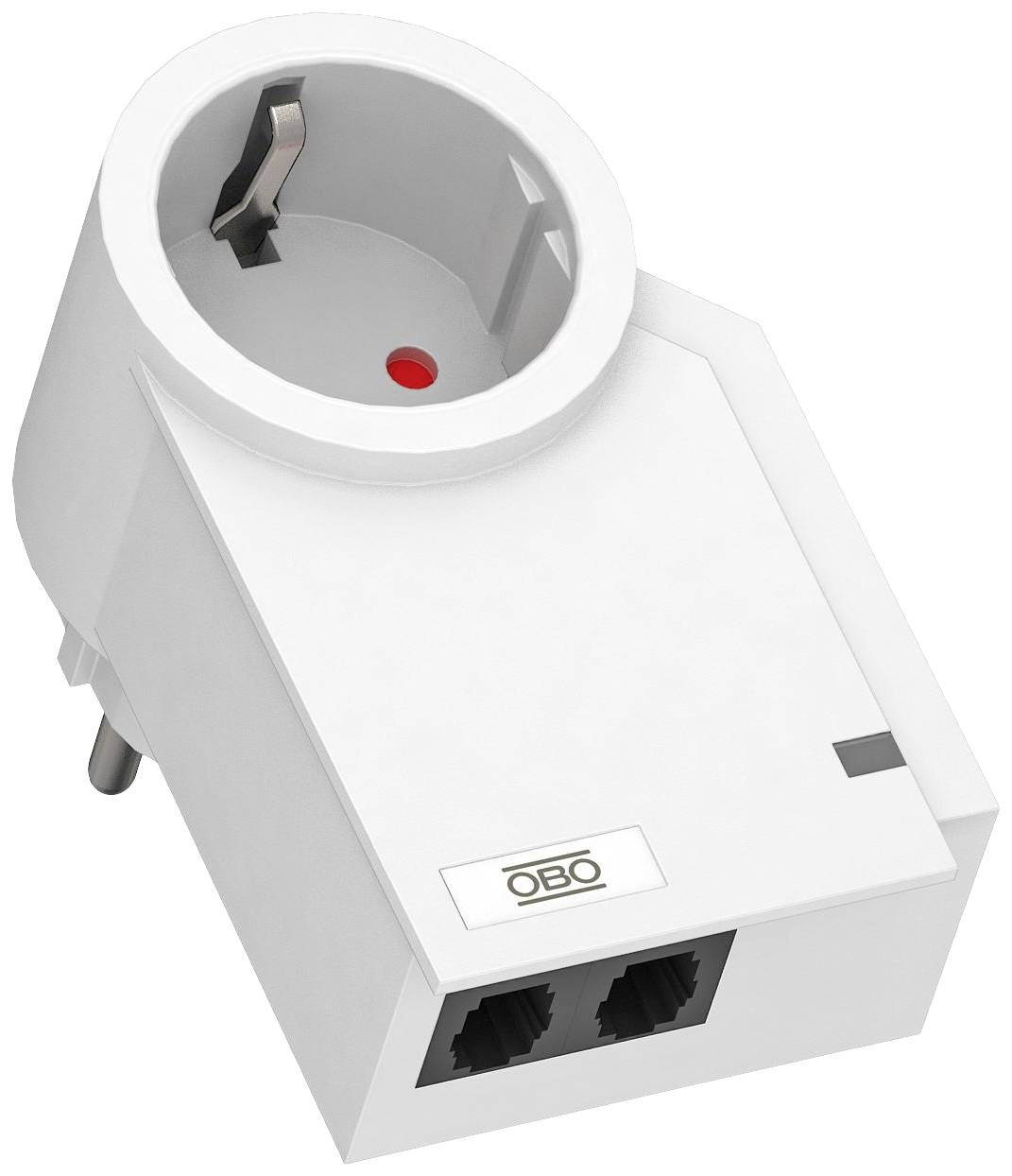

OBO Bettermann 5092828 FC-RJ-D Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 275V
- The highest continuous voltage DC: 275V
- Nominal surge current (8/20) 3 kA
- Connection (Information Technology): RJ12
- Protection level L-N: 1.52 kV
- Protection level L-PE/N-PE: 1.2 kV
- Signal nominal voltage DC: 1.5 V
- Signal cut-off frequency: 0.7 MHz
- Signaling on the device: optical
- With remote signalling contact: no
- Product type
Surge protection device
- Surge protection for
Phone/fax (RJ11)
- Leakage current
3 kA
- Nominal voltage
230 V AC
- Type
Installation type: Adapter
- Manufacturer part #
5092828
- Factory colour
White

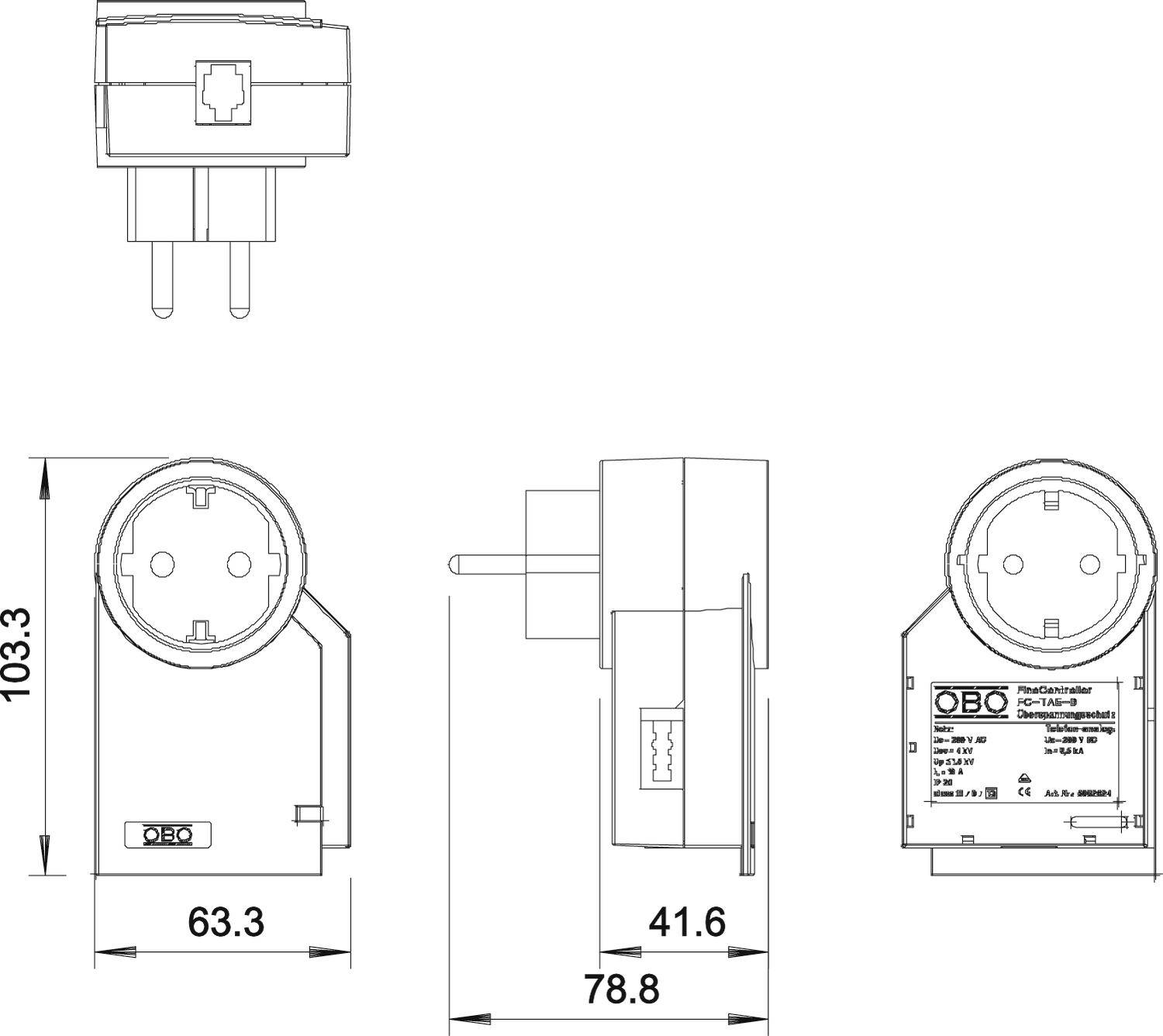

- Dim
(W x H x D) 63.3 x 103.3 x 78.8 mm
- Width
63.3 mm
- Height
103.3 mm
- Depth
78.8 mm
- Content
1 pc(s)
- Packaging type
Single
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957809 OBO Bettermann 5092828 FC-RJ-D Surge protection device 1 pc(s)
Description
Combined overvoltage protection type 3 according to EN 61643-11 (class D according to VDE 0675 part 6-11), intended for use on telephone systems and end devices (fax, telephones, modems, NTBAs). VDE-tested, disconnecting device and function display, increased touch protection, Incl. 0.5 m connection cable RJ 12, highest continuous voltage RJ-connection 200V (DC), cut-off frequency: 700kHz, DSL-capable
