OBO Bettermann 5093277 DS-SMA W/W Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 130 V
- The highest continuous voltage DC: 180 V
- Nominal load current 10 A
- Protection level wire/wire: 800 V
- Protection level wire/Earth: 800 V
- Track 1: antenna coaxial plug
- Product type
Surge protection device
- Operating temperature
-40 to +80 °C
IP40
- Manufacturer part #
5093277
- Compatible with (details)
High frequency cables

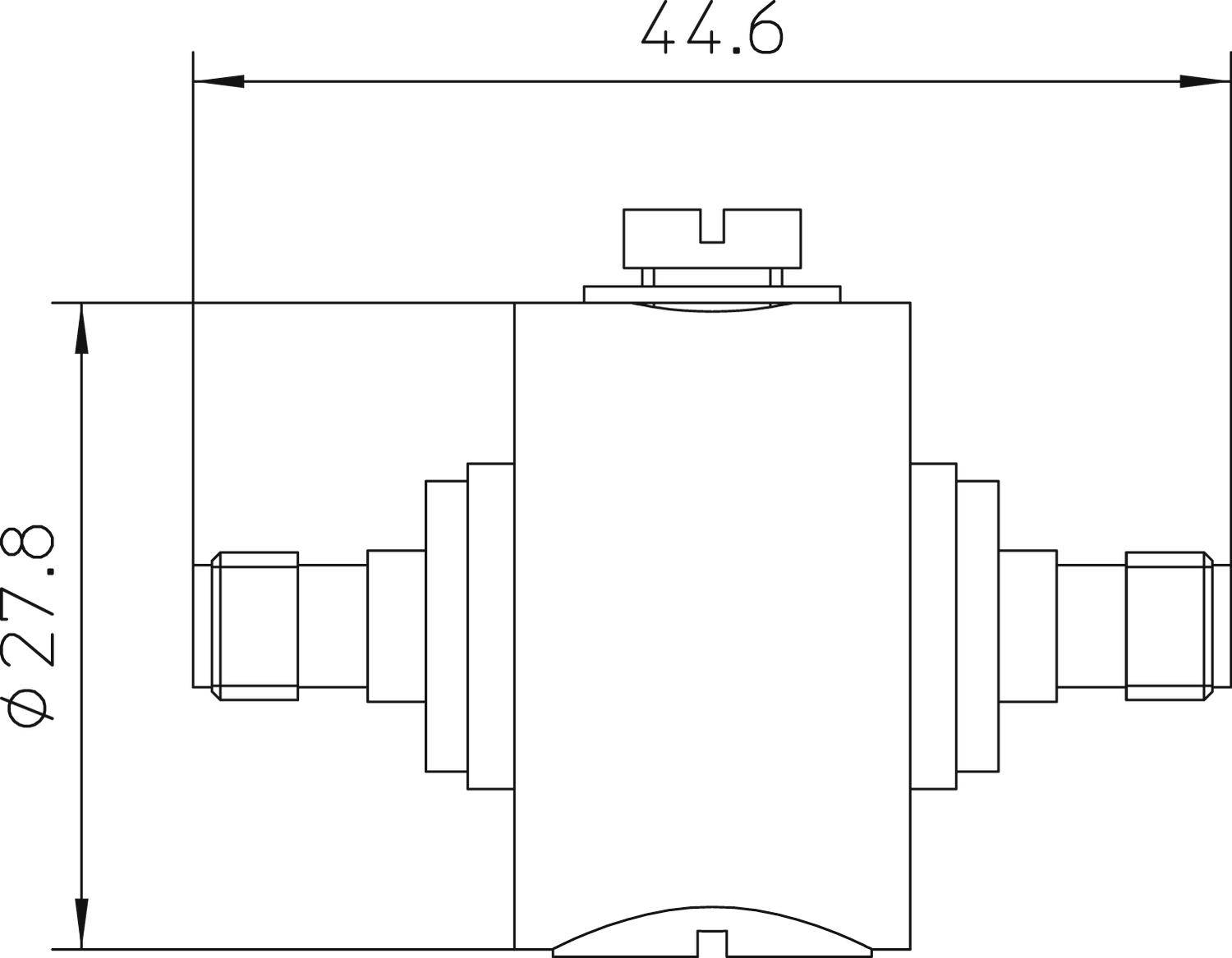

- Dim
(L x W) 44.6 mm x 27.8 mm
- Length
44.6 mm
- Width
27.8 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959162 OBO Bettermann 5093277 DS-SMA W/W Surge protection device 1 pc(s)
Description

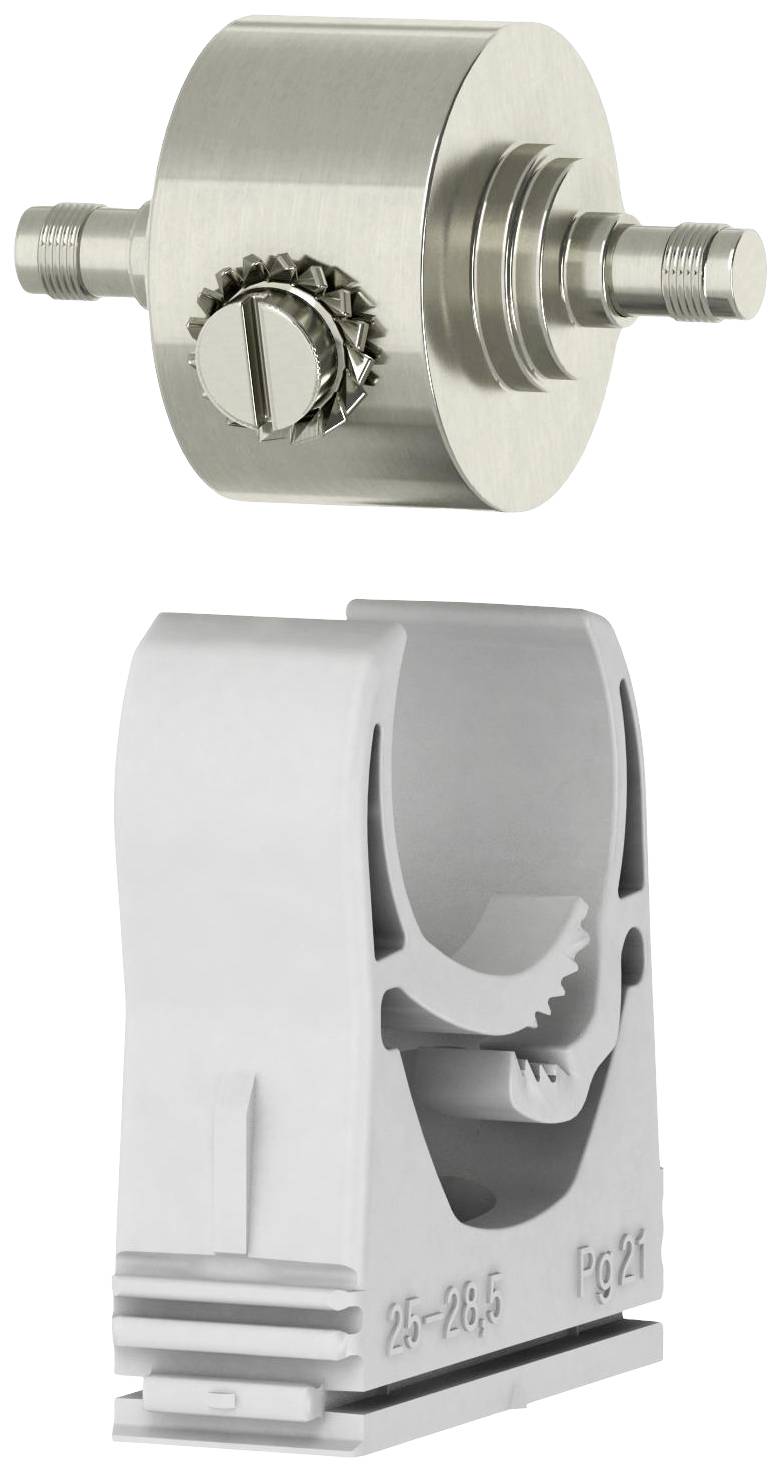

Coaxial data line protection devices for basic protection - high impulse current carrying capacity 5 kA (10/350) - simple mounting (adapter plug), m = plug, w = socket - optimum transmission behavior - with SMA connector W/W - including OBO quick clamp for easy installation - 50-O technology Application: Wireless and data technology with SMA plug
