OBO Bettermann 5093402 V10-C 0-280 Surge arrester 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 280 V
- Protection level: 1.1 kV
- With remote signalling contact: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge arrester
- Leakage current
10 kA
- Nominal voltage
230 V AC
IP20
- Manufacturer part #
5093402

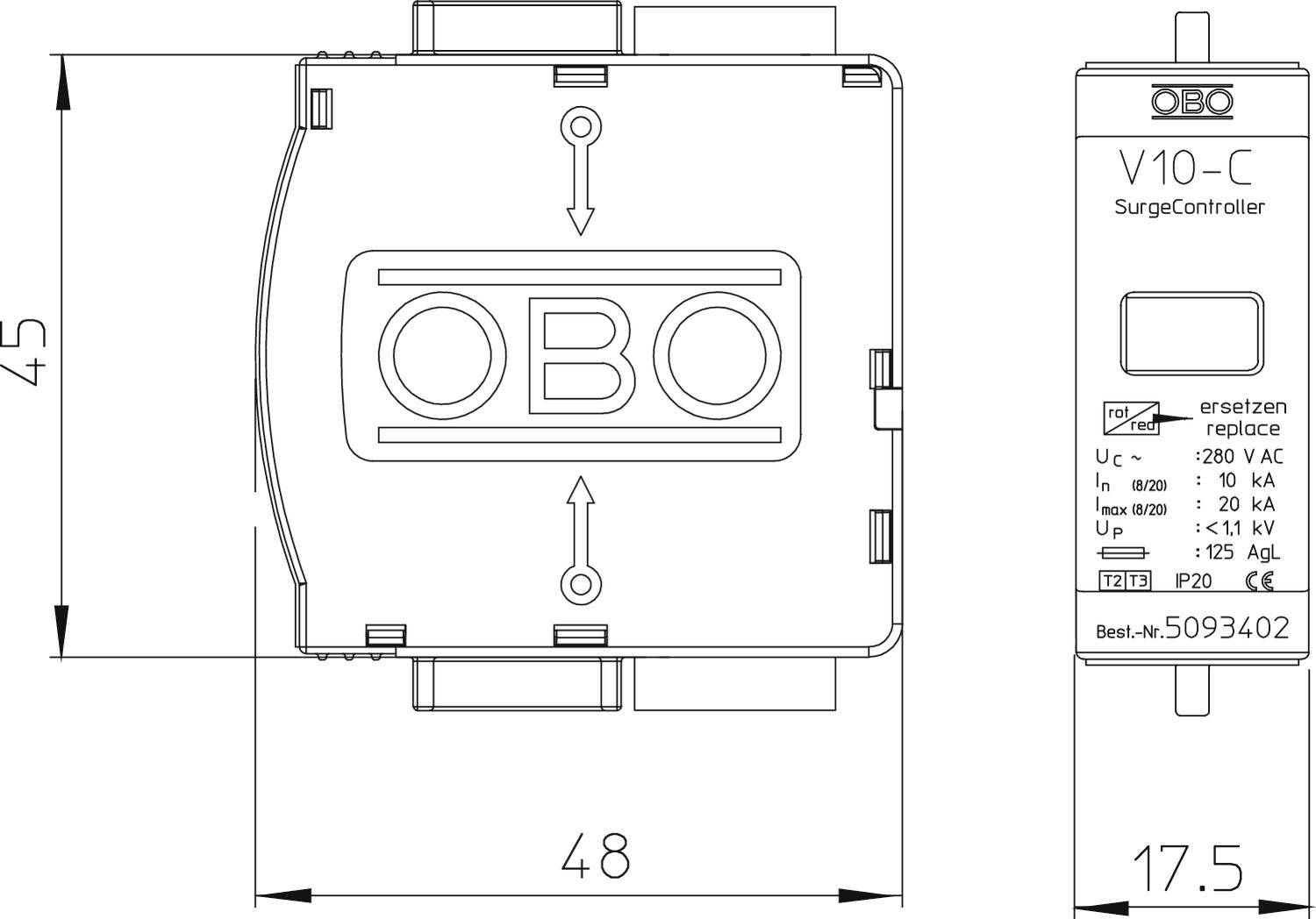

- Dim
(W x H x D) 17.5 x 45 x 48 mm
- Width
17.5 mm
- Height
45 mm
- Depth
48 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959166 OBO Bettermann 5093402 V10-C 0-280 Surge arrester 10 kA 1 pc(s)
Description
Surge controller V10 pluggable surge protection for 230/400 V networks. SPD according to EN 61643: Type 2+3 SPD according to IEC 61643, class II+III design: 1-pin can be used in TT and TN-networks, high-performance varistor technology maximum continuous operating voltage: 280 Nominal surge current (8/20): 10 Maximum leakage surge current (8/20 μs): 20 protection level:< 1.1 signaling on the device: optical telecommunication contact: no division unit TE (17.5 mm): 1 Type: V10-C 0-280 Art.-No.: 5093402
