OBO Bettermann 5093516 V50-3+FS-280 CombiController 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Pins = 3
- Lightning impulse current (10/350 μs) = 12.5 kA
- The highest continuous voltage AC = 280 V
- Nominal voltage AC = 230V
- Protection level = 1.3 kV
- Protection level L-N= 1.3 kV
- Max. Conductor cross-section (inflexible) (on/multi-wired) = 35 mm²
- Max. Conductor cross-section (flexible) (fine) = 25 mm²
- Mounting type = TH 35 standard mounting rail
- Size = 3 TE
- Remote signalling = Yes
- Signaling on the device = optical
- Test class = type 1 and 2
- Ausblasend = No
- Product type
CombiController
- Leakage current
50 kA
- Nominal voltage
230 V
IP20
- Manufacturer part #
5093516

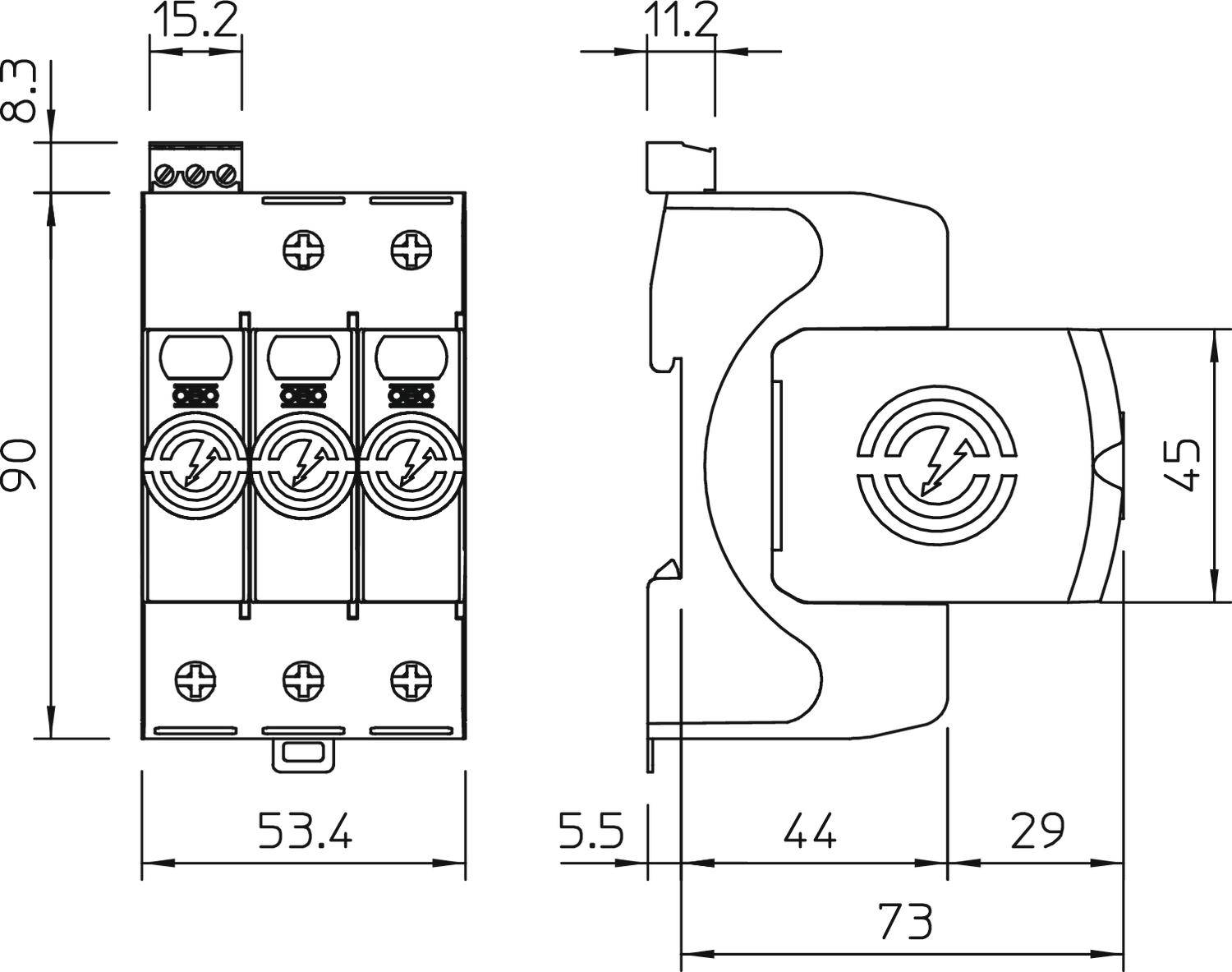

- Dim
(W x H x D) 90.0000 x 78.5000 x 53.4000 mm
- Width
90.0000 mm
- Height
78.5000 mm
- Depth
53.4000 mm
- Content
1 pc(s)
- Number of pins
3
DIN rail (top hat rail) 35 mm
3
IP20
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959168 OBO Bettermann 5093516 V50-3+FS-280 CombiController 50 kA 1 pc(s)
Description
The V50 Flash Power Combination arrester halogen-free plastic and is suitable for a lightning protection potential compensation according to VDE 0185-305 (IEC 62305). A dynamic Disconnection device disconnects and visual status display features of the modular pluggable surge arrester. The FS-version is equipped with a potential-free changeover contact, the remote signalling. The Combi controller is particularly suitable for the lightning protection potential compensation for building the lightning protection class III and IV. The Blitzstromabableitvermogen is 12.5 kA (10/350) per pin and up to 50 kA (10/350) total. The vibration-proof latching and the voltage as well as types encoding provides security and avoid confusion of upper and split. By the wedge-shaped design of the contacts is a easy insertion and even more simply remove the upper parts is possible.
