OBO Bettermann 5093988 DS-N W/W Fittings 2.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC = 130 V
- The highest continuous voltage DC = 185 V
- Lightning impulse current (10/350 μs) = 2.5 kA
- Nominal load current = 10 A
- Protection level = 800 V
- Protection level wire/wire = 800 V
- Protection level wire/Earth = 800 V
- 2.0 MHz frequency = 0.
- Cut-off frequency = 3000 MHz
- Mounting type=connector/cable adapter
- Connection 1 = N-connector
- Surge arrester monitoring = No
- With remote signalling contact = No
- Explosion tested design = No
- Product type
Fittings
- Leakage current
2.5 kA
- Manufacturer part #
5093988
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963236 OBO Bettermann 5093988 DS-N W/W Fittings 2.5 kA 1 pc(s)
Description

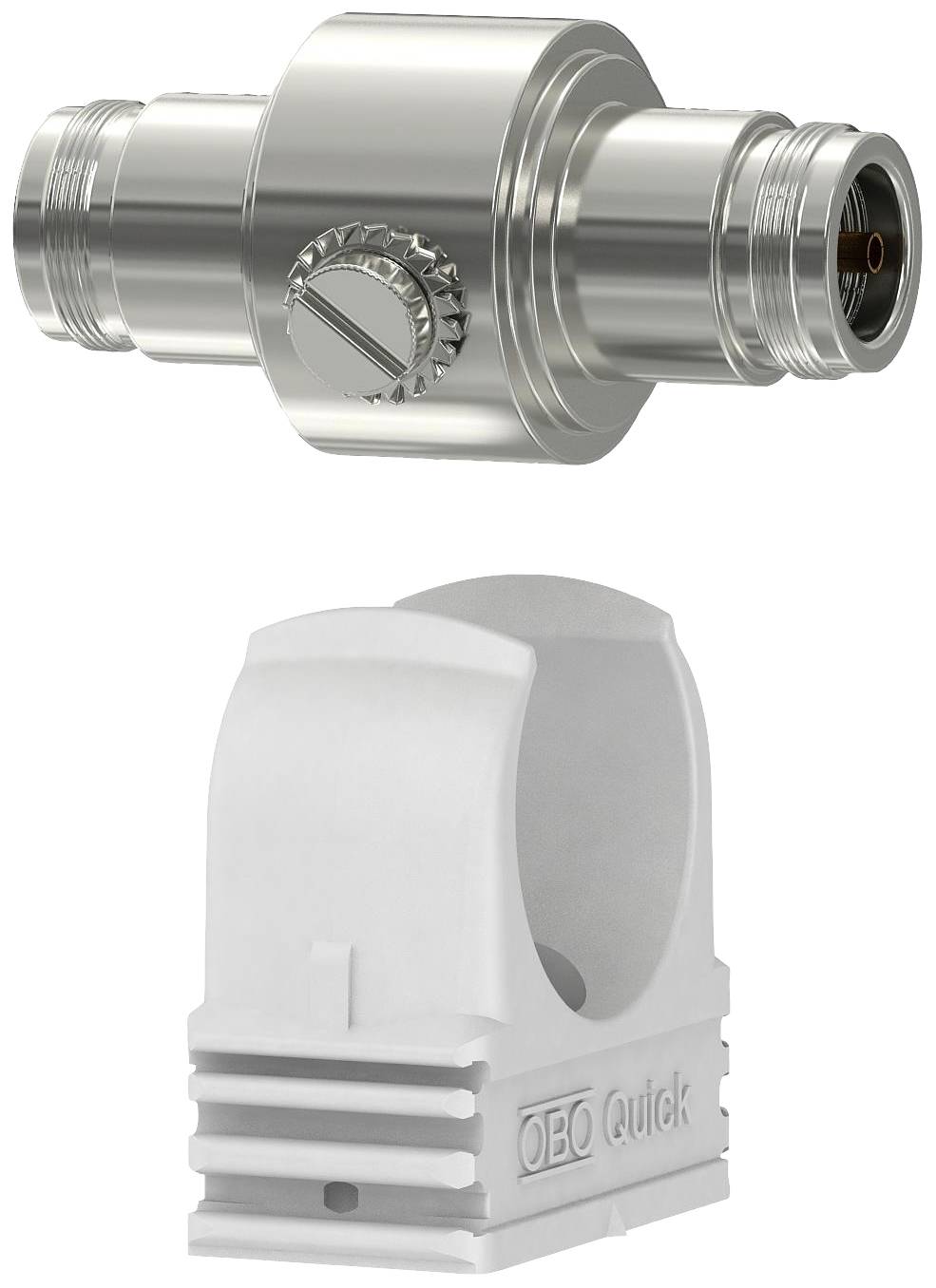

Protective device - high impulse current carrying capacity 2 x 2.5 kA (10/350) - simple mounting (adapter plug), m = plug / W = socket - optimum transmission behavior - with N connector - including OBO Quick-clamp M25 for easy installation
