OBO Bettermann 5093996 DS-N M/W Surge protection device 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 130 V
- The highest continuous voltage DC: 180 V
- Nominal surge current (8/20) 5 kA
- Protection level wire/Earth: 800 V
- Installation type: Other
- Track 1: N-connector
- Explosion tested design: no
- Product type
Surge protection device
- Leakage current
5 kA
- Operating temperature
-40 to +80 °C
IP40
- Manufacturer part #
5093996
- Compatible with (details)
High frequency cables

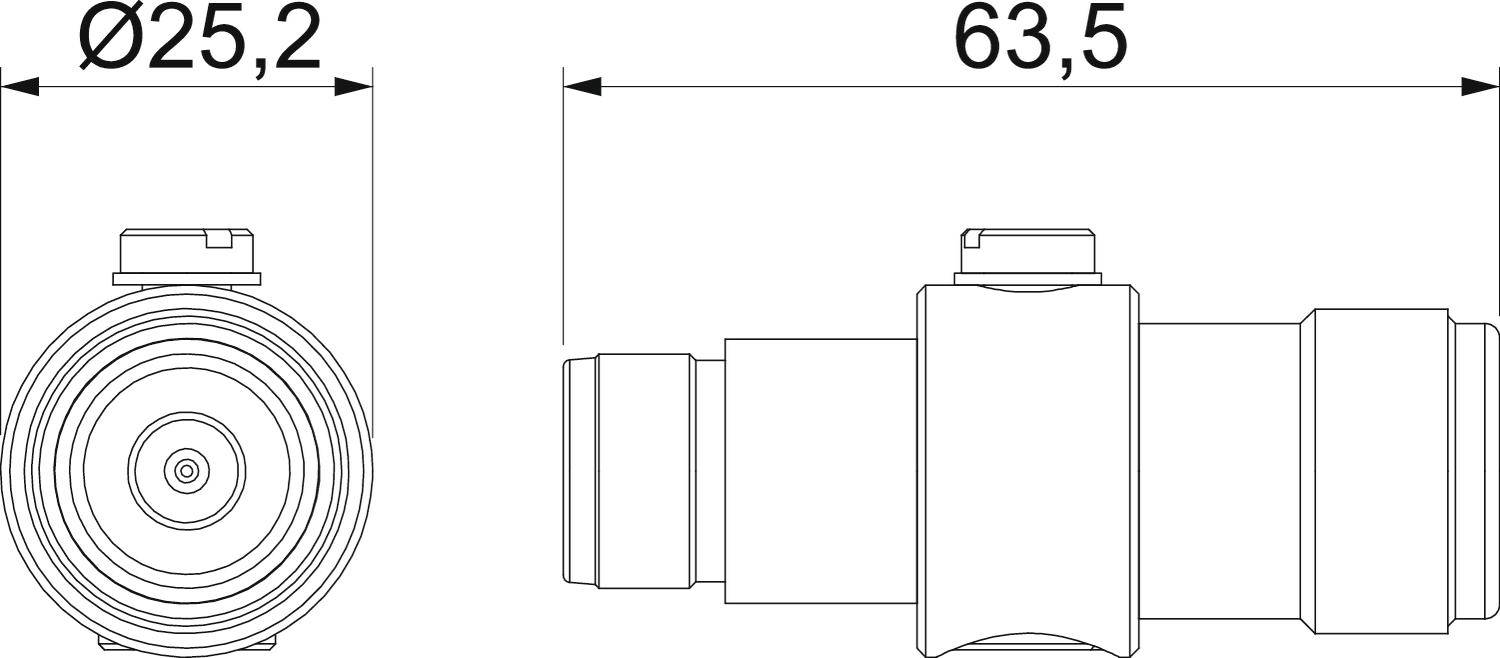

- Length
63.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958540 OBO Bettermann 5093996 DS-N M/W Surge protection device 5 kA 1 pc(s)
Description

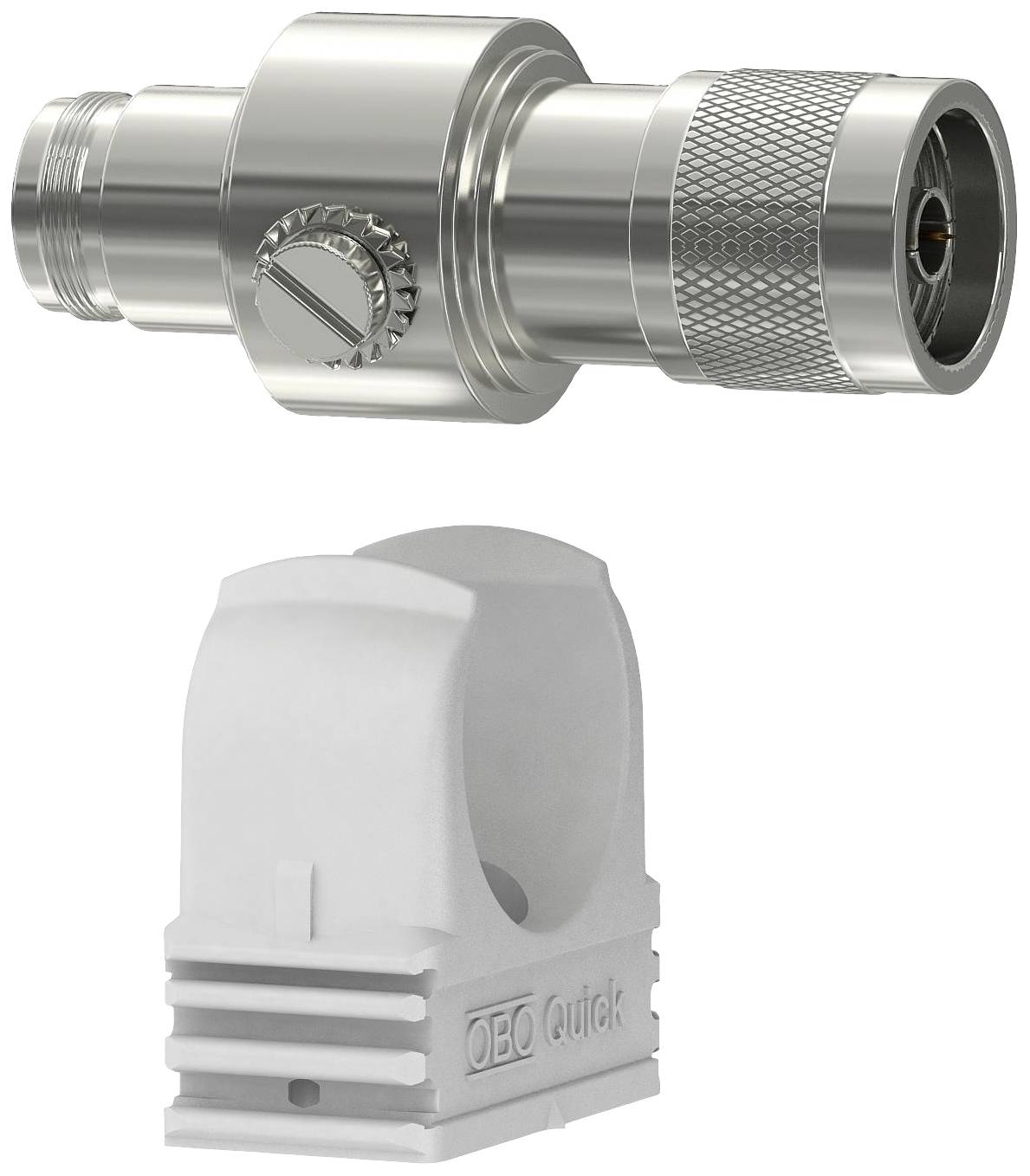

High impulse current carrying capacity 2 x 2.5 kA (10/350), Simple installation (adaptor), m = plug/w = socket, with N-connector
