OBO Bettermann 5094576 V20-C 3PHFS-600 Surge protection device 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage DC: 600 V
- Size: 4 TE
- Max. PV-voltage: 600 V
- Protection level: 2.6 kV
- With remote signalling contact: yes
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge protection device
- Leakage current
20 kA
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5094576

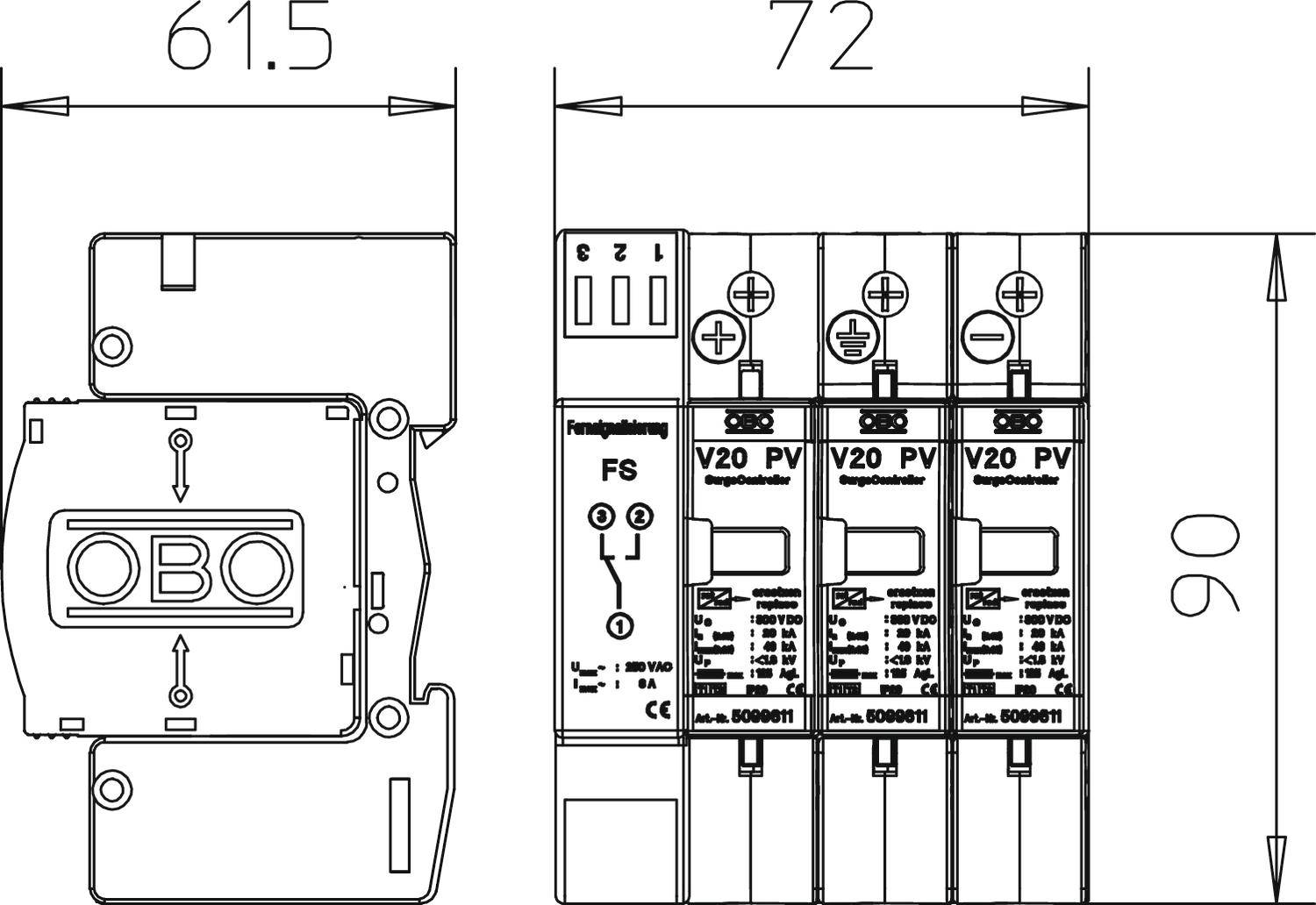

- Dim
(W x H x D) 72 x 90 x 61.5 mm
- Width
72 mm
- Height
90 mm
- Depth
61.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959155 OBO Bettermann 5094576 V20-C 3PHFS-600 Surge protection device 20 kA 1 pc(s)
Description
Surge suppressor type 2 for PV systems. Varistor arrester, pluggable with Disconnection device disconnects in error-resistant Y-circuit according to VDE 0100-712 (50539-12). Surge protection potential compensation (IEC 60364-4-44 according to VDE 0100-443). Discharge capacity up to 40 kA (8/20) per pole. Low DC protection level:< 2.6 kV and uoc max = 600 V DC. With visual function display. For use in distributor housings. Application: PV systems with or without separate insulated lightning protection system.
This text is machine translated.
This text is machine translated.
