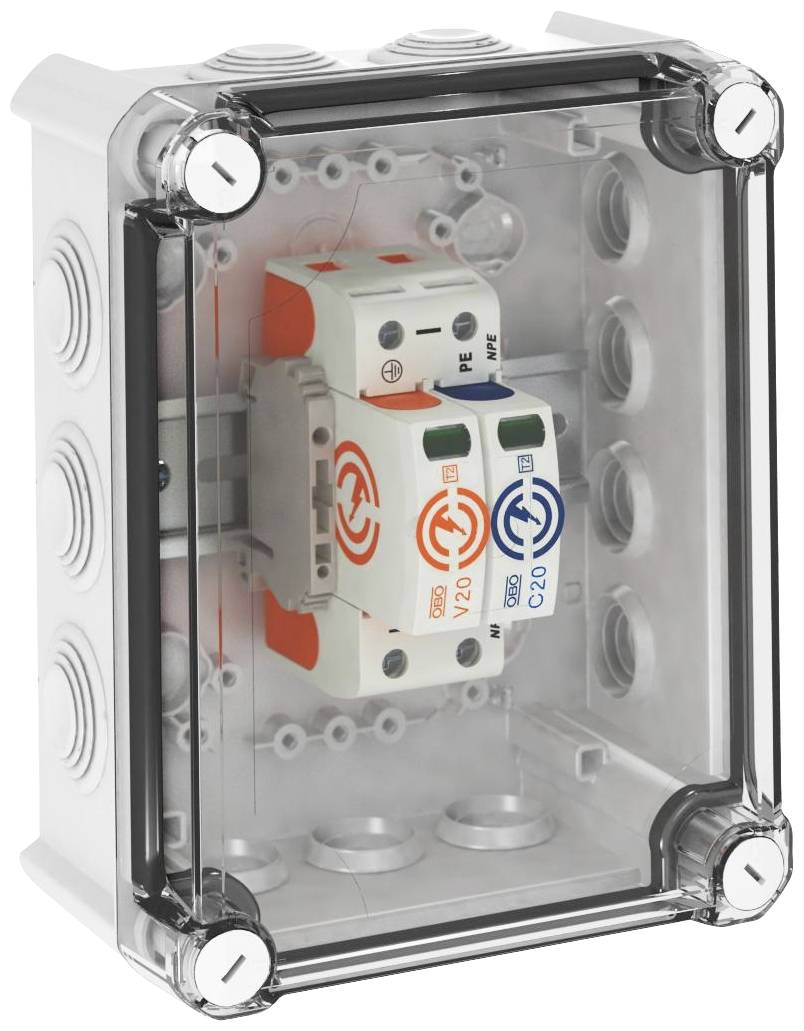

OBO Bettermann 5095381 VG-V20-1+NPE-280 Surge protection device 20 kA 1 pc(s)

System solution for the lightning current and overvoltage protection of AC systems. The V20 surge suppressor halogen-free plastic and is suitable for a surge protection potential compensation (IEC 60364-4-44 according to VDE 0100-443). A dynamic Disconnection device disconnects and visual status display features of the modular pluggable surge arrester. The Npe-version is equipped with a high-capacity transmission path between zero and protective conductor. The Surge controller is particularly suitable for the equipotential bonding in the main and sub-distributors, depending on the type in the areas of TN, TT networks. Thanks to the high-performance varistors, the discharge capacity up to 40 kA (8/20) per pole. The vibration-proof latching and the voltage as well as types encoding provides security and avoid confusion of upper and split. By the wedge-shaped design of the contacts is a easy insertion and even more simply remove the upper parts is possible. Via the QR code can be applied on the rating plate with the help of mobile devices quickly and easily connect additional technical product information.

This text is machine translated.
