OBO Bettermann 5096875 MCD 50-B 3+1-VG Surge protection device 125 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 1.3 kV
- Follow current extinguishing capability: 25kA
- Size: 8 TE
- With remote signalling contact: no
- Ausblasend: no
- Signaling on the device: without
- Test class type 1: yes
- Product type
Surge protection device
- Leakage current
125 kA
- Nominal voltage
230 V AC
- Type
Installation type: pre-mounted in the housing
- Operating temperature
-40 to +80 °C
IP54
- Manufacturer part #
5096875

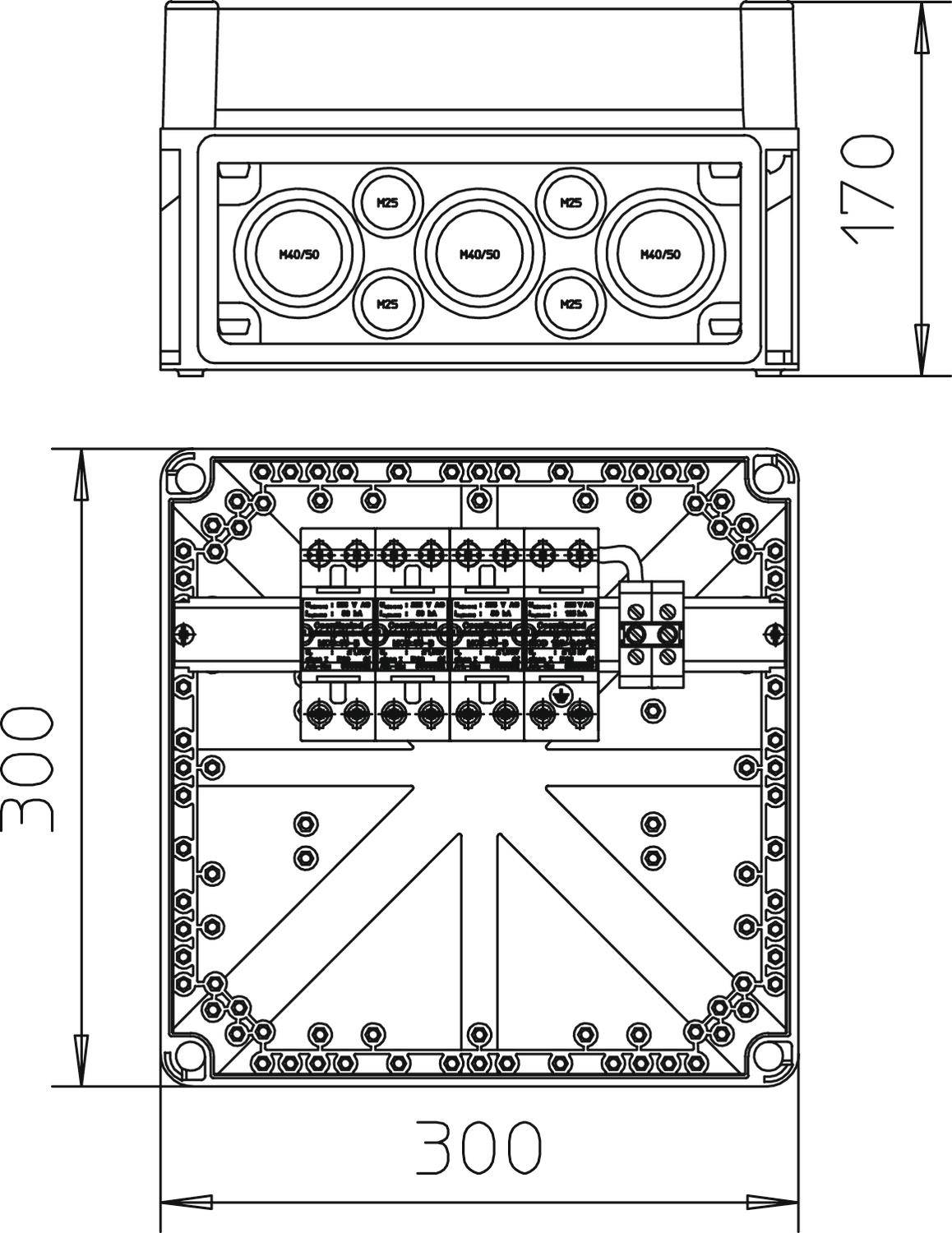

- Dim
(W x H x D) 300 x 300 x 170 mm
- Width
300 mm
- Height
300 mm
- Depth
170 mm
- Content
1 pc(s)
- Mounting type
Enclosure
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955110 OBO Bettermann 5096875 MCD 50-B 3+1-VG Surge protection device 125 kA 1 pc(s)
Description

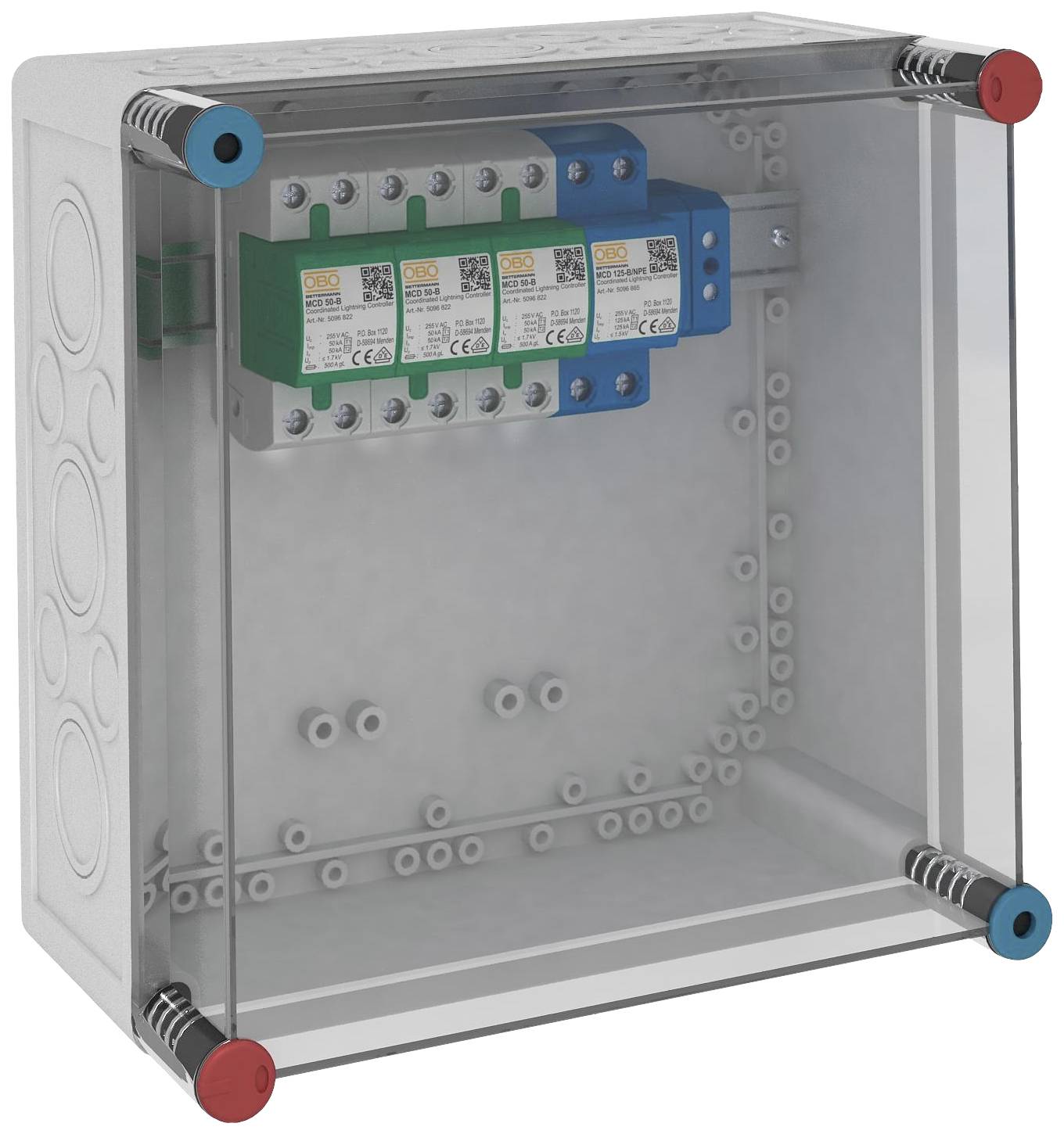

Combination arrester pre-installed in IP65 housing for use in TN-S and TT systems. VG...: lightning arresters system solution type 1 (Class B) according to DIN EN 61643. Lightning controller MCD 50-B and MCD125-B/NPE mounted in Insulation housing IP65, housing sealable impulse current 125 kA (10/350 μs), BET-tested corresponds to the requirements of the VDN Directive 2. Edition 2004 protection level< 1,3kV encapsulated, not ausblasende radio link suitable for TN-S and TT-Power Systems Application Example: system solution for use in the count range according to VDN Directive 2. Edition 2004.
