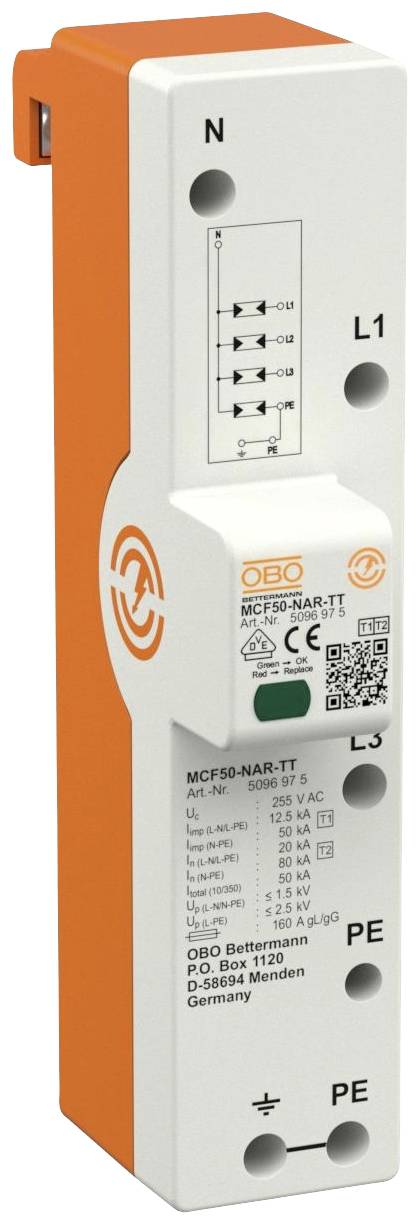

OBO Bettermann 5096975 MCF50-NAR-TT Lightning conductor 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surge current (10/350 µs): 12 kA
- Maximum continuous voltage 255 V/AC
- Mounting type: Bus bar
- Mains form TN: Yes
- Mains form TN-C: Yes
- Mains form TN-C-S: Yes
- Mains form TN-S: Yes
- Mains form TT: Yes
- Number of pins: 4
- Protection level 2 kV
- Protection level L-N: 2 kV
- Protection level N-PE: 2 kV
- Signaling on the device: Optical
- Max. Conductor cross-section 35 mm²ax. Conductor cross-section 35 mm²
- Product type
Lightning conductor
- Surge protection for
40 mm busbar
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Type
Max. Conductor cross-section 35 mm²
- Manufacturer part #
5096975
- Compatible with (details)
Energy Engineering
- Content
1 pc(s)
- UKCA
not relevant
Description
The MCF50-NAR combination arrester type 1+2 for lightning protection potential equalization according to VDE 0185-305 (IEC 62305) is suitable for use in the pre-counter range according to VDE-AR-N 4100. The MCF50-NAR can be used in buildings with lightning protection or in connection with overhead power supply in TN-S and TT systems. It is mounted on 40 mm busbars in the connection compartment on the line side. The protection level of <=1.5 kV protects the terminals in the system. The lightning current dissipative capacity is 50 kA (10/350) total and 12.5 kA (10/350) per pole, sequence extinguishing up to 50 kA with a max. pre-fuse up to 160 A GL/GG.
