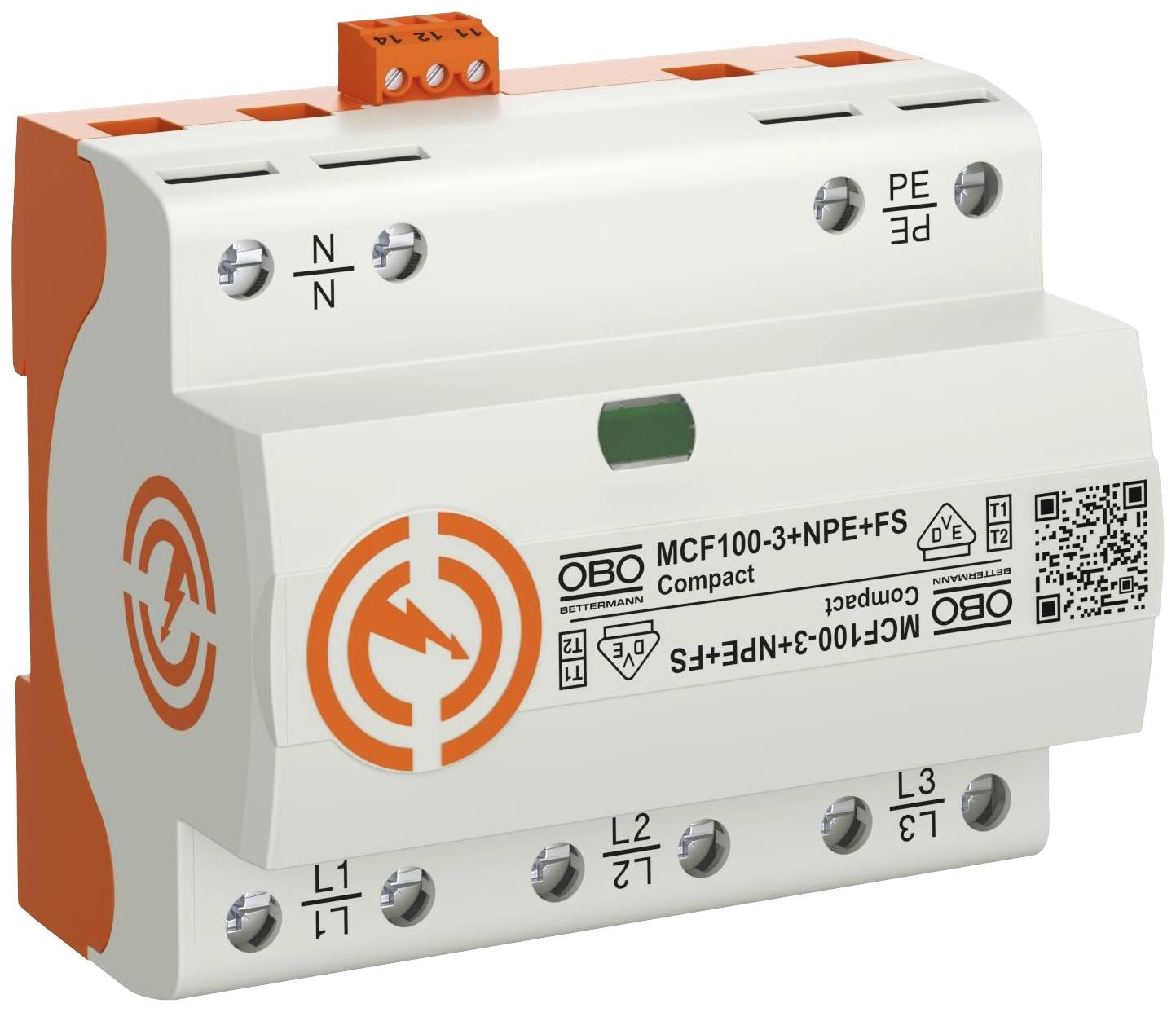

OBO Bettermann 5096987 MCF100-3+NPE+FS Lightning conductor 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 1.5 kV
- Size: 7 TE
- Signaling on the device: optical
- Product type
Lightning conductor
- Leakage current
25 kA
- Nominal voltage
230 V AC
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5096987

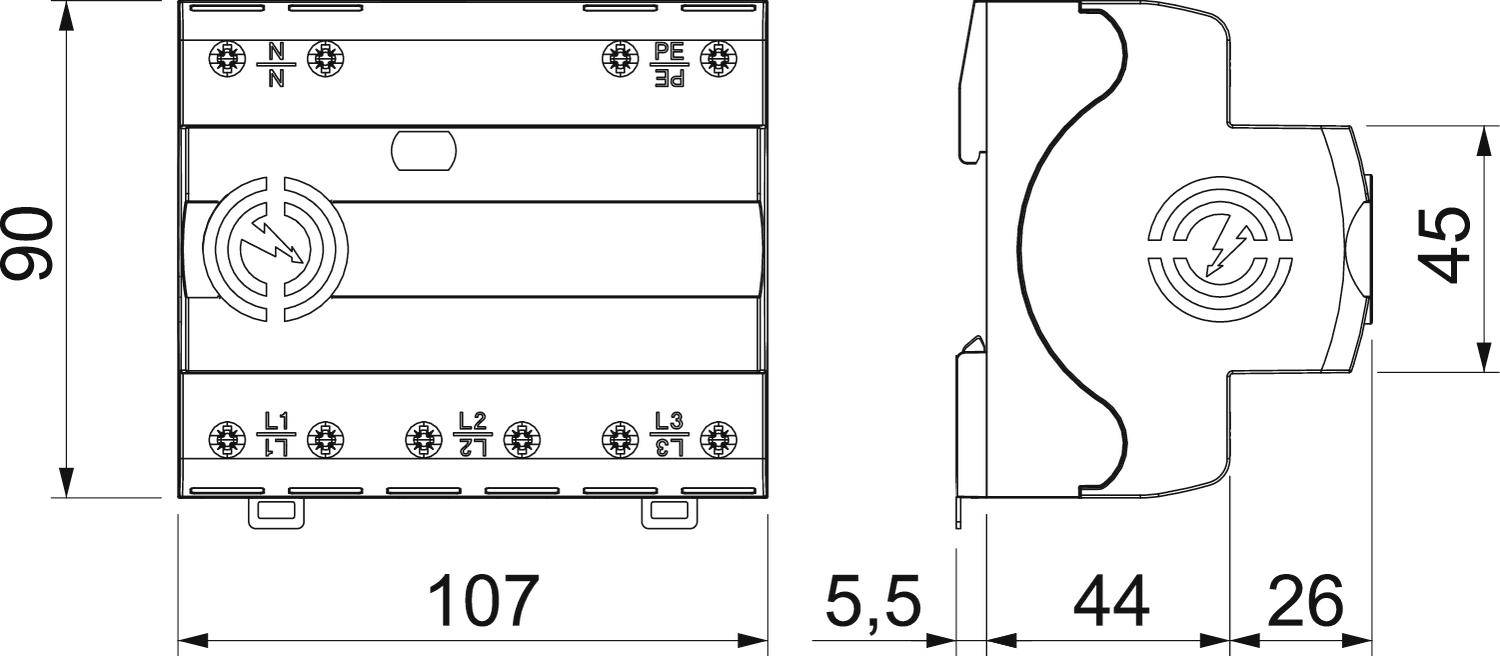

- Dim
(W x H x D) 107 x 90 x 75.5 mm
- Width
107 mm
- Height
90 mm
- Depth
75.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960490 OBO Bettermann 5096987 MCF100-3+NPE+FS Lightning conductor 25 kA 1 pc(s)
Description
Combination arrester, lightning and surge arresters type 1+2-protection level< 1.5 kV - for lightning protection potential compensation according to VDE 0185-305 (IEC 62305) - Lightning current discharge capacity up to 100 kA (10/350) 3 + NPE power sequence current-extinguishing 50 kA Ipeak, arrester fusing to 315 A gL/gG-meets the requirements of the VDEW directive and the E VDE-AR-N 4100 for use in the count range-encapsulated not ausblasende radio links arrester for use in distributor housings application: industrial systems and building with equalizes the lightning protection class I to IV.
