OBO Bettermann 5097976 TKS-B Surge protection device 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage DC = 150 V
- The highest continuous voltage AC = 120 V
- The highest continuous voltage DC = 170 V
- Lightning impulse current (10/350 μs) = 6 kA
- Nominal surge current (8/20) 20 kA
- Nominal load current = 20 A
- Protection level wire/wire = 500 V
- Protection level wire/earth=500 V
- Mounting type = TH 35 standard mounting rail
- Connection 1 = terminal
- Explosion tested design = No
- Product type
Surge protection device
- Leakage current
20 kA
- Nominal voltage
150 V
- Manufacturer part #
5097976
- Factory colour
Multicolour
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961871 OBO Bettermann 5097976 TKS-B Surge protection device 20 kA 1 pc(s)
Description

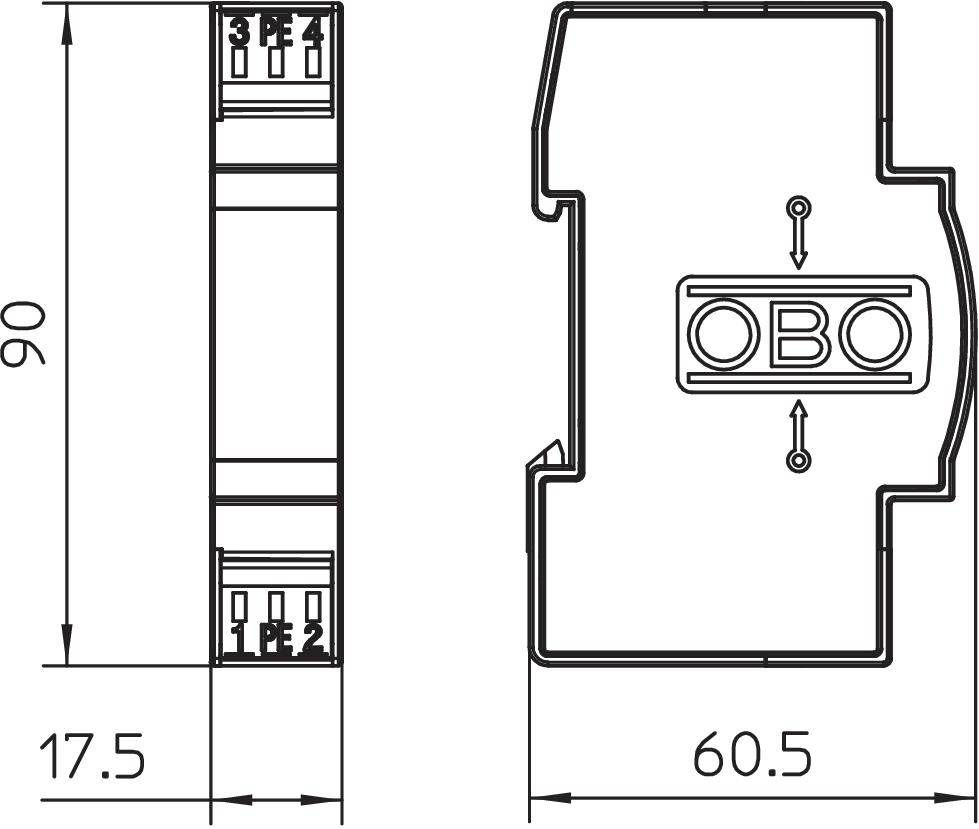

Surge protection, for use in measurement, control and regulation technology, as well as telecommunications systems. Basic protection for the lightning protection equipotential bonding. High impulse discharge capacity 6 kA (10/350), with installation-friendly, screw less terminals. The space-saving, 17.5 mm grid dimension. Application: universal use on 35 mm top hat profile rail in any conventional manifold.
