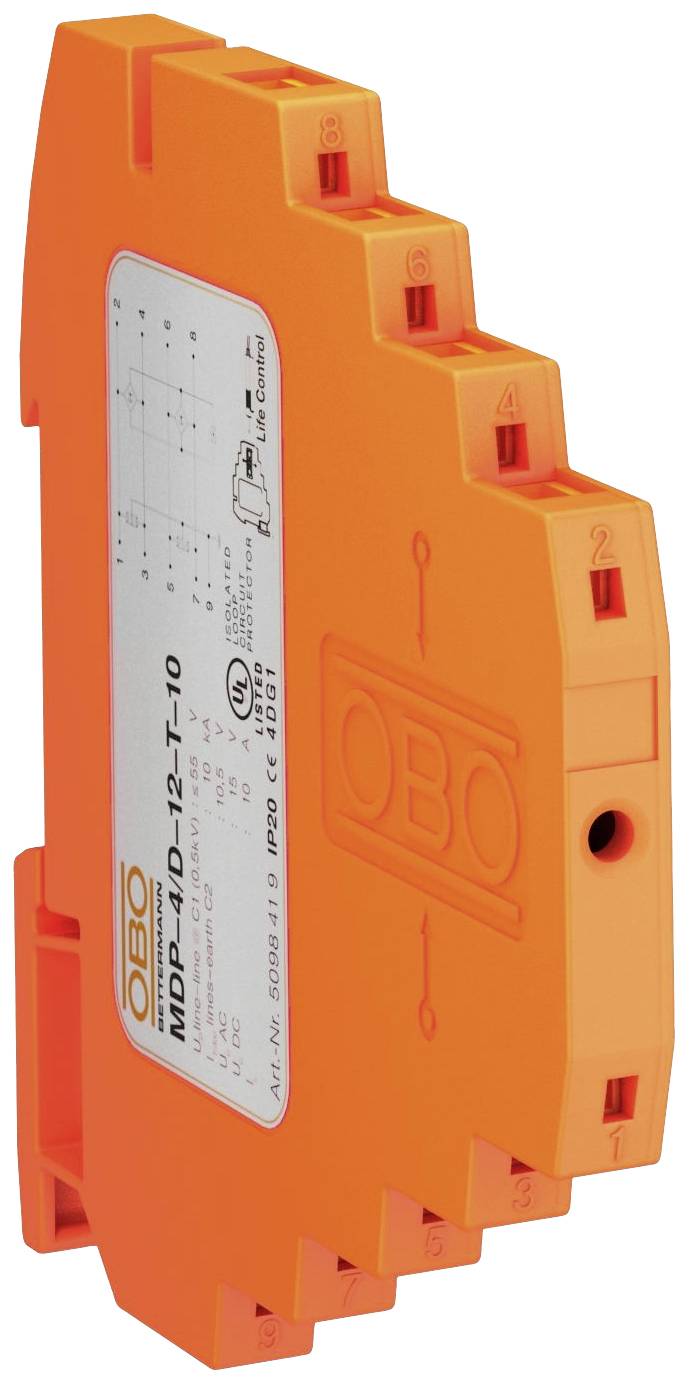

OBO Bettermann 5098419 MDP-4 D-12-T-10 Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 10.5 V
- The highest continuous voltage DC: 15 V
- Nominal load current 10 A
- Protection level wire/wire: 55 V
- Protection level wire/Earth: 800 V
- Frequency: 0./00 MHz
- Track 1: Terminal
- Surge arrester monitoring: no
- With remote signalling contact: no
- Signaling on the device: without
- Explosion tested design: no
- Product type
Surge protection device
- Surge protection for
Switchboards
- Nominal voltage
12 V AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5098419

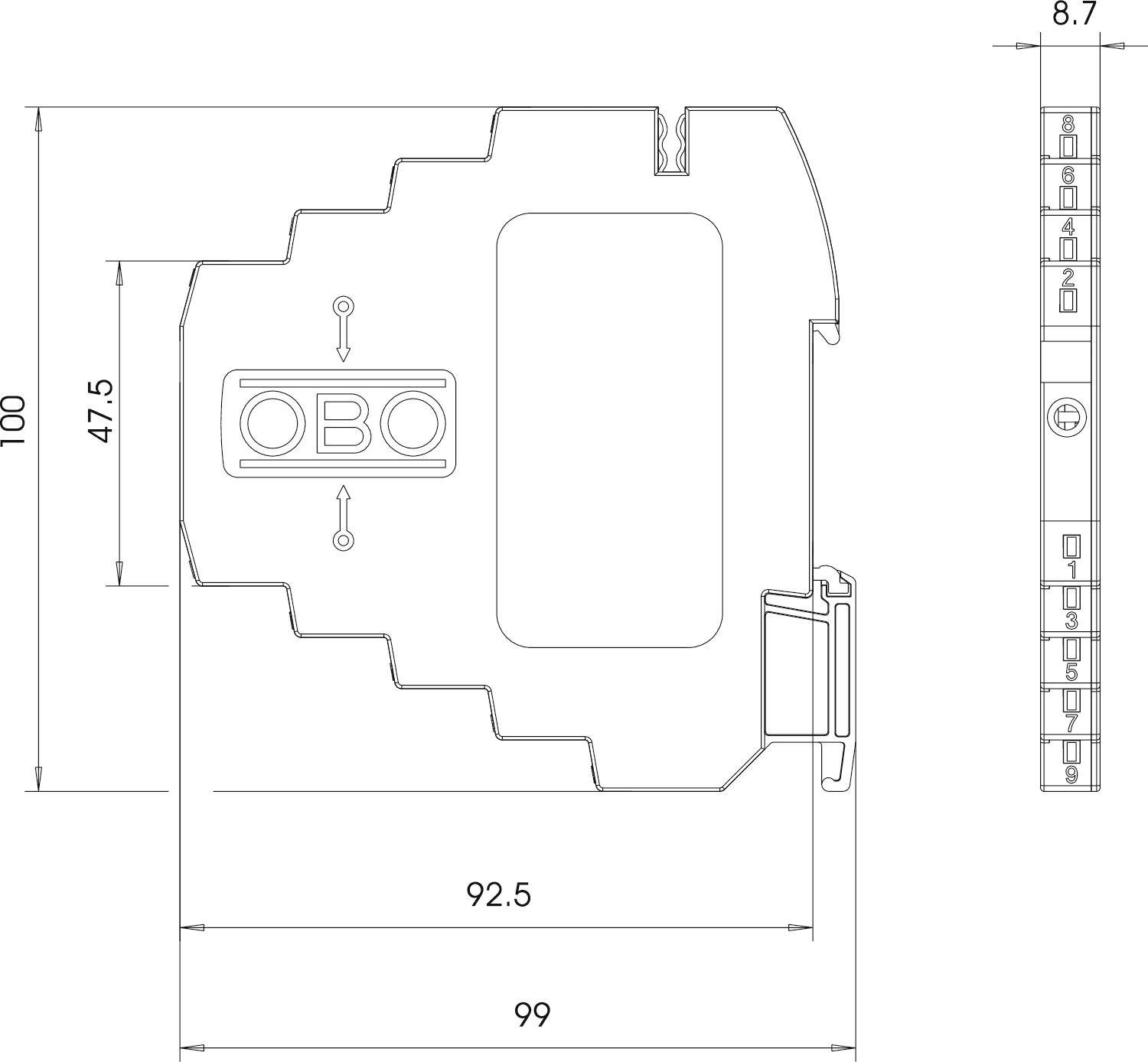

- Dim
(W x H x D) 8.7 x 100 x 99 mm
- Width
8.7 mm
- Height
100 mm
- Depth
99 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963235 OBO Bettermann 5098419 MDP-4 D-12-T-10 Surge protection device 1 pc(s)
Description
Flash barrier with test function design 12 V rated load current 10 A-protection equipment for multi-core systems - direct shield ground and with screw less terminals-space-saving width of only 8.7 mm-protective circuit can be tested with Life Control-high bandwidth up to 100 MHz-UL listed (4 DG 1) Application: universal use on 35 mm top hat profile rail in any conventional manifold.
