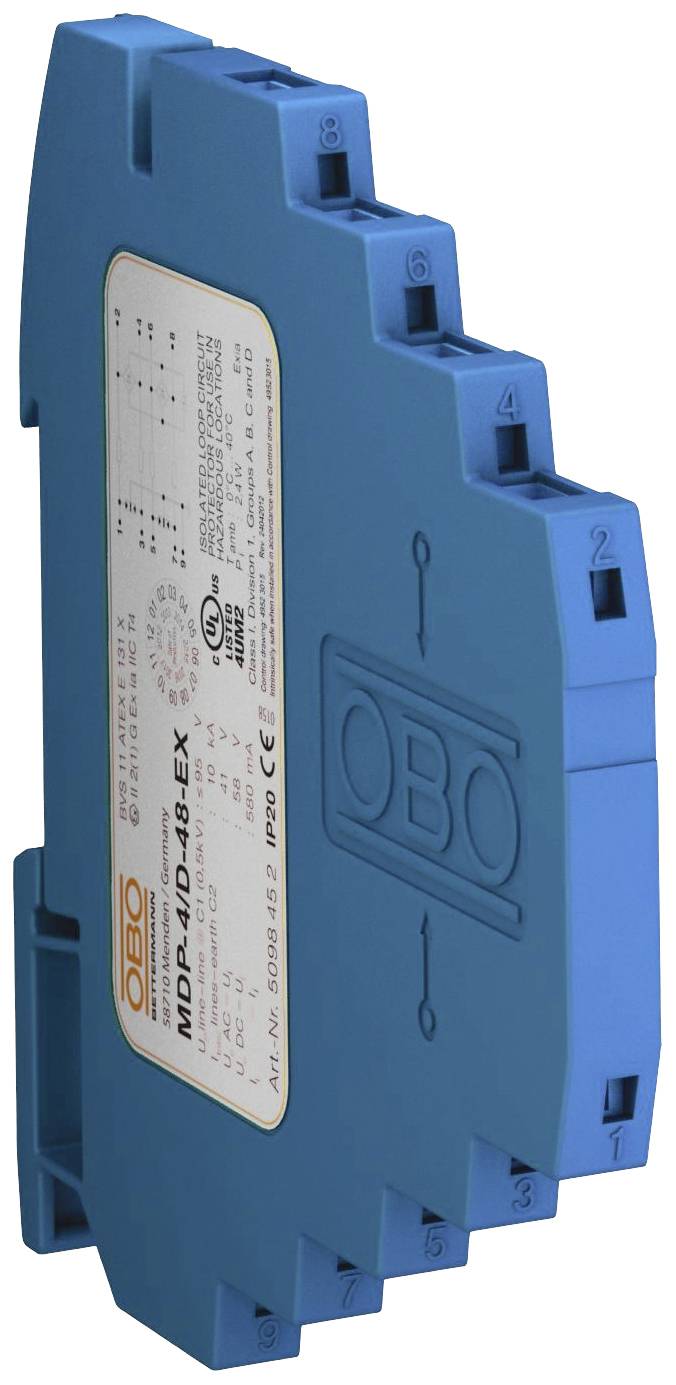

OBO Bettermann 5098452 MDP-4 D-48-EX Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage AC = 48 V
- The highest continuous voltage AC = 41 V
- The highest continuous voltage DC = 58 V
- Nominal load current = 0.58 A
- Protection level wire/wire = 95 V
- Protection level wire/Earth = 800 V
- Signaling on the device = without
- Mounting type = TH 35 standard mounting rail
- Connection 1 = terminal
- With remote signalling contact = No
- Explosion tested design = Yes
- Product type
Surge protection device
- Surge protection for
Switchboards
- Nominal voltage
48 V
- Manufacturer part #
5098452
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964591 OBO Bettermann 5098452 MDP-4 D-48-EX Surge protection device 1 pc(s)
Description
Flash barrier for intrinsically safe measuring circuits, protective device for multi-core systems with direct shield earthing, ex-tested for intrinsically safe measuring circuits - High Bandwidth up to 100 MHz Application: universal use on 35 mm top hat profile rail in any conventional manifold
