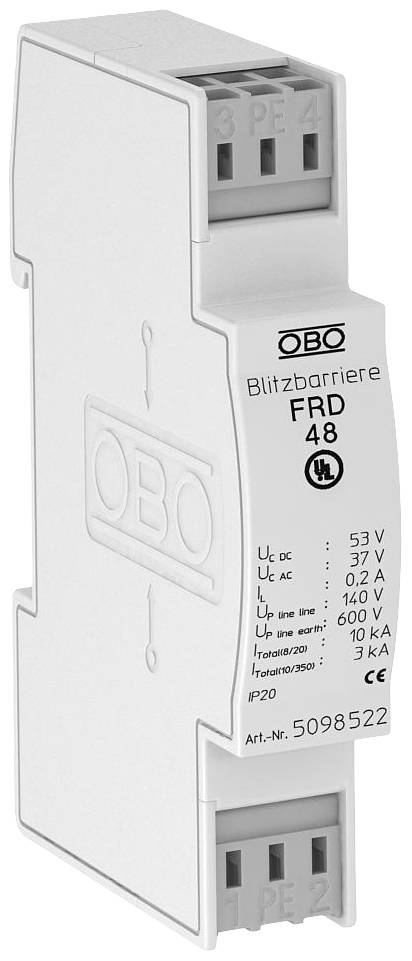

OBO Bettermann 5098522 FRD 48 Surge protection device 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC = 37.5 V
- The highest continuous voltage DC = 53 V
- Lightning impulse current (10/350 μs) = 6 kA
- Nominal surge current (8/20) 10 kA
- Nominal load current = 0.2 A
- Protection level wire/wire = 500 V
- Protection level wire/Earth = 125 V
- Mounting type = TH 35 standard mounting rail
- Connection 1 = terminal
- Explosion tested design = No
- Product type
Surge protection device
- Leakage current
10 kA
- Manufacturer part #
5098522
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957802 OBO Bettermann 5098522 FRD 48 Surge protection device 10 kA 1 pc(s)
Description

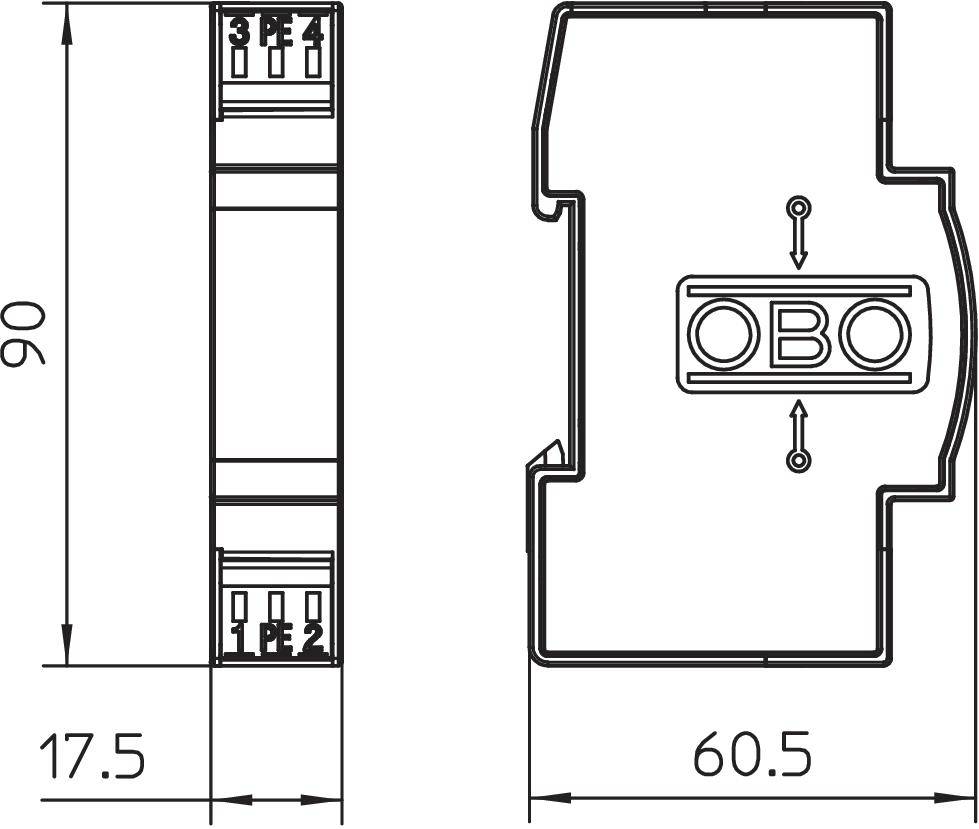

Flash barrier type FRD, over voltage protection (medium and fine protection) for use in measurement and control systems. Standard version for double wire systems, two-stage protective circuit, with installation-friendly, screw less terminals; in space-saving, 17.5 mm grid dimension; with integrated endkopplungs-widerstanden in Long Branch.
