OBO Bettermann 5401879 101 ALU-3000 HVI pole 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

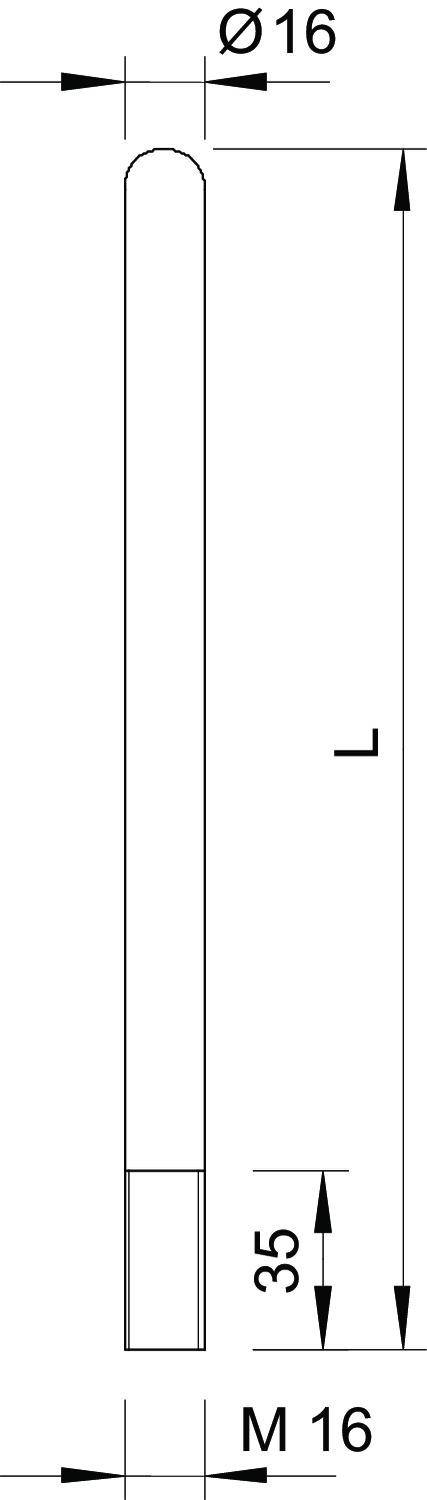

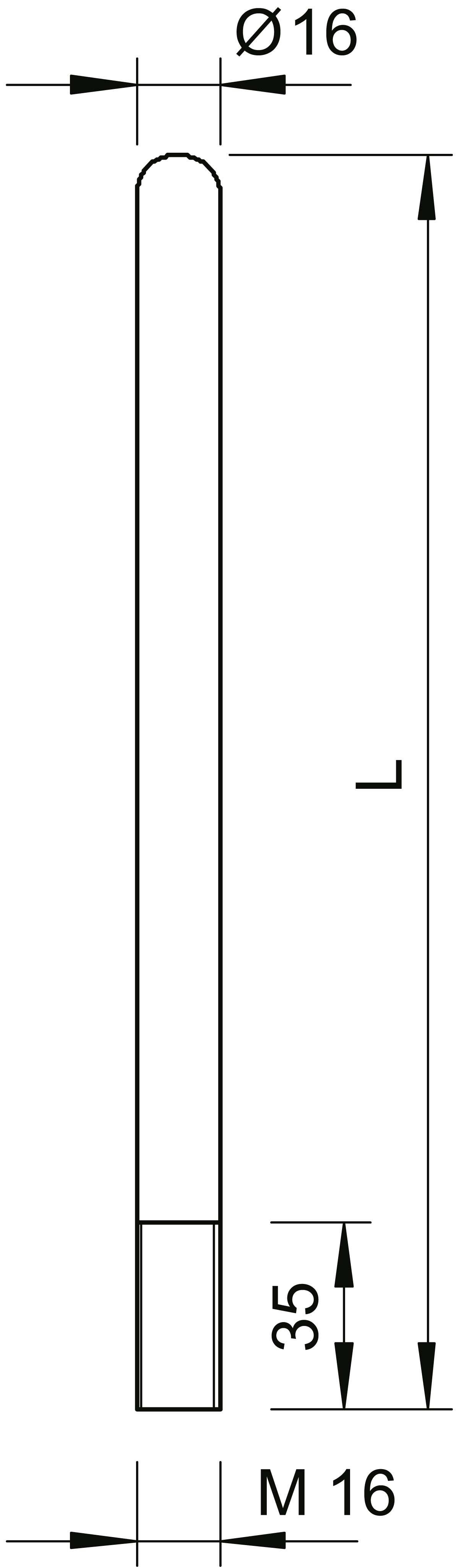

- Length: 3000 mm
- Diameter 16 mm
- Design: Support rod with thread
- Material: Aluminium
- Surface protection: Untreated
- Connection: Round wire
- High-voltage resistant insulated design: No.
- Product type
HVI pole
- Type
Catch rod with thread
- Manufacturer part #
5401879
- Dim
(L x W x H) 3000.00 x 16 x 3000 mm
- Length
3000.00 mm
- Width
16 mm
- Height
3000 mm
- Content
1 pc(s)
- Material (details)
Aluminium
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159886 OBO Bettermann 5401879 101 ALU-3000 HVI pole 1 pc(s)
Description
Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
From a free length of >2.5 m an additional mounting e.g. insulated is made
Spacer recommended
Ø 16 mm, aluminum
For pedestal system with M16 internal thread
This text is machine translated.
From a free length of >2.5 m an additional mounting e.g. insulated is made
Spacer recommended
Ø 16 mm, aluminum
For pedestal system with M16 internal thread
