OBO Bettermann 5408018 isCon PR 90 SW Cable 100 m
EAN:
Part number:
Item no:
Technical specifications

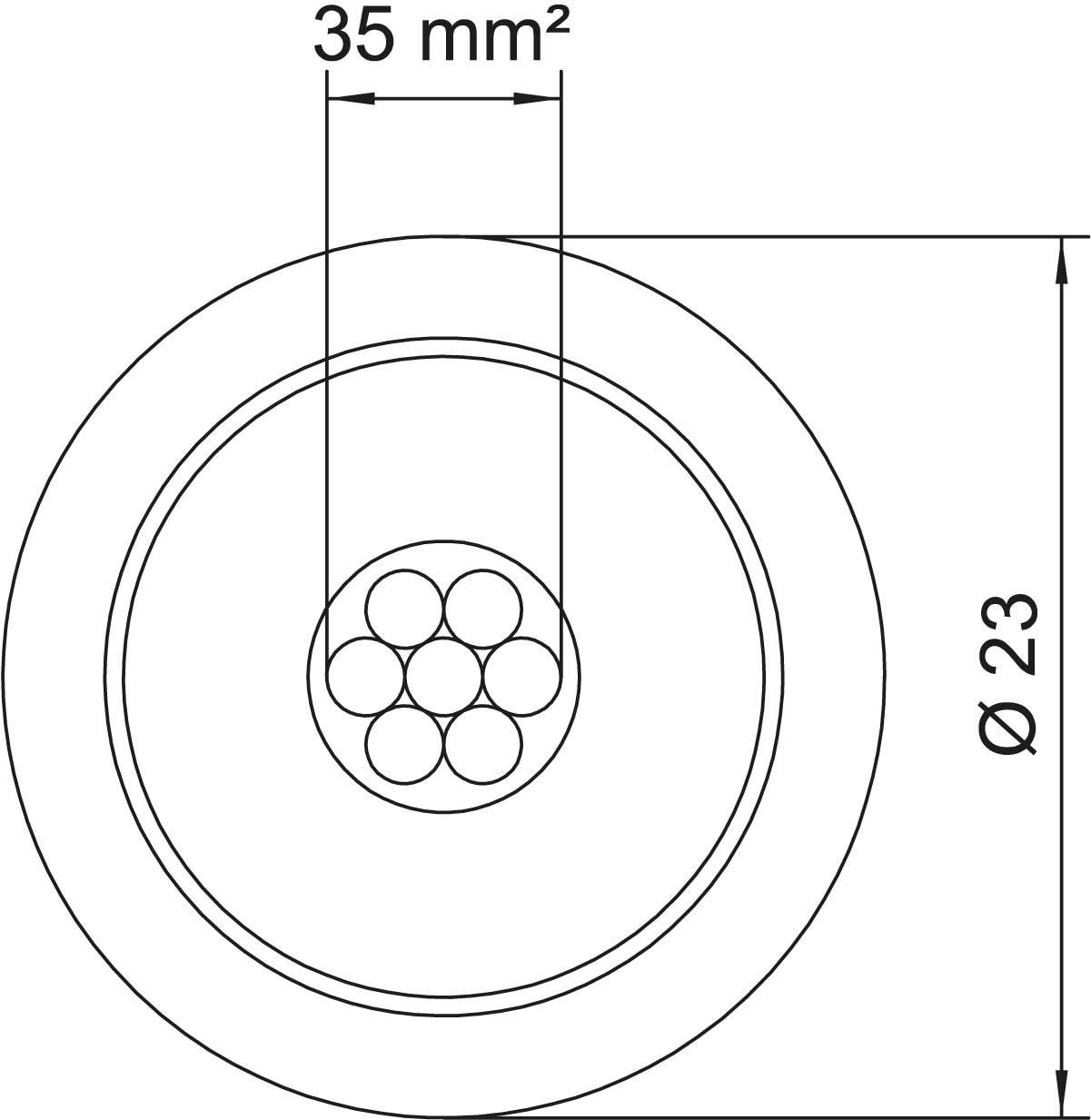

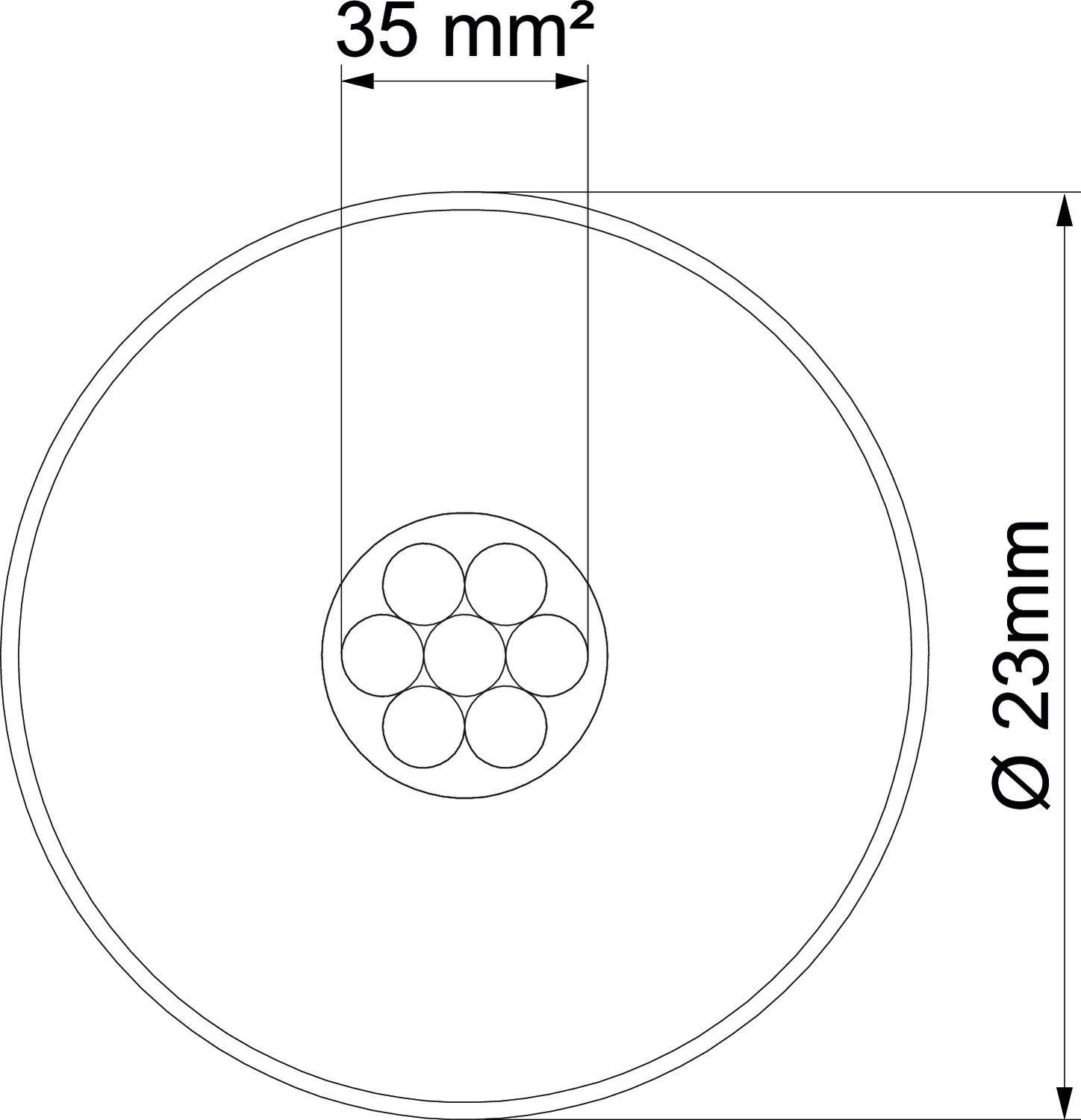

- Wire diameter 23 mm
- Conductor cross-section: 35 mm²
- Outer diameter including cover / coating: 23 mm
- Surface protection: Untreated
- Colour, black
- Max. Equivalent separation distance s (solid building materials): 0.9 m.
- Product type
Cable
- Manufacturer part #
5408018
- Factory colour
Black
- Length
100 m
- Content
100 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406244 OBO Bettermann 5408018 isCon PR 90 SW Cable 100 m
Description
Please refer to the installation instructions for the installation of the OBO iSCON®Premium cable.
High-voltage resistant, insulated conductor
without sliding discharge
Tested in accordance with IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
Equivalent separation distance se = 0.90 m (air) and se = 1.8 m (solid building material)
Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
halogen-free
Fire load 4.2 kWh/m
This text is machine translated.
High-voltage resistant, insulated conductor
without sliding discharge
Tested in accordance with IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
Equivalent separation distance se = 0.90 m (air) and se = 1.8 m (solid building material)
Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
halogen-free
Fire load 4.2 kWh/m
This text is machine translated.
Scope of delivery

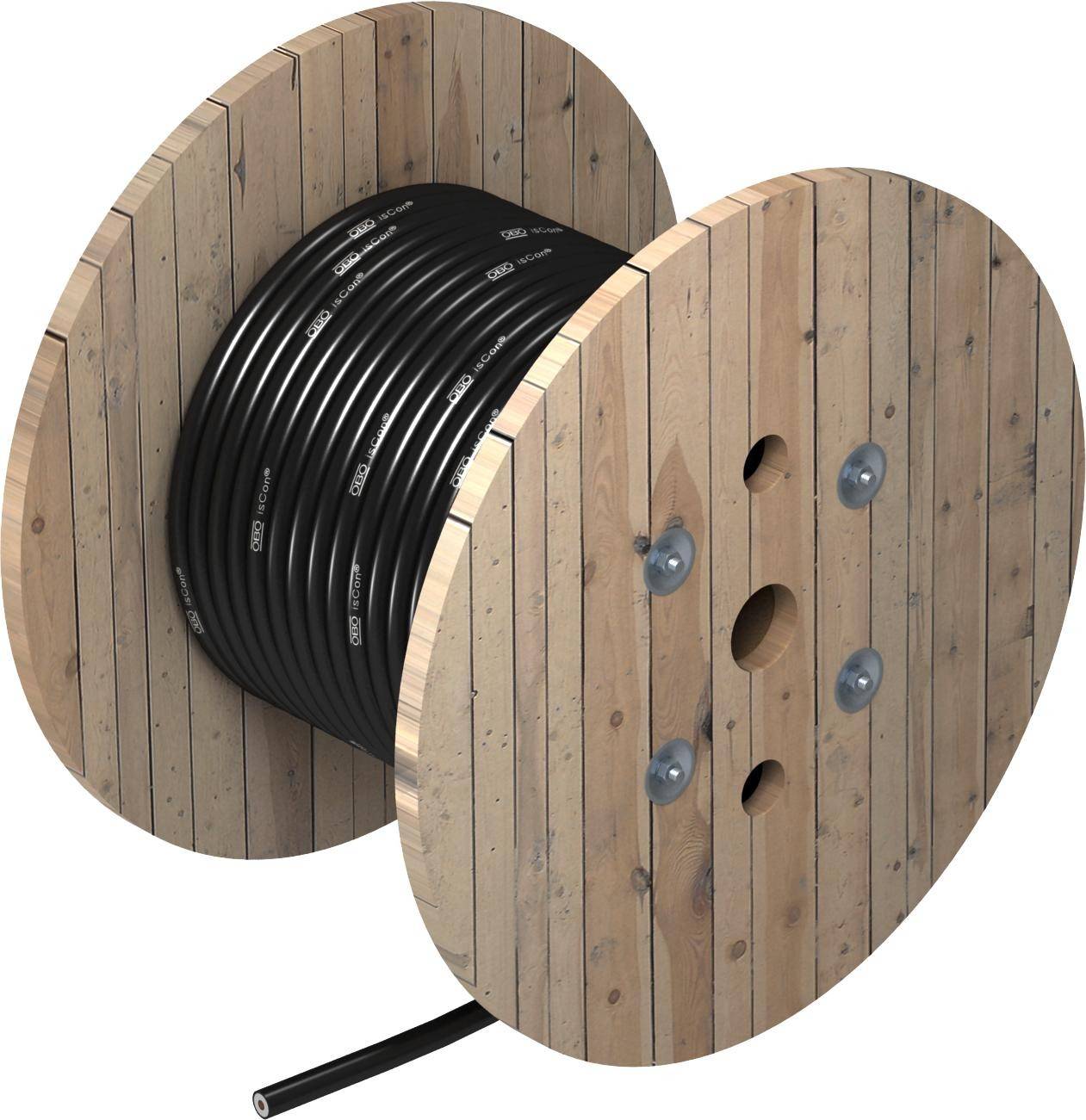

- 1 x 100 m cable
