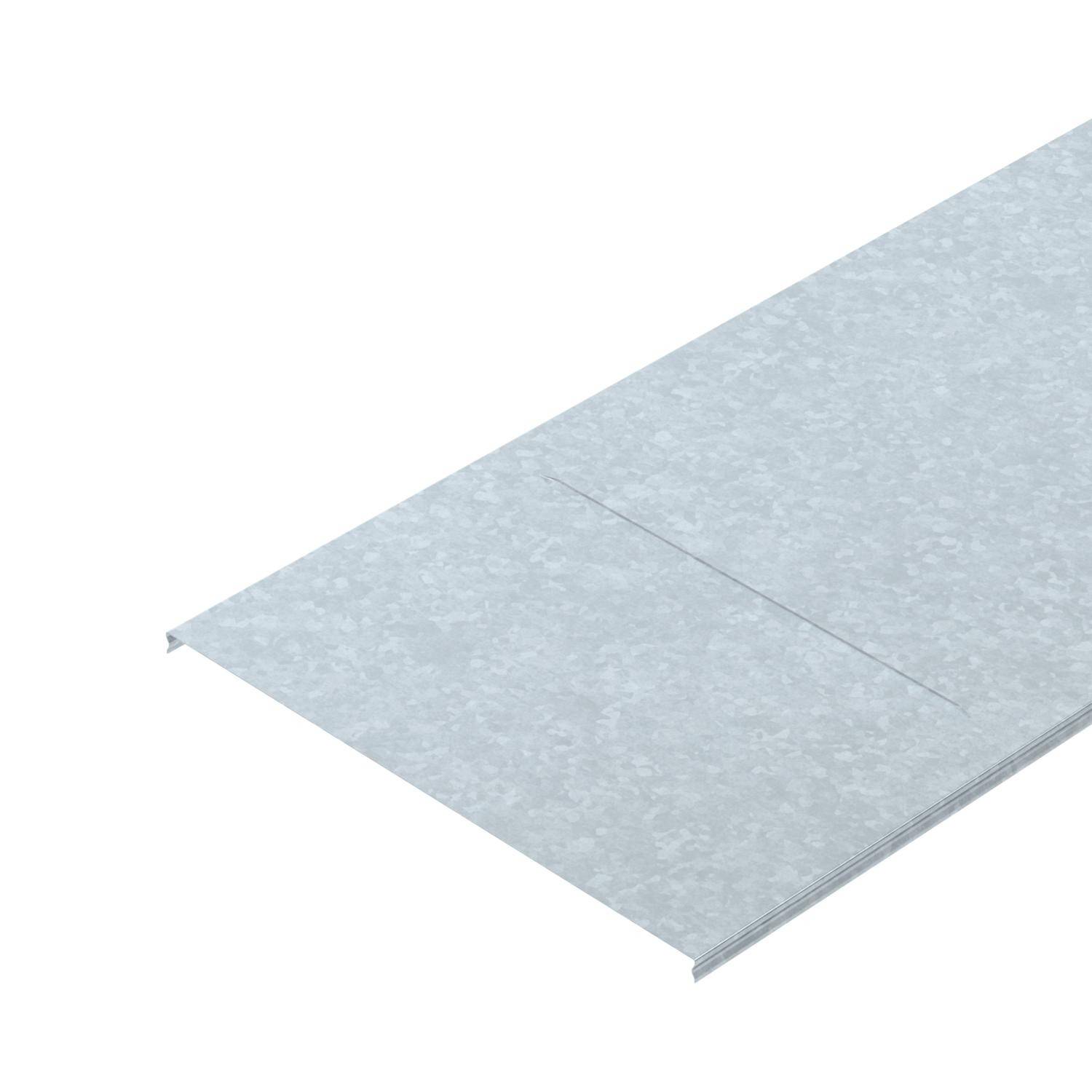

OBO Bettermann 6001830 Cover 3 m
EAN:
Part number:
Item no:
Technical specifications
- Upper section width 398 mm
- Material thickness 0.75 mm.
- Suitable for cable channel: No.
- Suitable for lattice truss channel: Yes
- Suitable for cable conductor: No.
- Length: 3000 mm
- Mounting type: Snap-in
- Suitable for functional preservation: No.
- Material: Steel
- Stainless steel, stained: No.
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Product type
Cover
- Component
Lid
- Supplied length
3000 mm
- Content
3 m
- Dim
(L x W) 3 m x 398 mm
- Length
3 m
- Width
398 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3407027 OBO Bettermann 6001830 Cover 3 m
Description
Lockable lid for mesh channels. Protects cables and wires from damages and impurities and humidity from above. Suitable for industrial areas such as machinery and equipment construction.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m coverage
