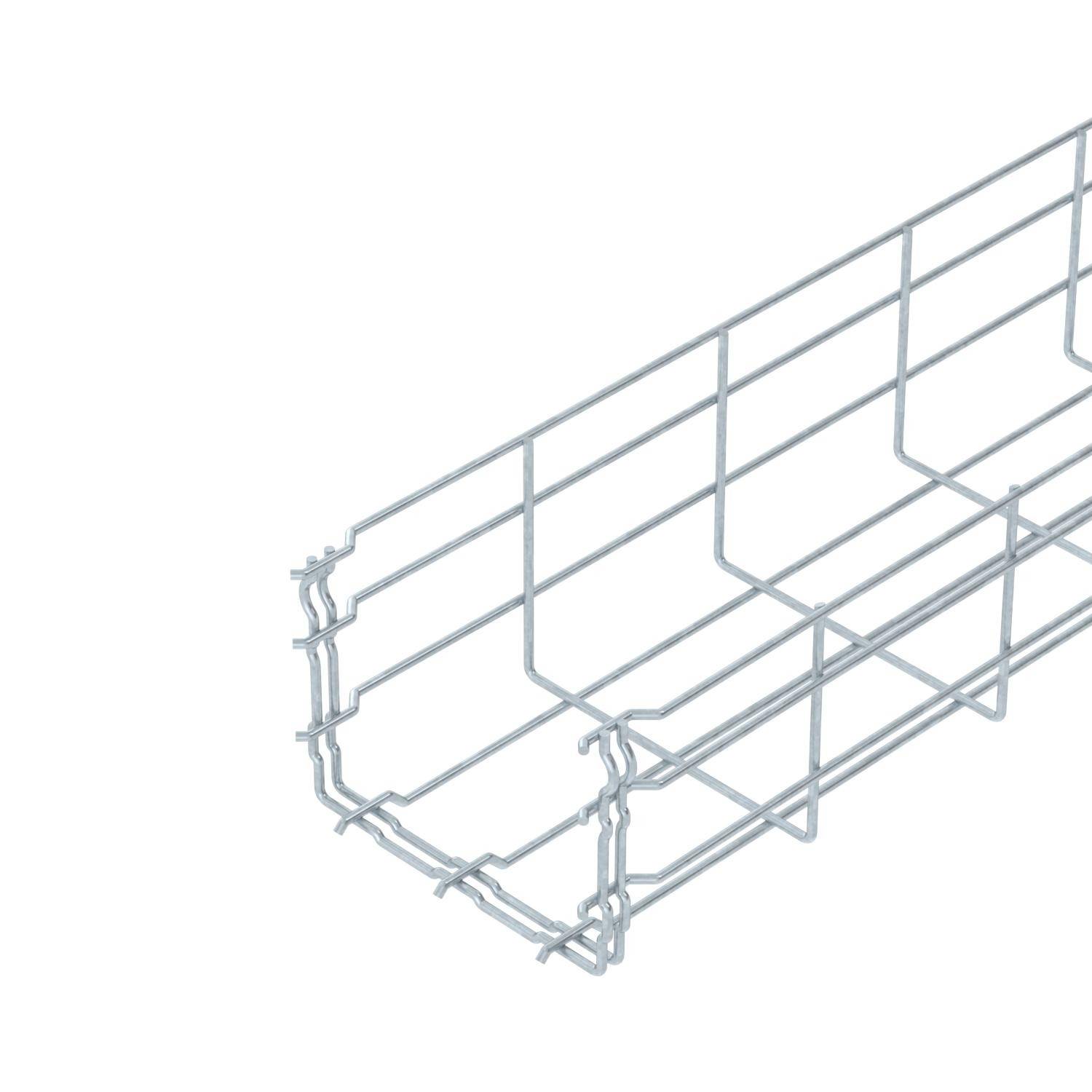

OBO Bettermann 6002433 Wire chute (L x W x H) 3 m x 150.00 mm x 105.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Profile shape: U-shape
- Height: 105 mm
- Width 150 mm
- Wire diameter 3.9 mm.
- Length: 3000 mm
- Usable cross-section: 13000 mm²
- Built: Built-in connector
- Screwless connectors: Yes
- Integrated partition: Without
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Colour: Other
- Load test type according to IEC 61537: Type II.
- Weighs 1.19 kg/m.
- Product type
Wire chute
- Type
Integrated connector
- Content
3 m

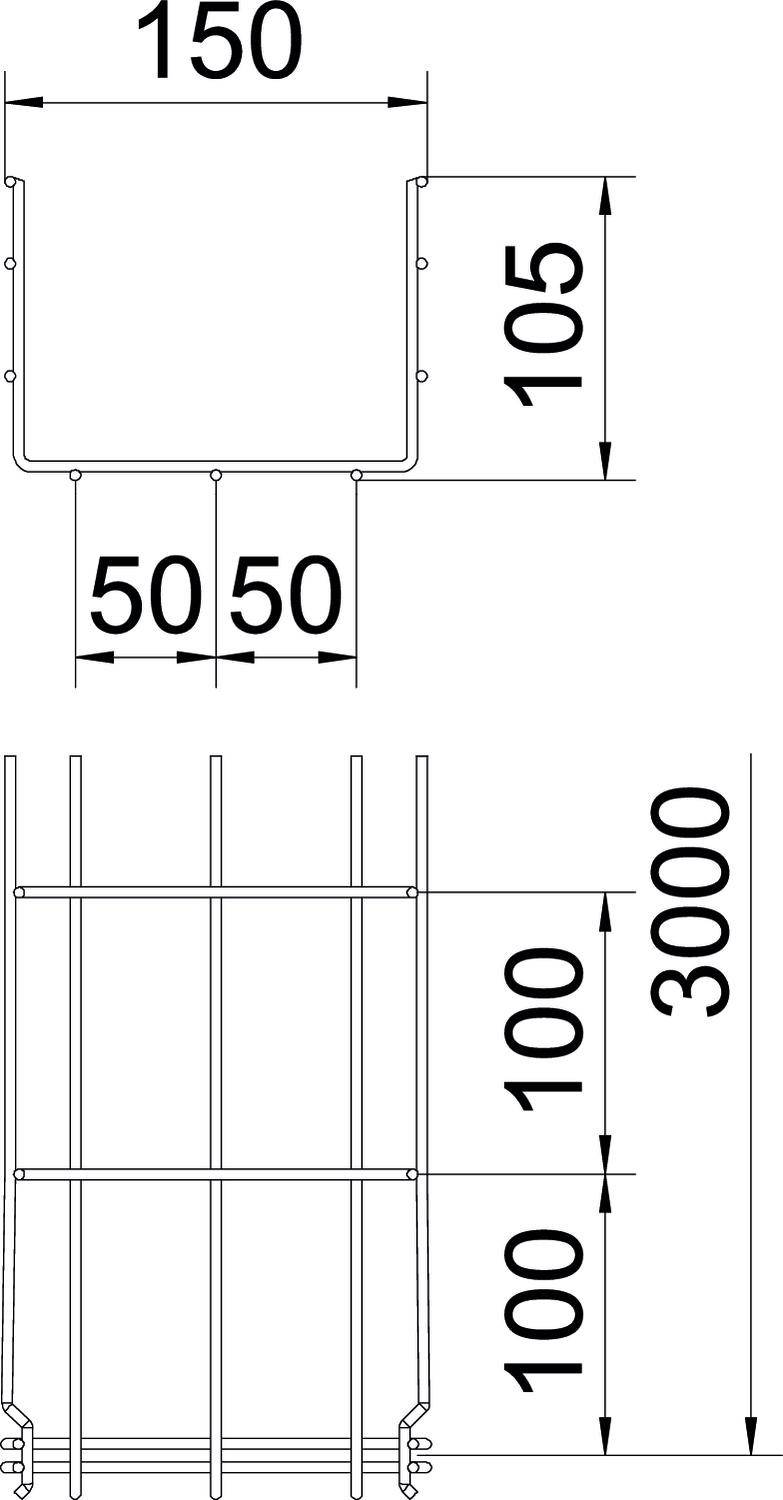

- Dim
(L x W x H) 3 m x 150.00 mm x 105.00 mm
- Length
3 m
- Width
150.00 mm
- Height
105.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406872 OBO Bettermann 6002433 Wire chute (L x W x H) 3 m x 150.00 mm x 105.00 mm 3 m
Description
Grisers fitted with integral connectors at the side height of 105 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Grid groove
