OBO Bettermann 6003625 Wire chute (L x W x H) 3 m x 200.00 mm x 105.00 mm 3 m
EAN:
Part number:
Item no:

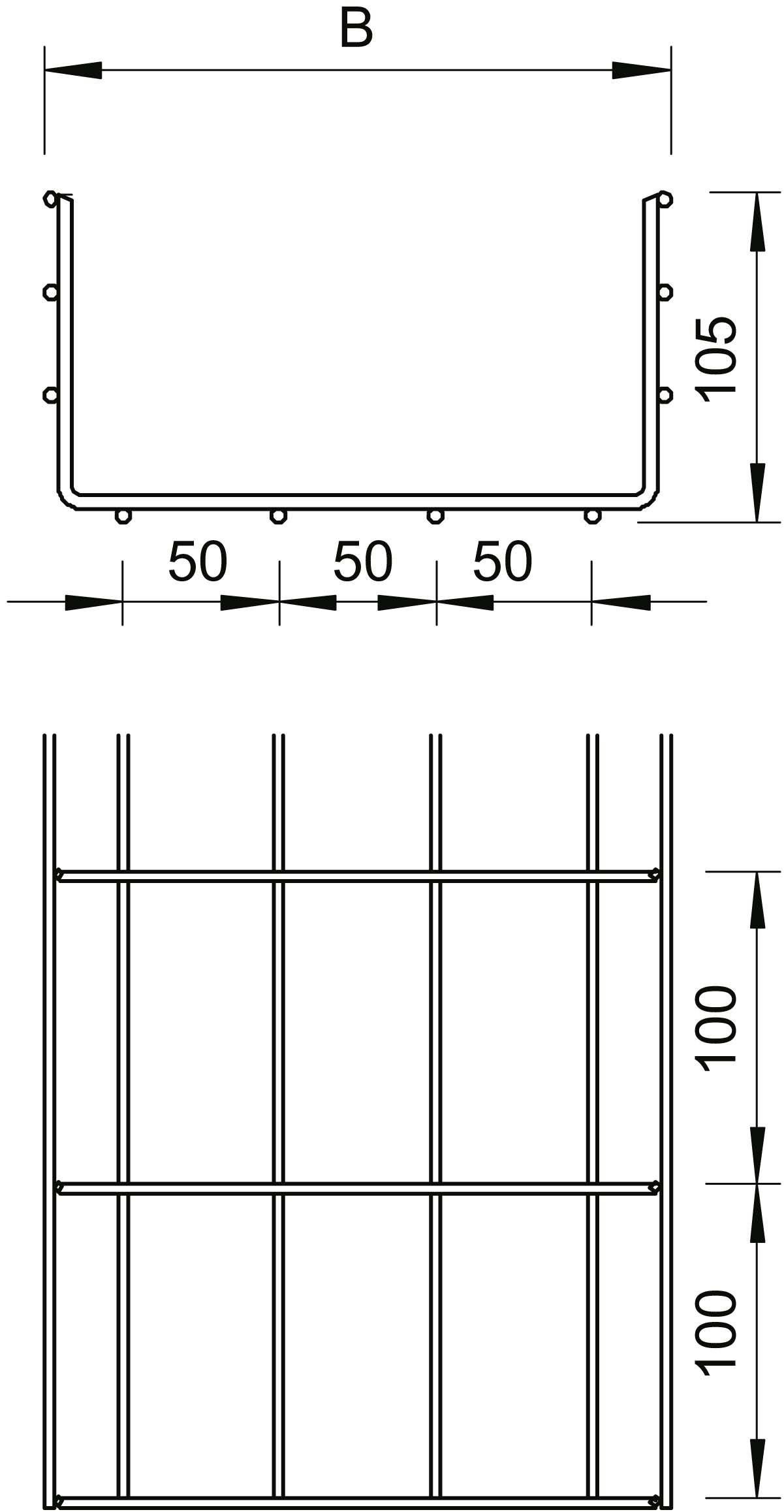

Technical specifications
- Profile shape: U-shape
- Height: 105 mm
- Width 200 mm
- Wire diameter 6 mm.
- Length: 3000 mm
- Usable cross-section: 17500 mm²
- Design: Without connectors
- Integrated partition: Without
- Material: Stainless steel
- Material quality: Stainless steel 304 (1.4301)
- Surface protection: Untreated
- Colour: Other
- Load test type according to IEC 61537: Type II.
- Weighs 2.96 kg/m.
- Product type
Wire chute
- Type
Without connectors
- Content
3 m
- Dim
(L x W x H) 3 m x 200.00 mm x 105.00 mm
- Length
3 m
- Width
200.00 mm
- Height
105.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406714 OBO Bettermann 6003625 Wire chute (L x W x H) 3 m x 200.00 mm x 105.00 mm 3 m
Description
Girder groove made from point-welded steel wires with side height 105 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Grid groove
