OBO Bettermann 6005568 Wire chute (L x W x H) 3 m x 50.00 mm x 75.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Profile shape: G-shape
- Height: 75 mm
- Width 50 mm
- Wire diameter 3.9 mm.
- Length: 3000 mm
- Usable cross-section: 2200 mm²
- Built: Built-in connector
- Screwless connectors: Yes
- Integrated partition: Without
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Stainless steel
- Material quality: Stainless steel 316 (1.4401)
- Surface protection: Untreated
- Colour: Other
- Load test type according to IEC 61537: Type II.
- Weighs 0.79 kg/m.
- Product type
Wire chute
- Type
Integrated connector
- Content
3 m
- Dim
(L x W x H) 3 m x 50.00 mm x 75.00 mm
- Length
3 m
- Width
50.00 mm
- Height
75.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406506 OBO Bettermann 6005568 Wire chute (L x W x H) 3 m x 50.00 mm x 75.00 mm 3 m
Description

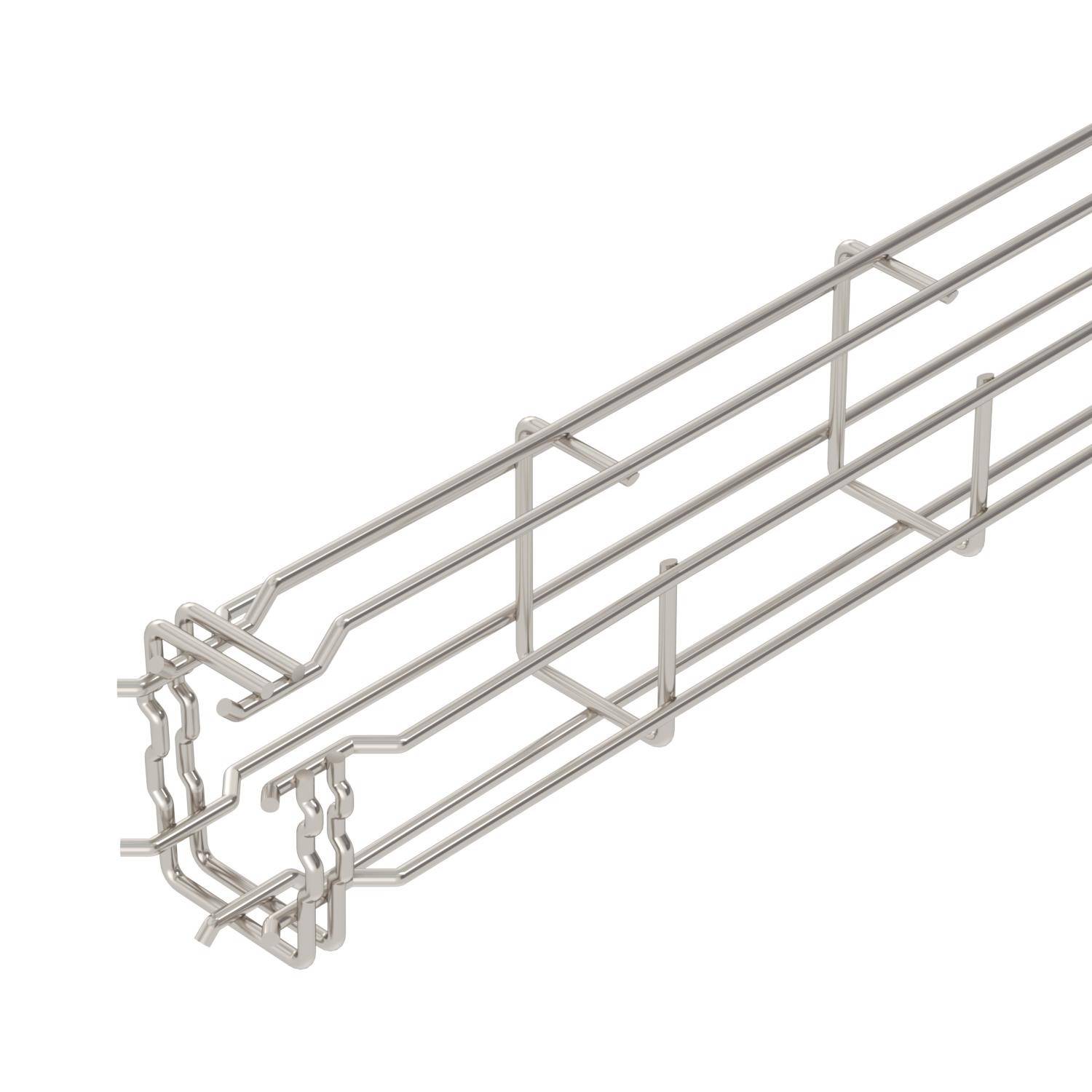

Grisly groove in the G-shape made from point welded steel wires with different side heights and widths.
Direct wall and ceiling mounting possible Load details for the different types of installation are available on request.
This text is machine translated.
Direct wall and ceiling mounting possible Load details for the different types of installation are available on request.
This text is machine translated.
Scope of delivery
- 1 x 3 m Grid groove
