OBO Bettermann 6017460 Wire chute (L x W x H) 3 m x 400.00 mm x 50.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Profile: C-shape
- Height: 50 mm
- Width 400 mm
- Wire diameter 4.5 mm.
- Length: 3000 mm
- Usable cross-section: 15700 mm²
- Design: Without connectors
- Screwless connector: No.
- Integrated partition: Without
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Colour: Other
- Load test type according to IEC 61537: Type II.
- Weighs 2.32 kg/m.
- Product type
Wire chute
- Type
Without connectors
- Content
3 m
- Dim
(L x W x H) 3 m x 400.00 mm x 50.00 mm
- Length
3 m
- Width
400.00 mm
- Height
50.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406473 OBO Bettermann 6017460 Wire chute (L x W x H) 3 m x 400.00 mm x 50.00 mm 3 m
Description

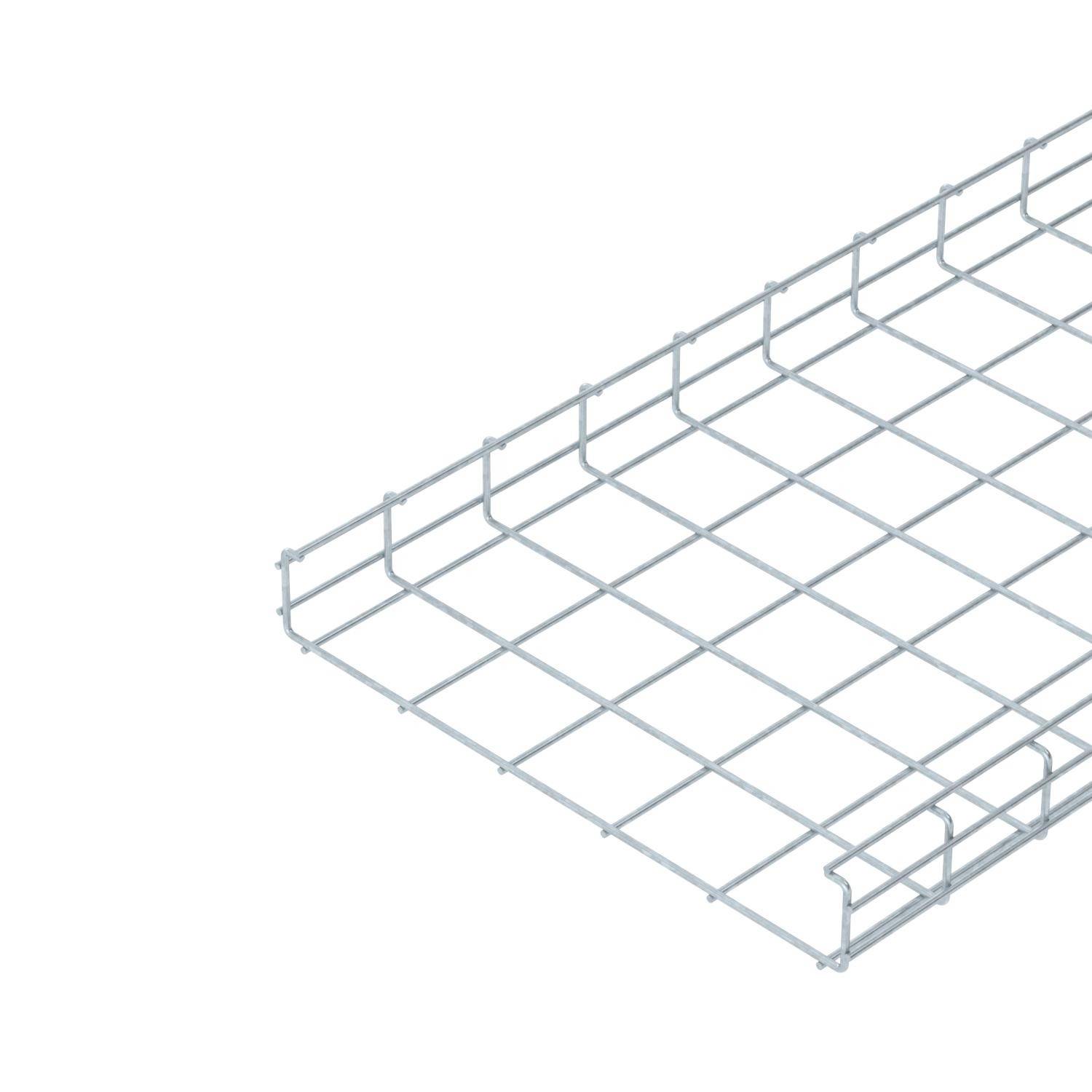

Girder groove in C-shape made from point-welded steel wires with side height 50 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Grid groove
