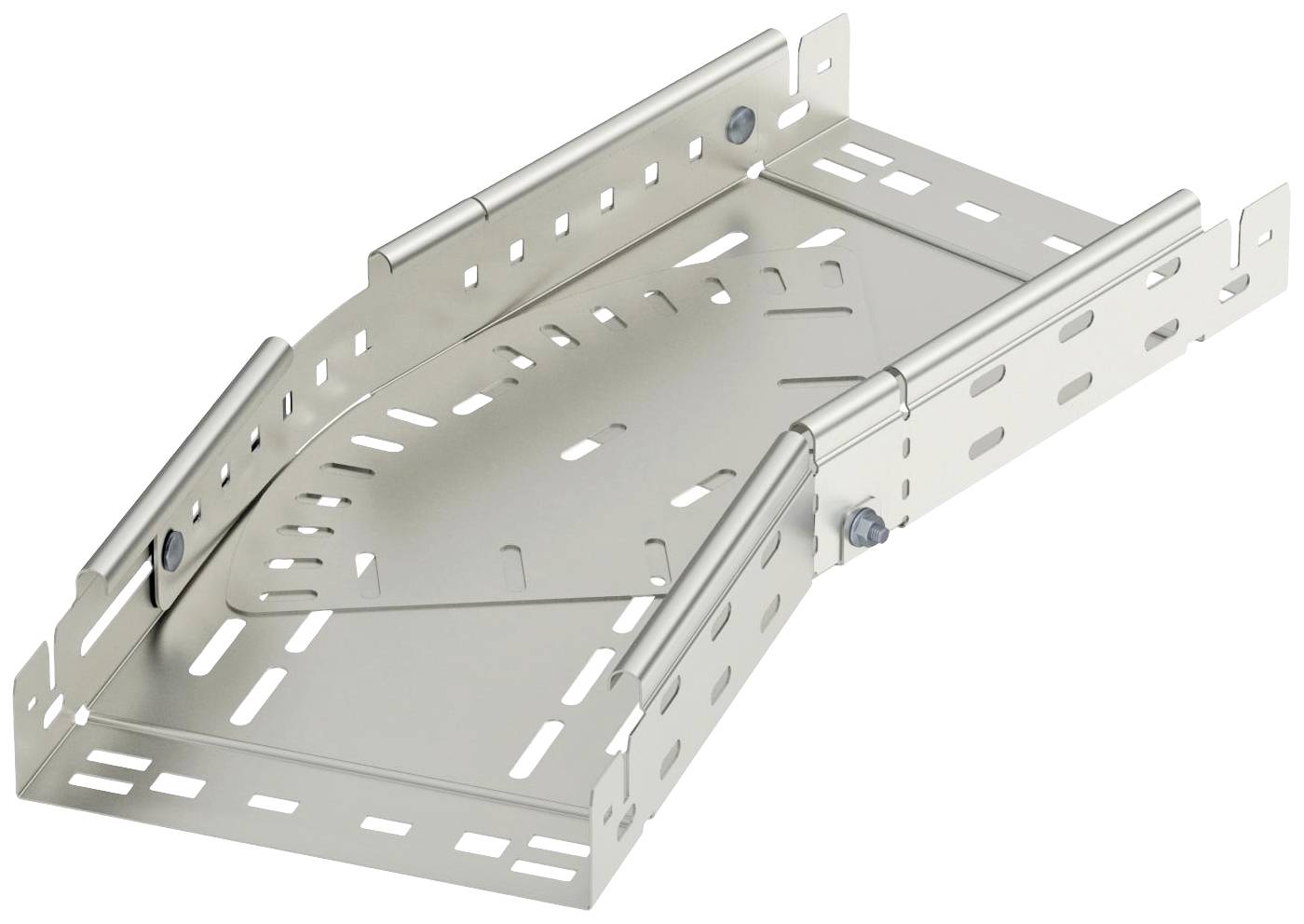

OBO Bettermann 6040520 Bend (W x H) 100 mm x 60 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Turn (angle) = adjustable
- Cable channels height = 60 mm
- Cable channels width = 100 mm
- Material thickness = 1 mm
- Side holes = Yes
- Mounting holes in the Ground = Yes
- Suitable for function receives = No
- Material = Steel
- Product type
Bend
- Component
Small angle bracket
- Content
1 pc(s)
- Factory colour
Metal

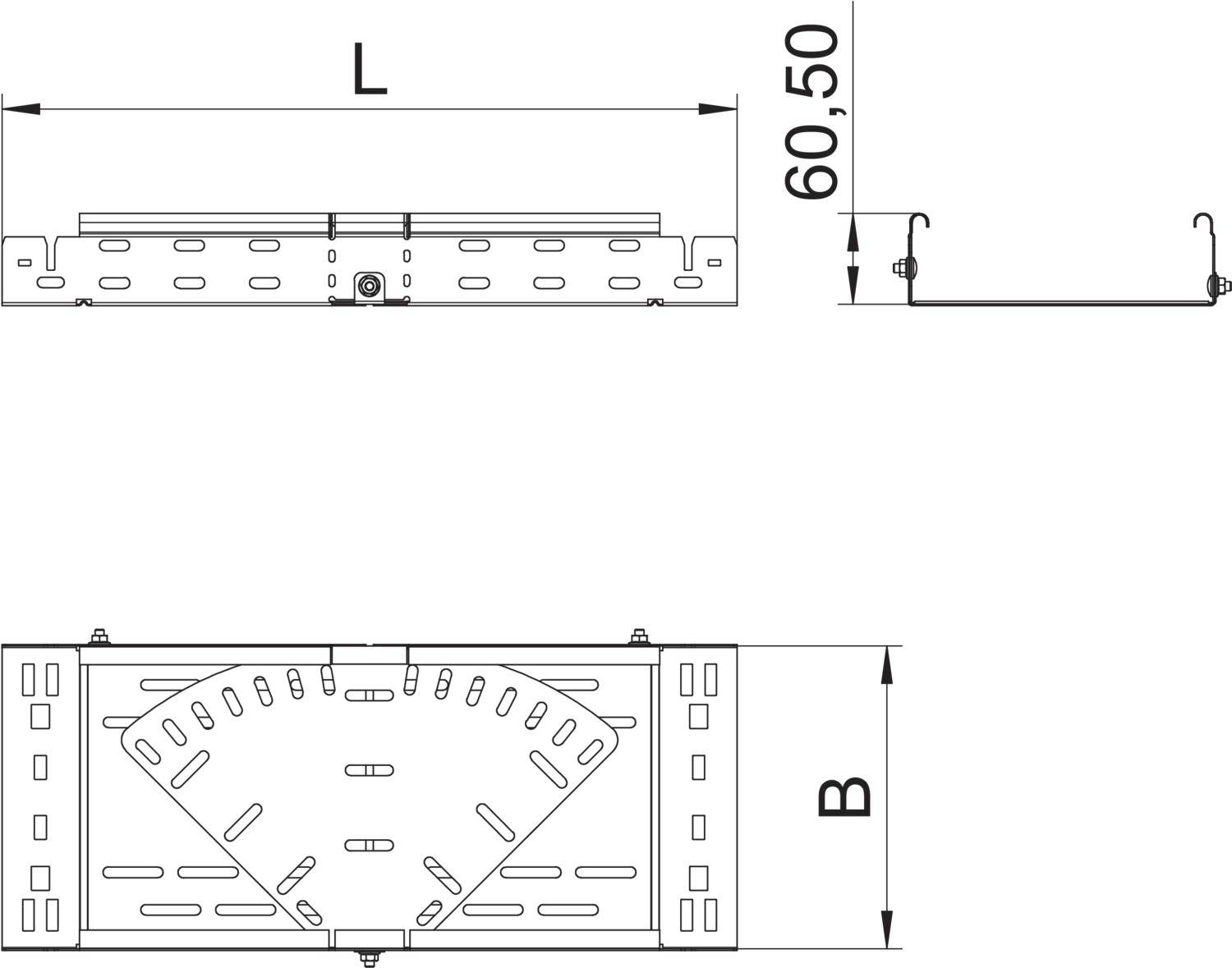

- Dim
(W x H x D) 100 x 60 x 60 mm
- Width
100 mm
- Height
60 mm
- Depth
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961937 OBO Bettermann 6040520 Bend (W x H) 100 mm x 60 mm 1 pc(s) Metal
Description
Sheet variable 0° - 90° with quick connection system is intended to be used as a complementary component for cable gutter system magic to consistently screw-less, time-saving and thus economic installation. The top is rolled side spar is used to amplify and as edge protection. The consistent equipotential bonding is without additional components is ensured.
