OBO Bettermann 6041202 Bend (W x H) 150 mm x 60 mm 1 pc(s) Metal

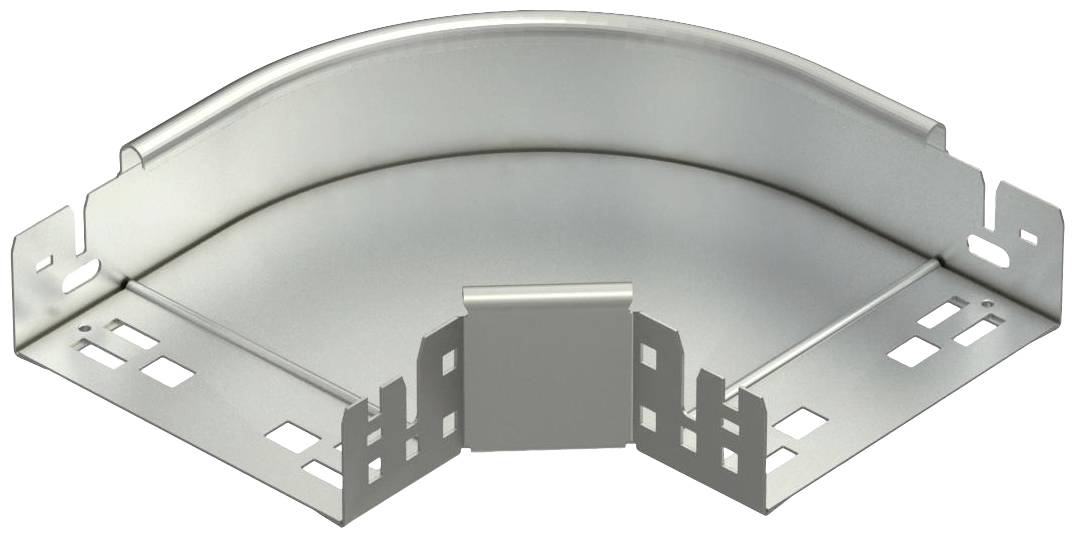

A metal cable trunking, curved in shape, with multiple mounting holes for installation; a functional component in electrical installation.

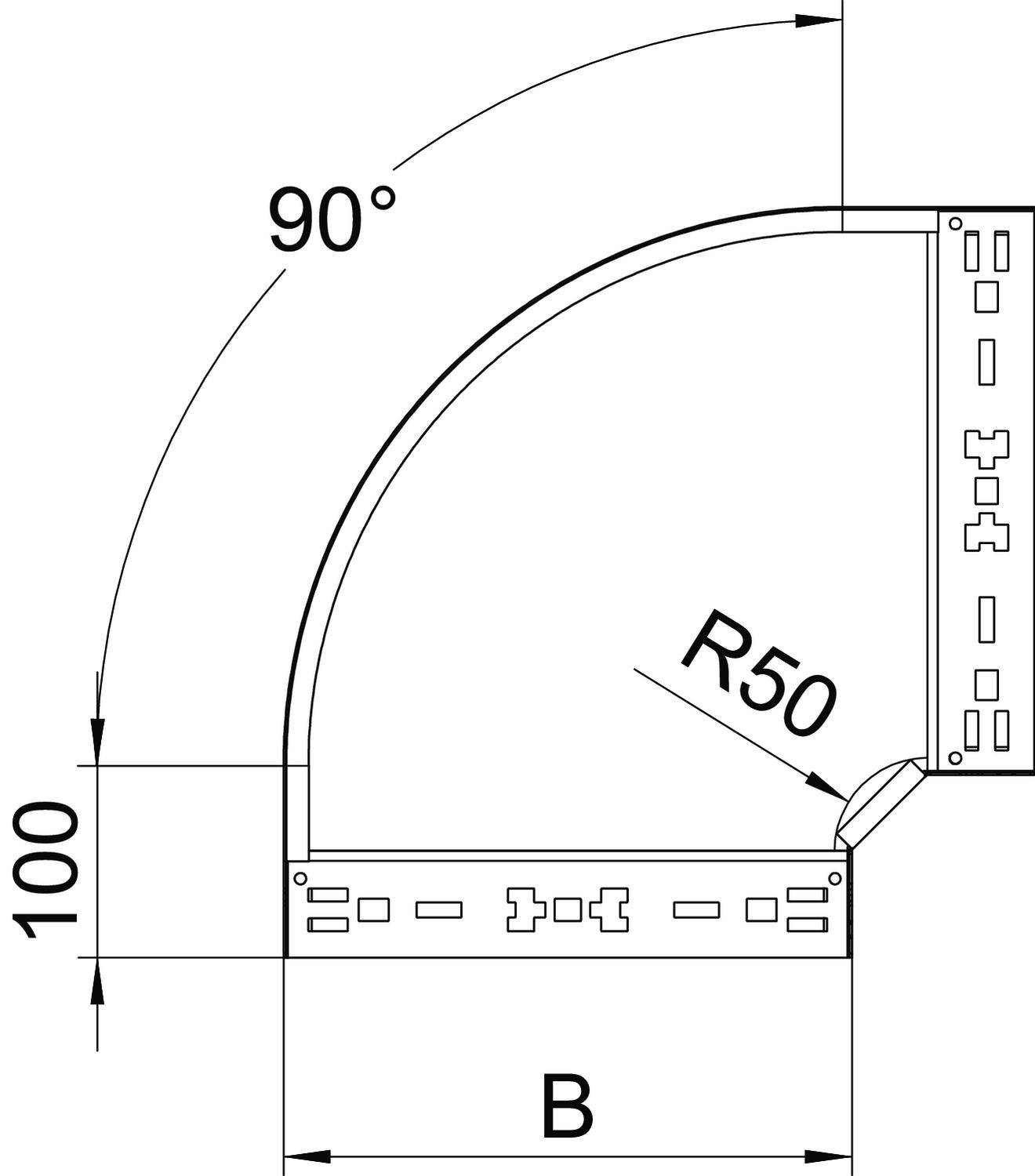

Diagram of a 90-degree angle connection with dimensions. '90°' is written at the top, 'R50' on the right. The vertical measurement of '100' indicates height.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Change the direction = horizontal
  • Turn (angle) = 90°
  • Cable channels height = 60 mm
  • Cable channels width = 150 mm
  • Material thickness = 1.25 mm
  • Side holes = No
  • Mounting holes in the Ground = No
  • NATO-Hole Pattern = No
  • Design = integrated connector
  • Wide clamping design = No
  • Suitable for function receives = No
  • Stainless steel
  • Stained = No
Product type

Bend

Component

Connector element

Content

1 pc(s)

Factory colour

Metal

Dim

(W x H) 150 mm x 60 mm

Width

150 mm

Height

60 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1964953 OBO Bettermann 6041202 Bend (W x H) 150 mm x 60 mm 1 pc(s) Metal

Description

Bow 90° with quick connection system. To the top side of the eingerollter spar to amplify and as edge protection.

This text is machine translated.
