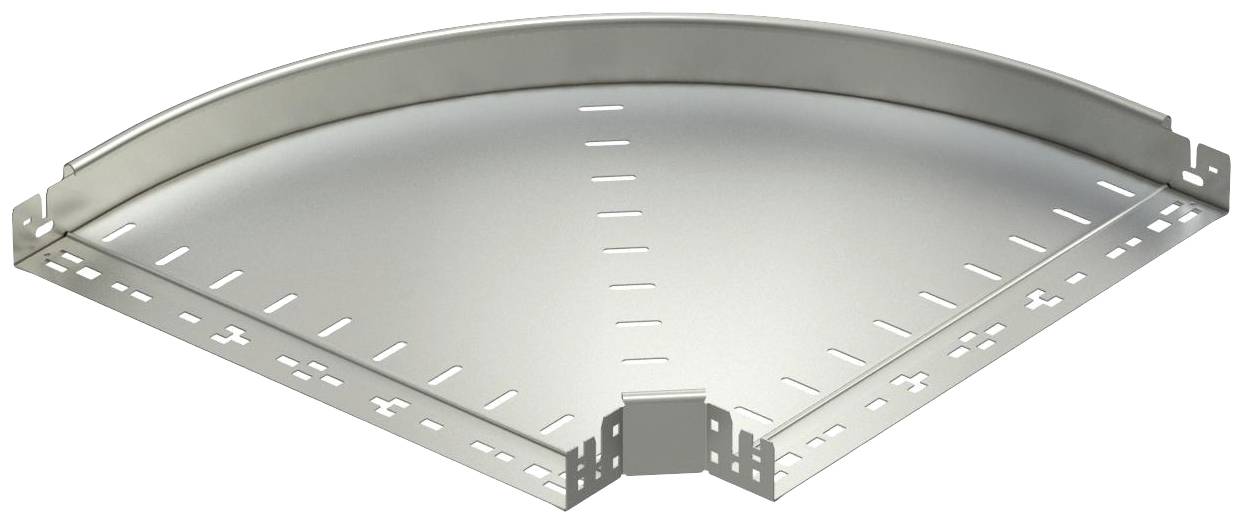

OBO Bettermann 6041210 Bend (W x H) 500 mm x 60 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Turn (angle) = 90°
- Cable channels height = 60 mm
- Cable channels width = 500 mm
- Material thickness = 1.25 mm
- Side holes = No
- Mounting holes in the Ground = No
- NATO-Hole Pattern = No
- Design = integrated connector
- Wide clamping design = No
- Suitable for function receives = No
- Stainless steel
- Stained = No
- Product type
Bend
- Component
Small angle bracket
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 500 mm x 60 mm
- Width
500 mm
- Height
60 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964964 OBO Bettermann 6041210 Bend (W x H) 500 mm x 60 mm 1 pc(s) Metal
Description
Bow 90° with quick connection system. To the top side of the eingerollter spar to amplify and as edge protection.
