OBO Bettermann 6041752 Bend (W x H) 200 mm x 110 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Turn (angle) = 45°
- Cable channels height = 110 mm
- Cable channels width = 200 mm
- Material thickness = 1.25 mm
- Side holes = No
- Mounting holes in the Ground = No
- NATO-Hole Pattern = No
- Design = integrated connector
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Surface = galvanised
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 200 mm x 110 mm
- Width
200 mm
- Height
110 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958197 OBO Bettermann 6041752 Bend (W x H) 200 mm x 110 mm 1 pc(s) Metal
Description

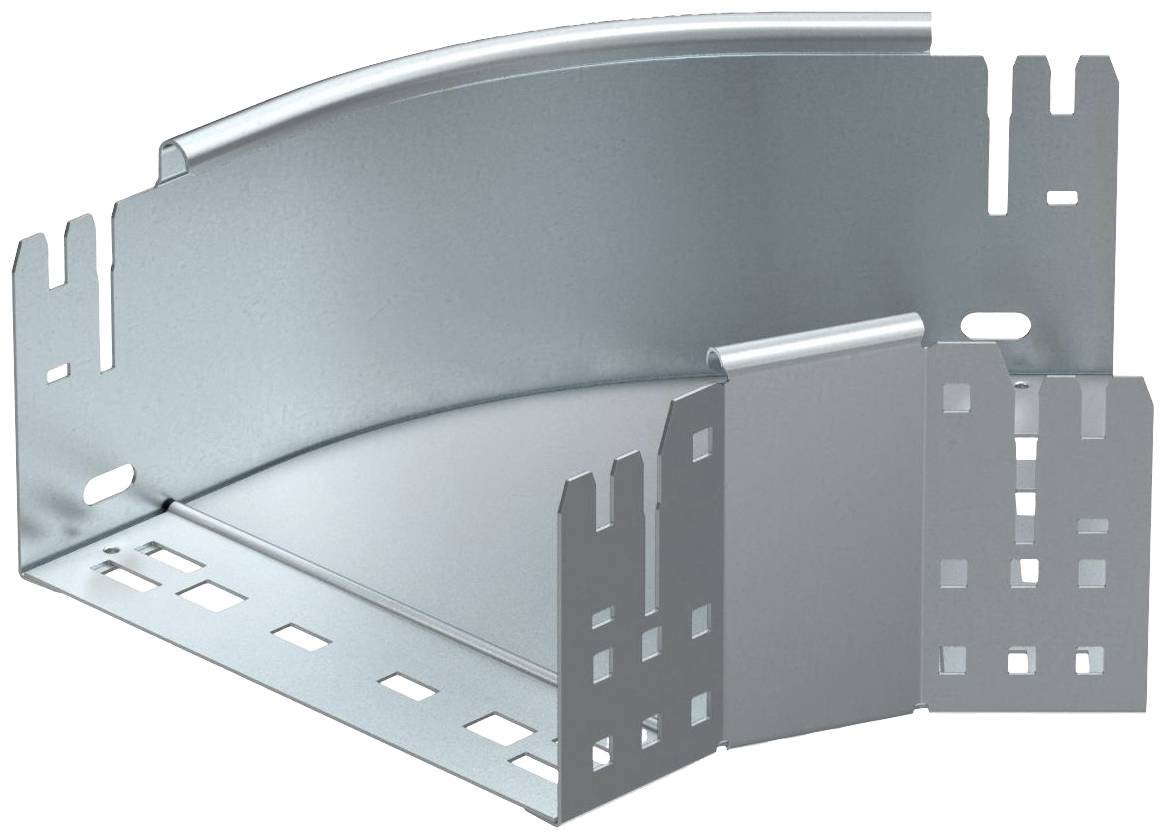

Elbow 45° with quick connection system. To the top side of the eingerollter spar to amplify and as edge protection.
