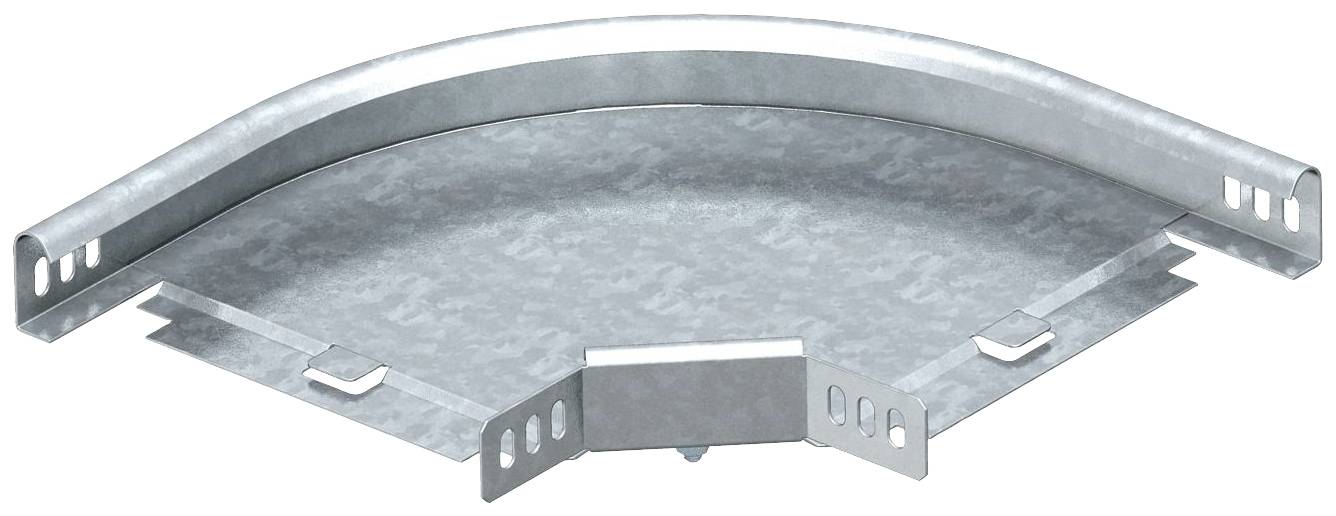

OBO Bettermann 6043123 Bend (W x H) 150 mm x 35 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Turn (angle) = 90°
- Inner radius = 50 mm
- Cable channels height = 35 mm
- Cable channels width = 150 mm
- Side holes = No
- Mounting holes in the Ground = No
- Version = without connector
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = galvanised
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H x D) 150 x 35 x 35 mm
- Width
150 mm
- Height
35 mm
- Depth
35 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958083 OBO Bettermann 6043123 Bend (W x H) 150 mm x 35 mm 1 pc(s) Metal
Description
According to DIN EN 10147, with a angle joints and screw type 12510/M6 x 12
